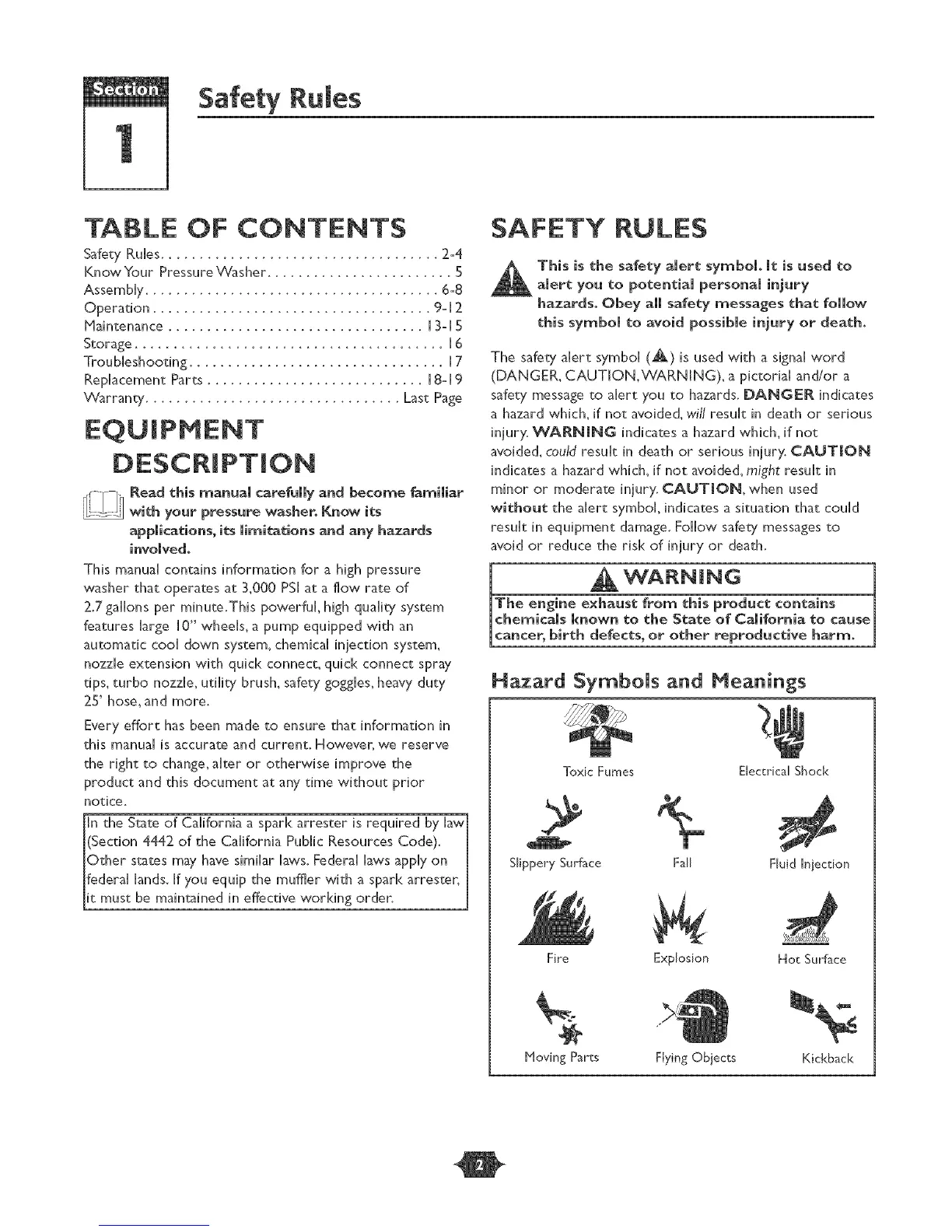

Troy-Bilt 20209 User Manual

Safety Rules
TABLE OF CONTENTS
Safety RuHes .................................... 2-4
Know Your Pressure _¢Vasher ........................ 5
AssembHy ...................................... 6-8
Operation .................................... 9- H2
Maintenance ................................. [ 3o[ 5
Storage ........................................ [6
TroubHeshoodng ................................. H7
Rephcement Parts ............................ [ 8- [9
'Warranty ................................. Last Page
EQUmPNENT
DESCRIPTmON
-] Read this manual carefully and become familiar
pressure washers Know its
J
with
...... your
applications, its [imitations a_d any hazards
involved.
This manua[ contains information for a high pressure
washer that operates at 3,000 PSI at a flow rate of
2.7 gallons per minute.This powerful high quaHity system
features large [0" wheels, a pump equipped with an
automatic cooH down system, chemicaH injection system,
nozzHe extension with quick connect, quick connect spray
tips, turbo nozzHe, utiHity brush, safety goggles, heavy duty
25' hose, and more.
Every effort has been made to ensure that information in
this manual is accurate and current. However, we reserve
the right to change, alter or otherwise improve the
product and this document at any time without prior
notice.
SAFETY RULES
This is the safety alert symbol, it is used to
alert you to potential persona[ injury
hazards. Obey a[[ safety messages that follow
this symbol to avoid possible iniury or death.
The safety alert symbol (_) is used with a signal word
(DANGER, CAUTION,VVARNING), a pictorial and/or a
safety message to alert you to hazards. DANG_:R indicates
a hazard which, if not avoided, will result in death or serious
injury. WARNING indicates a hazard which, if not
avoided, could result in death or serious injury. CAUTION
indicates a hazard which, if not avoided, might result in
minor or moderate injury. CAUTmON, when used
without the alert symbol indicates a situation that could
result in equipment damage. Follow safety messages to
avoid or reduce the risk of injury or death.
Hazard Symbols and Meanings
Toxic Fumes
Slipper 7 Surface
Fire
Fall
Explosion
Electrical Shock
Fluid Injection
Hot Surface
Moving Parts
FIying Objects
Kickback
4@
