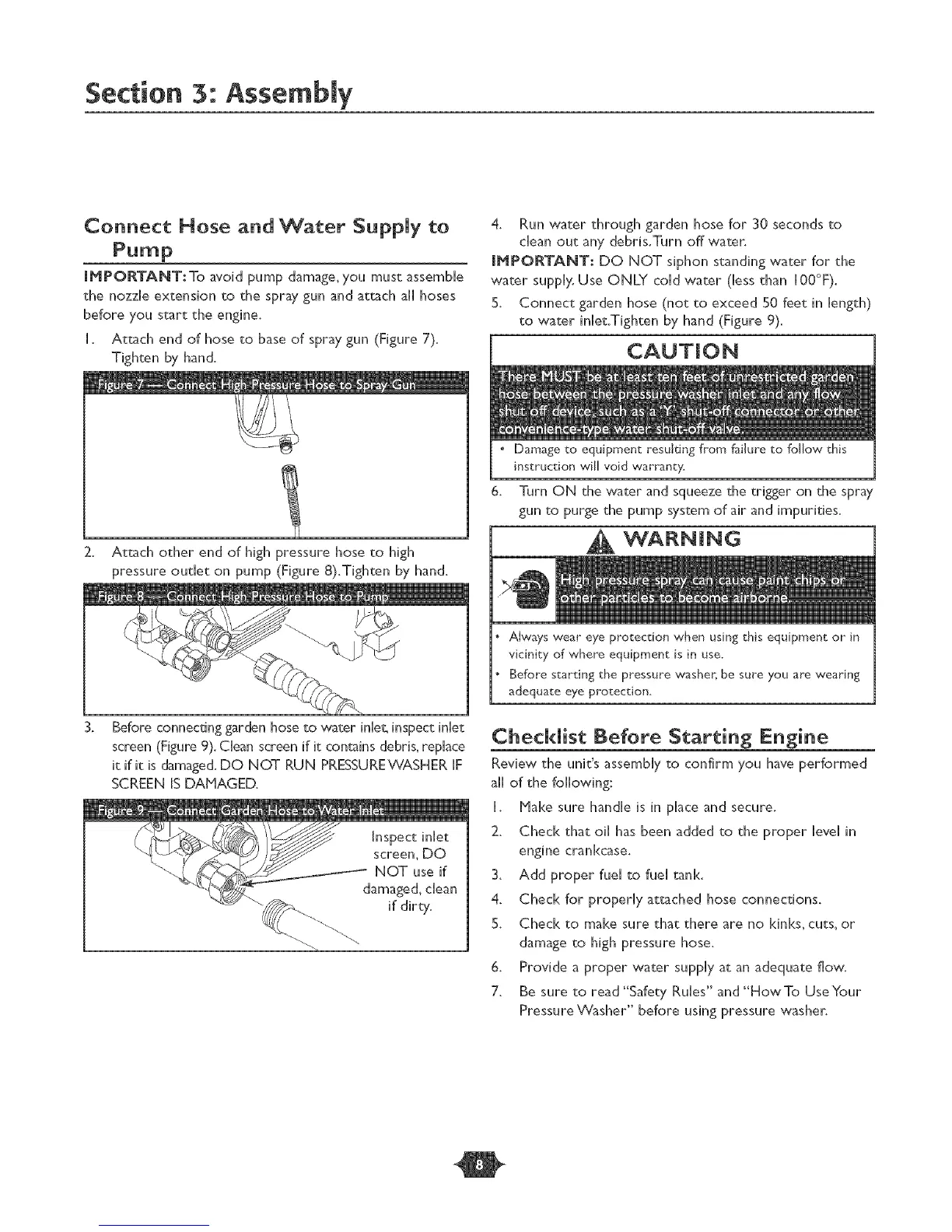

Section 3: Assemb(y
Connect Hose and Water Supp[y to
iMPORTANT:To avoid pump damage,you must assemble
the nozzle extension to the spray gun and attach all hoses
before you start the engine.
I. Attach end of hose to base of spray gun (Figure 7).
Tighten by hand.
2. Attach other end of hgh pressure hose to hgh
pressure outlet on pump (Figure 8).Tighten by hand.
Before connecting garden hose to water inlet, inspect inlet
screen (Figure 9). Clean screen if it contains debris, replace
it if it is damaged. DO NOT RUN PRESSUREWASHER IF
SCREEN IS DAHAGED.
4. Run water through garden hose for 30 seconds to
clean out any debris.Turn off water.
JMPOP_TANT: DO NOT siphon standing water for the
water supply. Use ONLY cold water (less than [00°F).
5. Connect garden hose (not to exceed 50 feet in length)
to water inlet.Tighten by hand (Figure 9).
• Damage to equipment resulting from failure to follow this
instruction will void warranty,,
6. Turn ON the water and squeeze the trigger on the spray
gun to purge the pump system of air and impurities.
WANNING
Always wear eye protection when using this equipment or in
vicinity of where equipment is in use.
Before starting the pressure washer, be sure you are wearing
adequate eye protection,
Checklist Before Start[n Eg g[ne
Review the unit's assemb(y to confirm you have performed
a(( of the following:
[. Make sure handle is in place and secure.
2. Check that oil has been added to the proper level in
engine crankcase.
3. Add proper fuel to fuel tank.
4. Check for properly attached hose connections.
5. Check to make sure that there are no kinks_ cuts_ or
damage to high pressure hose.
6. Provide a proper water supply at an adequate flow.
7. Be sure to read "Safety RuNes"and "HowTo UseYour
Pressure VVasher" before using pressure washer.
