Features and Controls

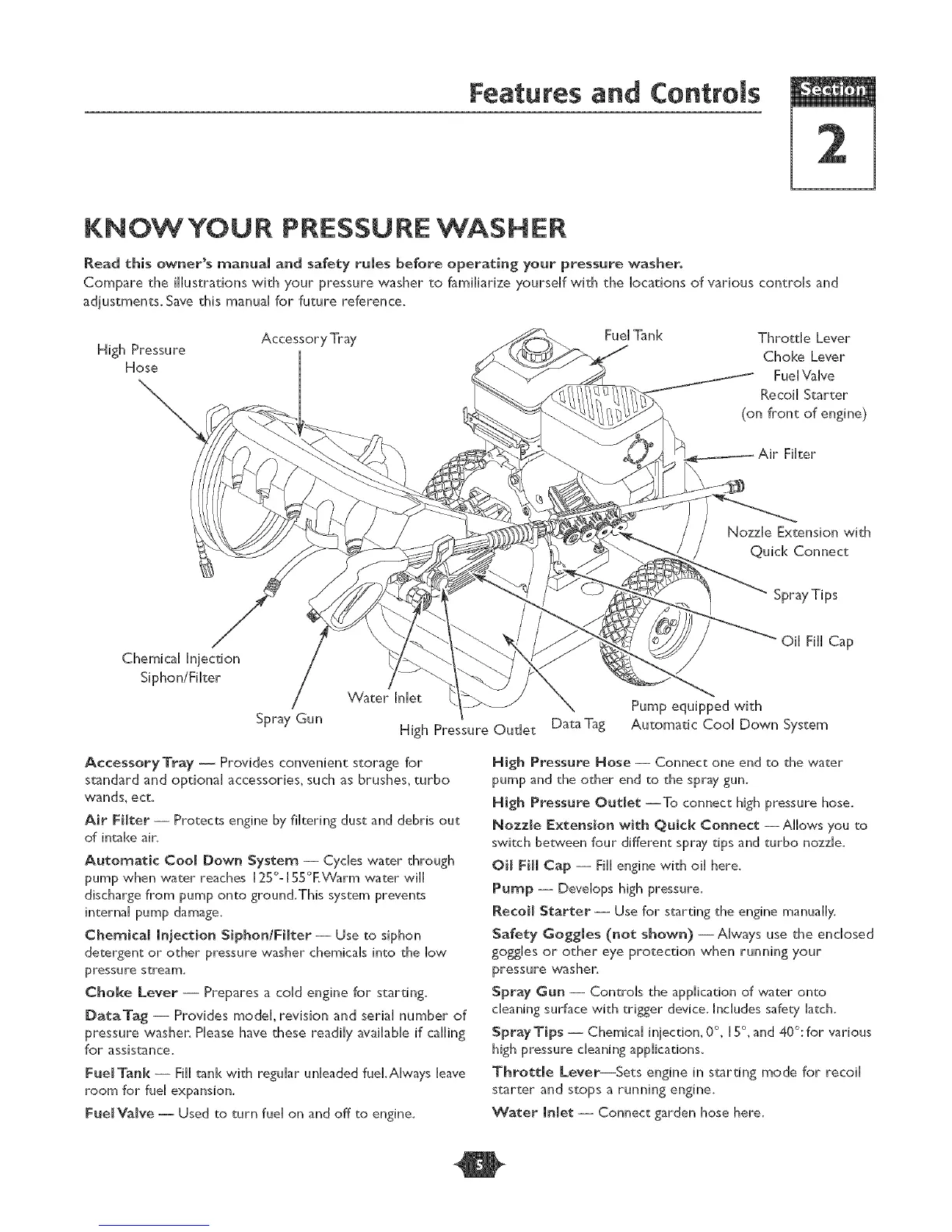

KNOWYOUR PRESSURE WASHER
Read this owner's manual and safety rules before operating your pressure washers
Compare the ilhstrations with your pressure washer to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference,
High Pressure
Hose
Accessory Tray Fuel Tank
Throttle Lever
Choke Lever
Fuel Valve
Recoil Starter
(on front of engine)
Air Filter
Nozzle Extension with
Quick Connect
SprayTips
Chemical Injection
Oil Fill Cap
VVater Inlet
/ Pump equipped with
Spray Gun
High Pressure Outlet DataTag Automatic Cool Down System
Accessory Tray -- Provides convenient storage for
standard and optional accessories, such as brushes, turbo
wands_ ect.
Air Filter -- Protects engine by filtering dust and debris out
of intake air_
Automatic Cool Down System -- Cycles water through
pump when water reaches [ 25 °° 155°EWarm water will
discharge from pump onto ground.This system prevents
internal pump damage,
Chemical Injection Siphon/Filter -- Use to siphon
detergent or other pressure washer chemicals into the low
pressure stream,
Choke Lever -- Prepares a cold engine for starting.
DataTag -- Provides model, revision and serial number of
pressure washer. Please have these readily available if calling
for assistance.
Fuel Tank -- Fill tank with regular unleaded fueLAIways leave
room for fuel expansion.
Fue[VaIve -- Used to turn fuel on and off to engine.
High Pressure Hose -- Connect one end to the water
pump and the other end to the spray gun.
Nigh Pressure Outlet --To connect high pressure hose.
Nozzle Extension with Quick Connect -- Allows you to
switch between four different spray tips and turbo nozzle.
Oil Fill Cap -- Fill engine with oil here.
Pump -- Develops high pressure.
[Recoil Starter -- Use for starting the engine manually.
Safety Goggles (not shown) --Always use the enclosed
goggles or other eye protection when running your
pressure washer.
Spray Gun -- Controls the application of water onto
cleaning surface with triger device. Includes safety latch.
Spray Tips -- Chemical iniection, 0°, [5 °, and 40°: for various
high pressure cleaning app[ications_
Throttle Lever--Sets engine in starting mode for recoil
starter and stops a running engine.
Water inlet -- Connect garden hose here.
To Next Page
