Moving the Tiller off the Shipping Platform

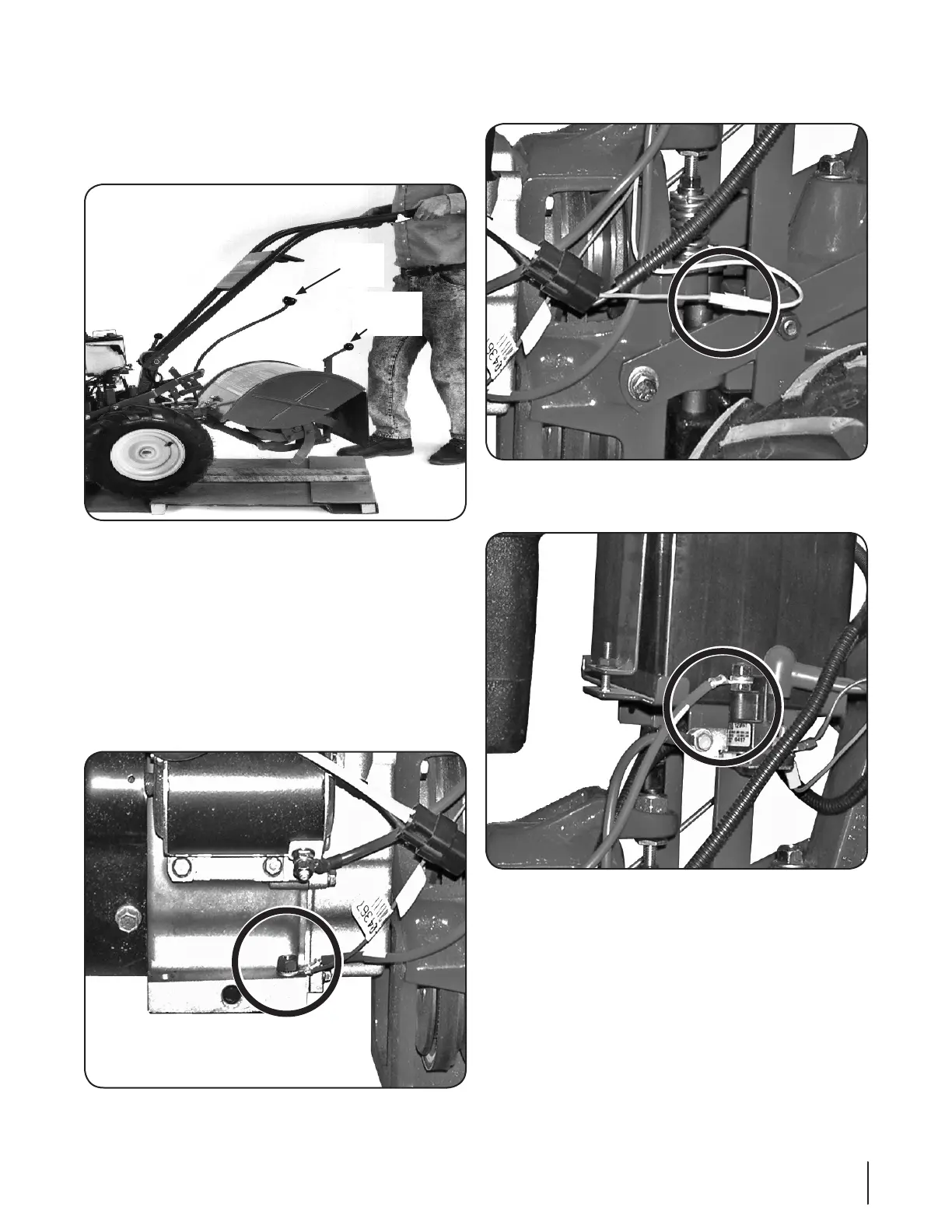

Set the Depth Regulator Lever to travel position. Do this
by lifting the tiller by the handlebars, then pulling straight
back on the lever and sliding down to the highest notched
setting. See Fig. 3-2.
Set the Wheel Speed Lever to the Freewheel position. To
do this, move the lever approximately halfway between
the Fast and Slow settings while you rock the tiller forward
and backward until the wheels move freely. See Fig. 3-2
Lift the Handlebars high enough to clear the tiller tines
and pull back firmly to dislodge the tiller from the platform
wheel wells.
Wire Harness
Ground the green (and red for electric start tillers) wire(s) to
the engine block. See Fig. 3-3.
1.
2.
3.
1.
Connect the safety wire assembly (green and yellow wires).
See Fig. 3-4.
Connect the tiller’s main harness connection to the neutral
safety switch receptacle. See Fig. 3-5.
2.
3.
Depth
Regulator
Lever
Wheel
Speed
Lever
Figure 3-2
Figure 3-3
Figure 3-4
Figure 3-5
7sectiOn 2 — asseMbly & set-up
