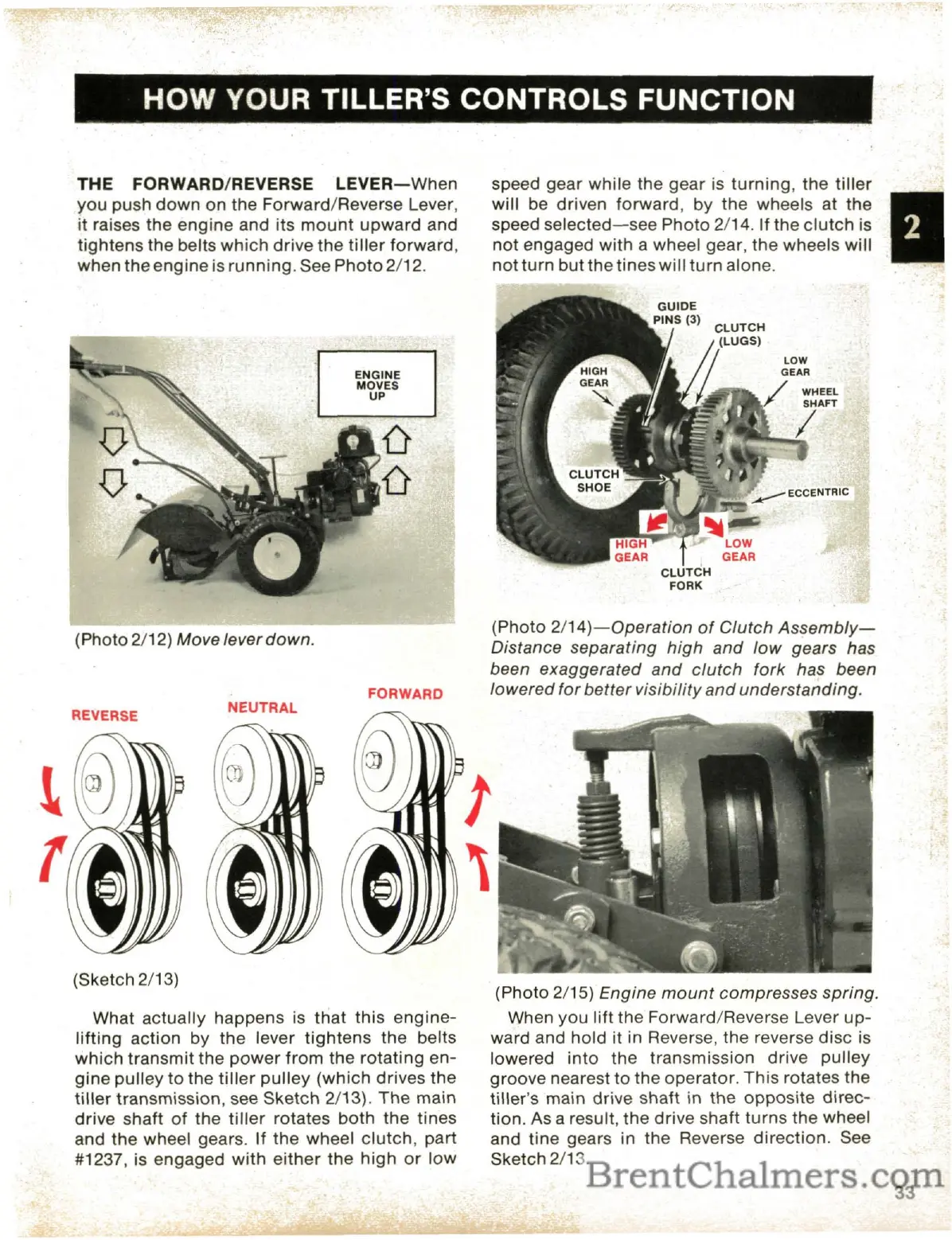

HOW YOUR TILLER'S CONTROLS FUNCTION
THE FORWARD/REVERSE
LEVER-When
you
push
down
on the Forward/Reverse Lever,
it
raises the engine and its
mount
upward
and
tightens
the belts
which
drive the
tiller
forward,
when the engine is running. See
2/12.
speed gear while the
gear
is
turning,
the
tiller
will be driven forward,
by
the
wheels at the
speed
selected-see
Photo 2/14. If the
clutch
is
not
engaged
with
a wheel gear, the wheels will
not
turn
but the tines will
turn
alone.
ENGINE
MOVES
UP
o
o
CLUTCH
FORK
LOW
GEAR
/
WHEEL
SHAFT
I
(Photo
2/14)-Operation
of
Clutch
Assembly-
Distance separating
high
and
low
gears has
been exaggerated
and
clutch
fork has been
lowered for bettervisibility
and
understanding.
(Photo 2/15) Engine
mount
compresses spring.
When
you
lift
the Forward/Reverse Lever
up-
ward and
hold
it
in Reverse, the reverse
disc
is
lowered
into
the transmission drive
pulley
groove nearest
to
the operator.
This
rotates the
tiller's main drive
shaft
in
the
opposite
direc-
tion. As a result, the drive shaft turns the wheel
and
tine
gears in the Reverse direction. See
Sketch 2/13.
t
,
FORWARD
NEUTRAL
(Photo 2/12) Move lever down.
What actually happens is
that
this
engine-
lifting
action by the lever
tightens
the belts
which
transmit
the
power
from the
rotating
en-
gine
pulley
to
the
tiller
pulley
(which drives the
tiller
transmission, see Sketch 2/13).
The
main
drive shaft
of
the
tiller
rotates
both
the
tines
and
the
wheel gears. If the wheel
clutch,
part
#1237, is engaged
with
either
the
high
or
low
(Sketch 2/13)
REVERSE
33
