Troy-Bilt Pro-Line CRT Service Manual

Troy-Bilt Small Frame Tillers
19

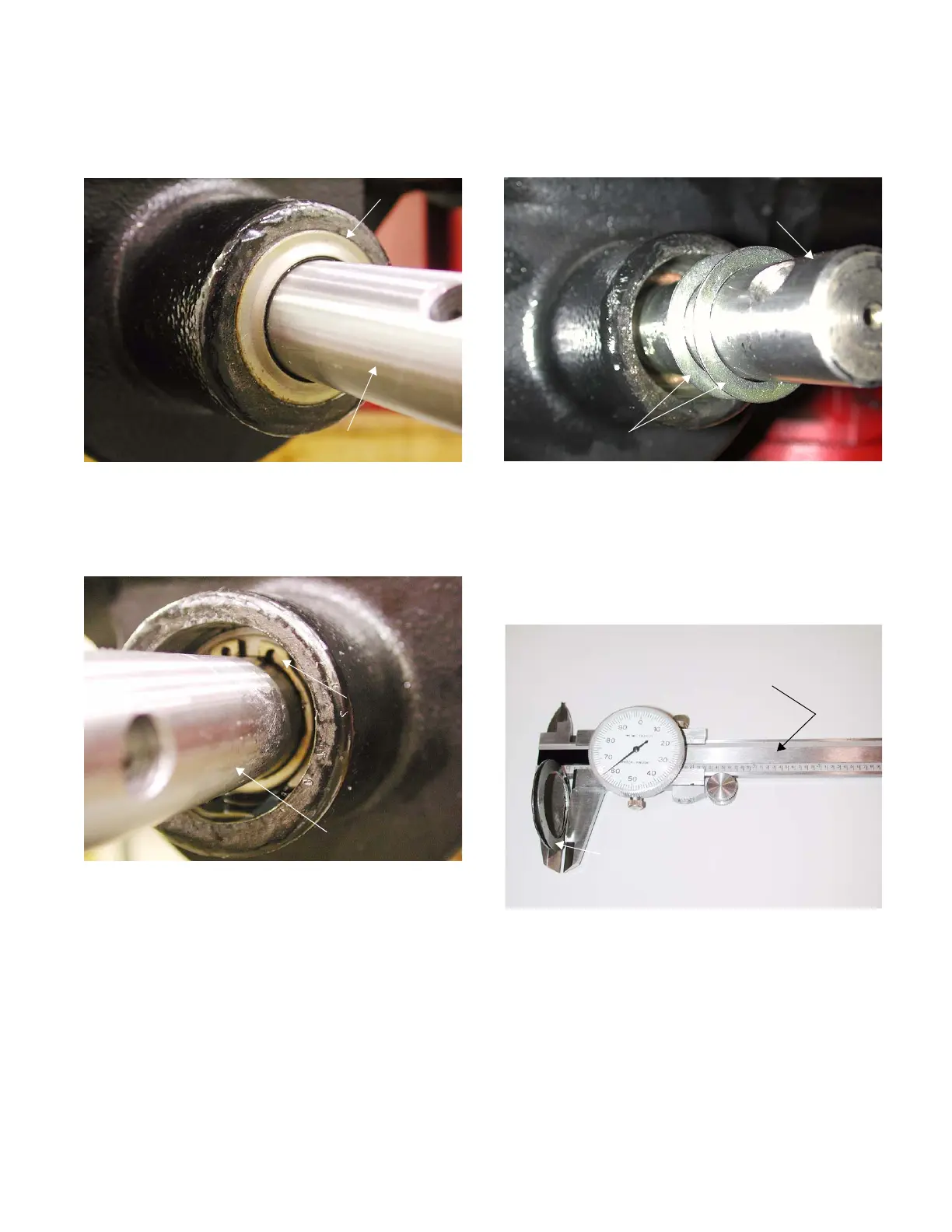

7.47. Remove the left and right tine shaft oil seals from
the transmission using an oil seal removal tool.
See Figure 7.47.
7.48. Remove the left and right retaining rings secur-
ing the tine shaft in position using medium
retaining ring pliers. See Figure 7.48.
Figure 7.47
Oil Seal
Tine Shaft
Figure 7.48
Retaining Ring
Tine Shaft
7.49. Remove the external shims from the right and
left hand sides of the tine shaft using a small
hook tool and a stick magnet. See Figure 7.49.
NOTE: Two paper clips with a small 90° bend at
the end works well for external shim removal.
7.50. Measure the overall thicknesses of the left and
right shim washers using a dial caliper. See Fig-
ure 7.50.
7.51. Record the overall thicknesses of the shim
washers, Right _____, Left _____.
Figure 7.49
External Shims
Tine Shaft
Figure 7.50
Dial Caliper
Shims
