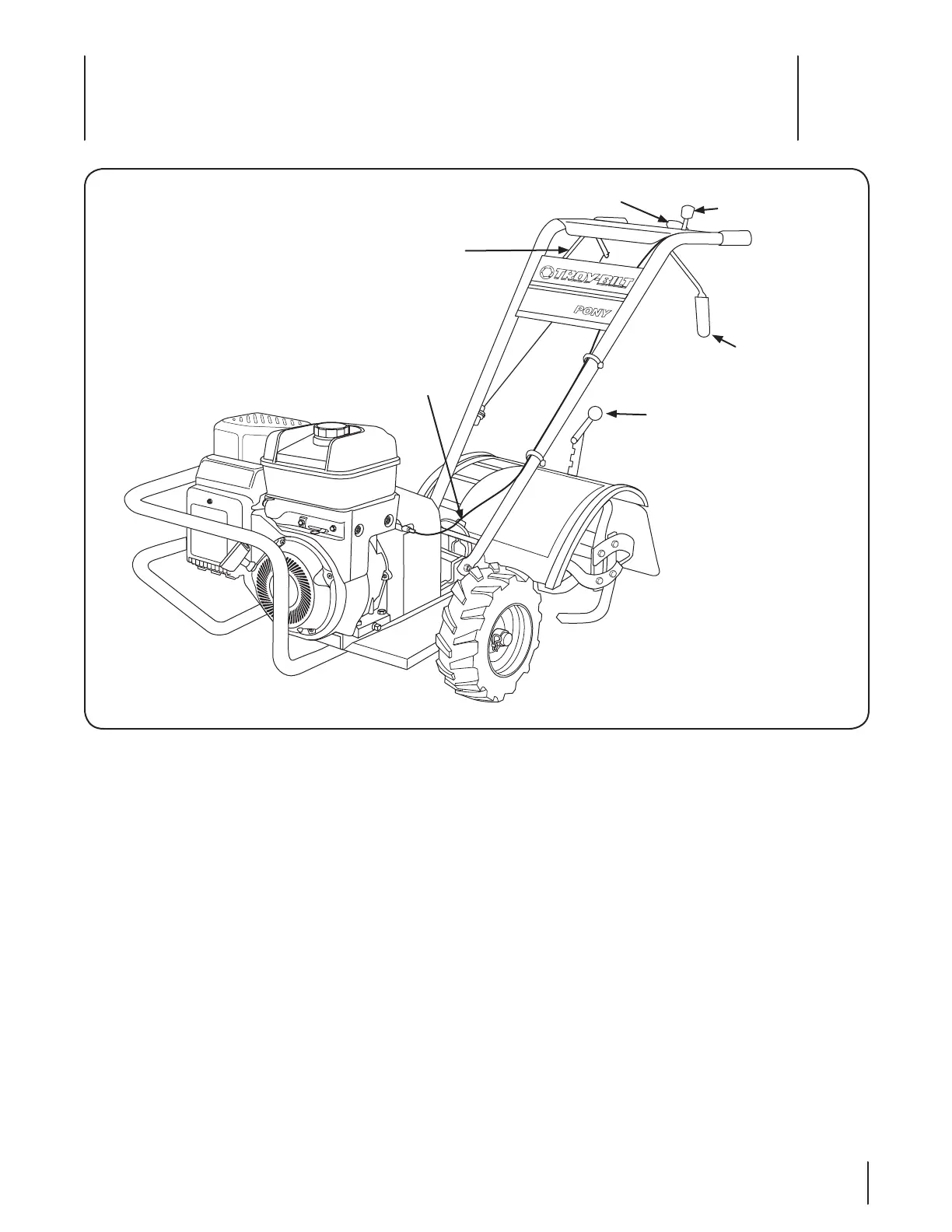

Controls & Features
4
11
Handlebar Height
Adjustment Screw
Depth
Regulator
Lever
Forward Clutch
Control Lever
Wheel Gear Lever
Reverse Clutch Control
Forward Clutch
Control Lever
NOTE: For detailed information on all engine controls, refer to
the separate Engine Operator’s Manual.
Forward Clutch Control
The two interconnected levers control the engagement of
forward drive to the wheels and tines.
Wheel Gear Lever
This lever has two positions: ENGAGE and DISENGAGE.
Reverse Clutch Control
The Reverse Clutch Control controls the engagement of reverse
drive to the wheels and tines.
Depth Regulator
The Depth Regulator lever controls the tilling depth of the tines.
Pull the lever straight back and slide it up or down to engage the
notched height settings.
Handlebar Height Adjustment Screw
Handlebar Height is adjustable to four different settings. When
setting the height keep in mind that the handlebars will be lower
when the tines are engaged in the soil.
