Troy-Bilt Pro-Line FRT - Tilling Patterns; Seedbed Tilling Patterns; Crosswise Tilling Patterns; Cultivation Row Spacing

Section 5 — operation 15
Suggested tilling patterns

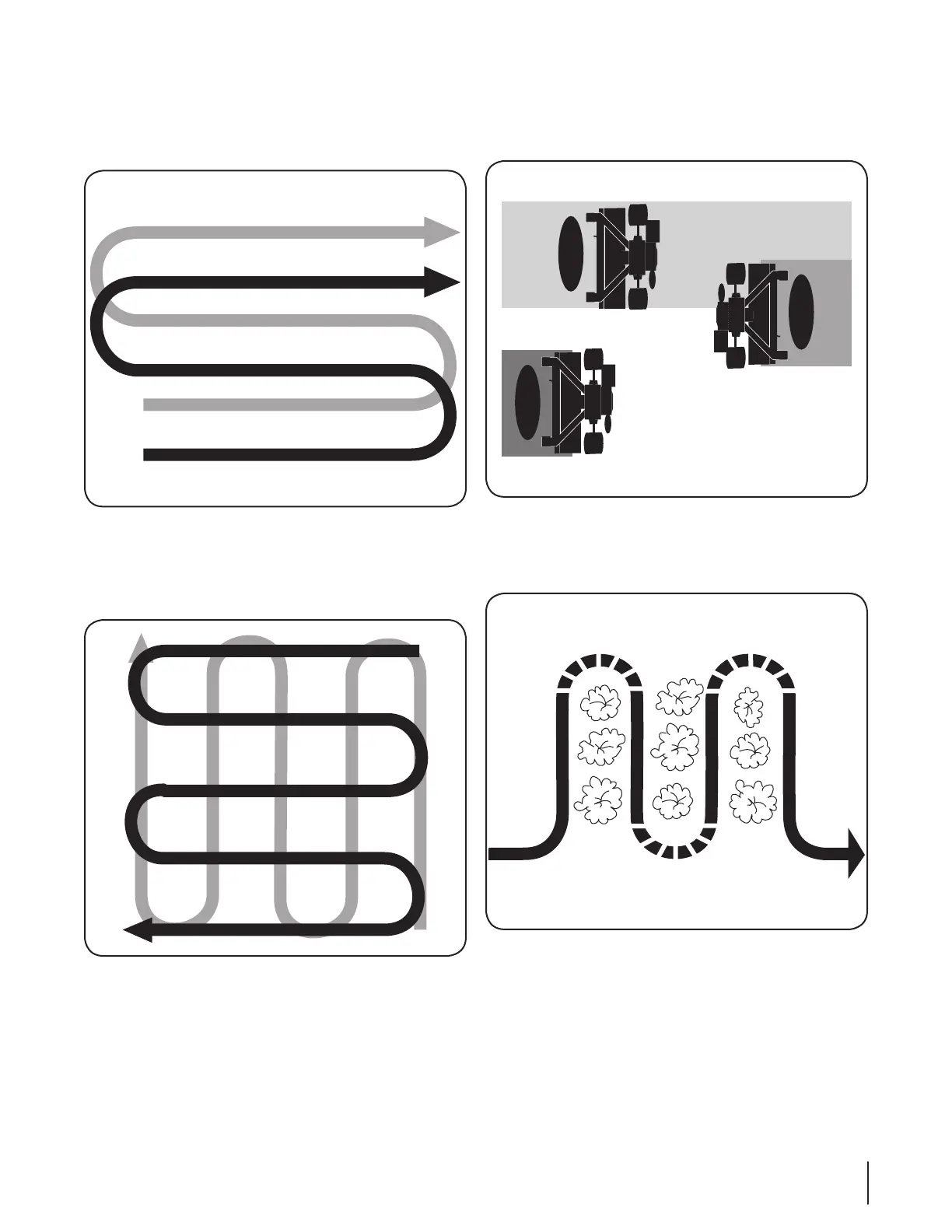

• When preparing a seedbed, go over the same path twice in
the first row, then overlap one-half the tiller width on the
rest of the passes. See Figure 5-5.
Figure 5-5
• When finished tilling in one direction, make a second pass
at a right angle as shown in Figure 5-6. Overlap each pass
for the best results. In very hard ground it may take three or
four passes to thoroughly pulverize the soil.
Figure 5-6
• If the garden size will not permit lengthwise and then
crosswise tilling, then overlap the first passes by one-half
a tiller width, followed by successive passes at one-quarter
width See Figure 5-7.
1
2
3
Figure 5-7
• With planning, you can allow enough room between rows
to cultivate. See Figure 5-8. Leave room for the hood width,
plus enough extra room for future plant growth.
Figure 5-8
