34 Parts List
Models 664D, 665B & E666M

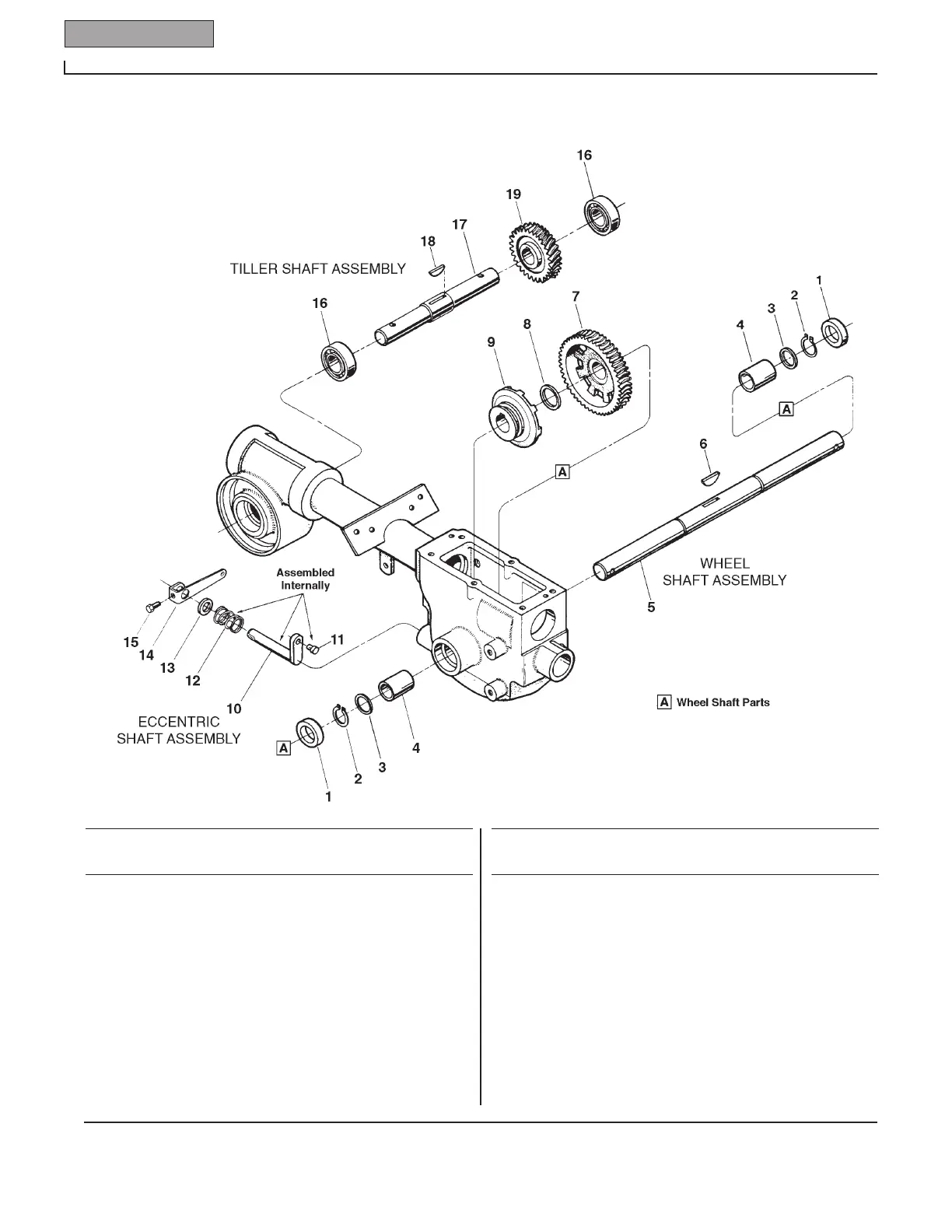

WHEEL SHAFT, ECCENTRIC SHAFT and TILLER SHAFT ASSEMBLIES
REF. PART
No. No. DESCRIPTION QTY.
REF. PART
No. No. DESCRIPTION QTY.
1 721-04031 Oil Seal.............................................. 2
2 1909950 Retaining Ring (heavy-duty, external) 2
3 GW-1166-1 Shim, 1-1/64 I.D., .062" thick ............ A/R
--- GW-1166-2 Shim, as above, but .030" thick ......... A/R
--- GW-1166-3 Shim, as above, but .015" thick ......... A/R
--- GW-1166-4 Shim, as above, but .010" thick ......... A/R
4 GW-1086 Bushing............................................. 2
5 711-04091 Wheel Shaft....................................... 1
6 GW-9373 Hi-Pro Key, 1/4 x 1-5/16.................... 1
7 GW-20914 Wheel Drive Worm Gear (cast-iron) .. 1
8 GW-9935 Shim (between key and gear),
1.016 I.D. x 1.468 O.D. x .062
Thick.............................................. 1
9 GW-20712 Wheel Drive Clutch (cast-iron) .......... 1
10 611-04002 Eccentric Shaft .................................. 1
11 GW-1442 Pin, Eccentric Shaft ........................... 1
12 GW-9055 Spring ............................................... 1
13 721-04034 Oil Seal.............................................. 1
14 786-04001 Eccentric Shaft Lever......................... 1
15 710-3013 Hex Hd. Screw, 1/4-20 x 1/2* ........... 1
16 741-3037 Ball Bearing ....................................... 2
17 711-04080 Tiller Shaft......................................... 1
18 GW-1104 Woodruff Key, 1/4 x 1-1/4................. 1
19 GW-20913 Tiller Drive Worm Gear (bronze) ....... 1
* Specify GRADE 5 if ordering part locally.
A/R - As Required
