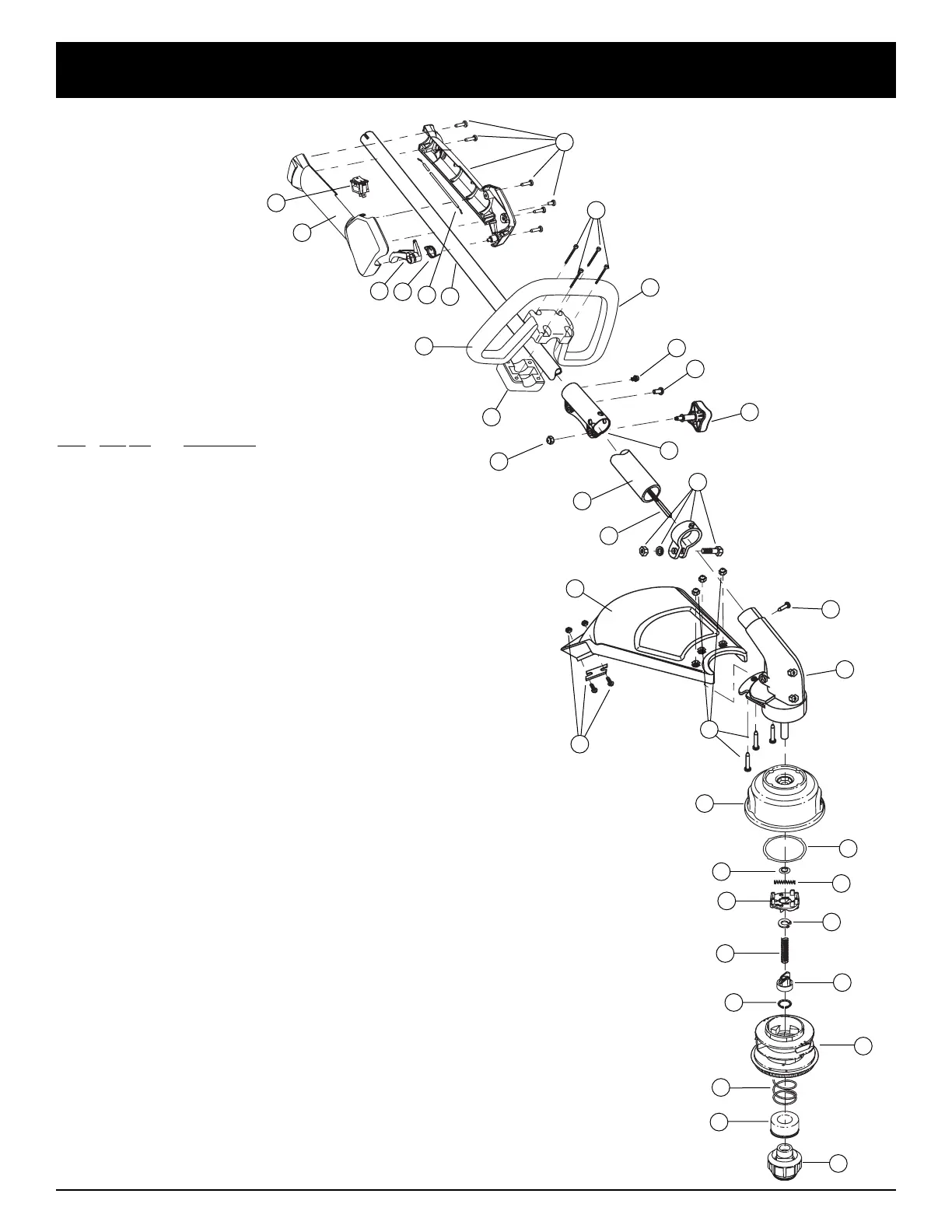

TB75SS PARTS LIST
BOOM & TRIMMER PARTS -
MODEL TB75SS
2 CYCLE TRIMMER
Item Part No. Description
1 753-04234 Throttle Housing Assembly (includes 2 & 37)
2 753-04119 Throttle Trigger
3 791-182690 Throttle Trigger Spring
4 753-04405 Throttle Cable Assembly
5 753-04236 Upper Drive Shaft Housing Assembly
6 791-180869 Deluxe D-Handle Assembly (includes 7-9)
7 791-181070 Screw
8 791-182167 Deluxe D-Handle
9 791-182168 Bottom Clamp
10 753-1190 Split Boom Coupler (includes 11-14)
11 791-182057 Screw
12 791-181617 Bolt
13 791-181981 Adjustment Knob (includes 14)
14 753-04386 Knob Retaining Nut
15 753-1212 Lower Drive Shaft Housing Assembly
16 791-181166 Lower Flexible Drive Shaft
17 791-153597 Lower Clamp Assembly (includes 18)
18 791-145569 Anti-Rotation Screw
19 791-181566 Gear Box Assembly (includes 23 & 24)
20 791-180547 Shield Mounting Hardware
21 753-1213 Shield Assembly (includes 22)
22 791-181823 Blade Assembly
23 791-181457 Outer Spool Assembly (includes 24)
24 791-181458 Retainer
25 791-181561 Thrust Washer
26 753-04257 Slider
27 791-181459 Small Spring
28 791-181532 E-Clip
29 791-181531 Spring
30 791-181462 Plunger
31 791-181463 C-Clip
32 791-181464 Inner Reel
33 791-181465B Large Spring
34 791-181467 Foam Seal
35 791-181468B Bump Head Knob Assembly (includes 33 & 34)
36 791-182673 Switch
* 753-04309 Cutting Head Assembly (17, 19, 23-35)
