E25

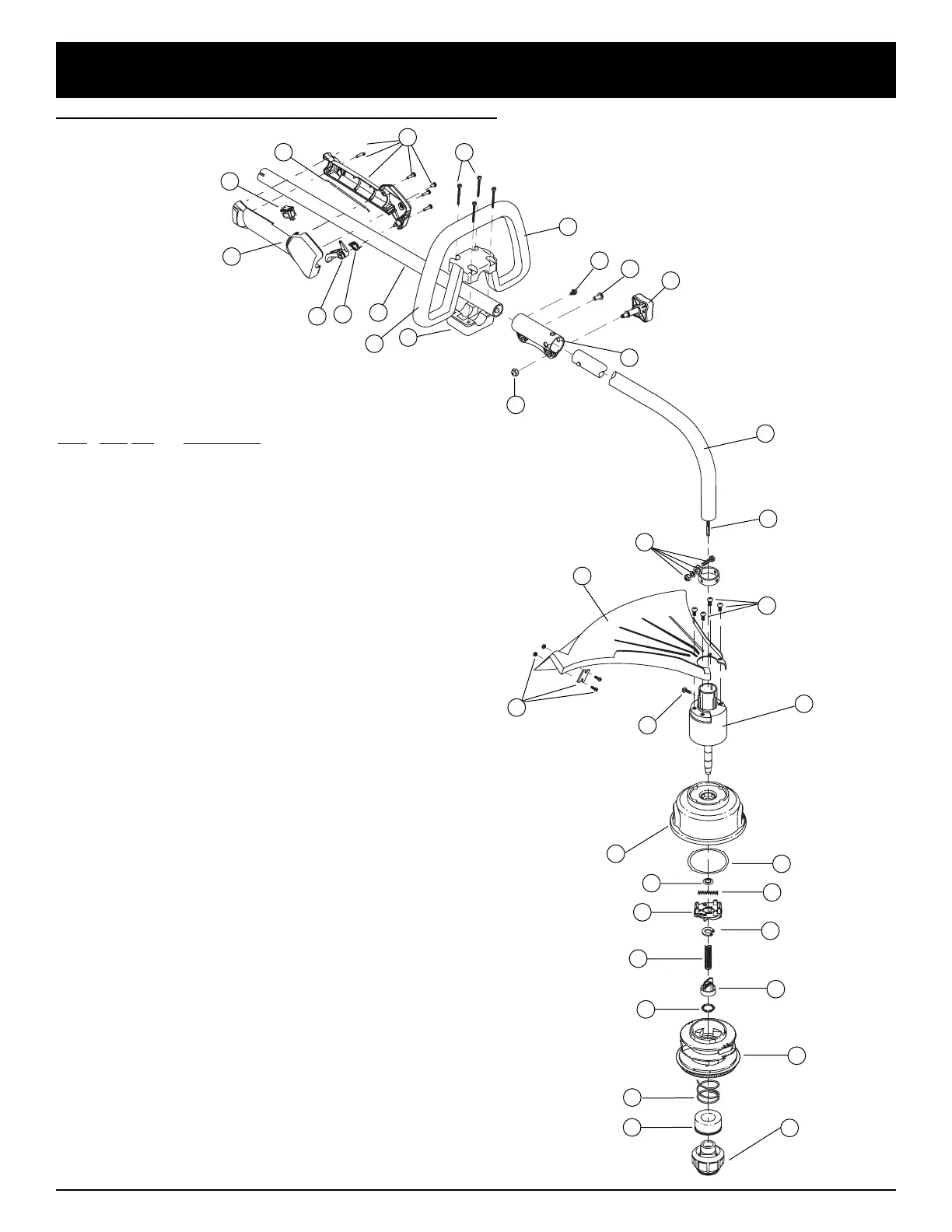

TB25CS PARTS LIST
13
14
11
15
1
7
8
10
12
4
3
2
Item Part No. Description
1 753-04234 Throttle Housing Assembly (includes 2-4)
2 791-182690 Throttle Trigger Spring
3 753-04119 Throttle Trigger
4 791-182405 Switch
5 791-182877 Throttle Cable Assembly
6 753-04236 Upper Drive Shaft Housing Assembly
7 791-180869 Deluxe D-Handle Assembly (includes 8-10)
8 791-181070 Screw
9 791-182167 Deluxe D-Handle
10 791-182168 Bottom Clamp
11 753-1190 Split boom Coupler (includes 12-15)
12 791-182057 Screw
13 791-181617 Bolt
14 791-181981 Adjustment Knob (includes 15)
15 791-181886 Knob Retaining Nut
16 753-1218 Lower Drive Shaft Housing Assembly
17 791-153597 Lower Clamp Assembly (includes 21)
18 791-181852 Lower Flexible Drive Shaft
19 791-180531 Shield Mounting Screw
20 791-181857 Bushing Housing Assembly
21 791-145569 Anti-Rotation Screw
22 791-181659 Shield Assembly (includes 23)
23 791-181823 Blade Assembly
24 791-181457 Outer Spool Assembly (includes 25)
25 791-181458 Retainer
26 791-181561 Thrust Washer
27 791-181459 Small Spring
28 753-04257 Slider
29 791-181532 E-Clip
30 791-181531 Spring
32 791-181462 Plunger
33 791-181463 C-Clip
34 791-181464 Inner Reel
35 791-181465B Large Spring
36 791-181467 Foam Seal
37 791-181468B Bump Head Knob Assembly (includes 34 & 35)
* 753-04929 Complete Cutting Head Assemly
(includes 16, 19, 20, 23-37)
* Items Not Shown
19
17
18
22
27
25
28
29
24
26
20
21
23
33
31
30
35
32
34
36
16
9
6
1
5
BOOM & TRIMMER PARTS - TB25CS
2 CYCLE TRIMMER
