True Induction Double Burner - Building of Supports for Cooktop Below the Counter; Installing Cooktop

Building of Supports for Cooktop Below the Counter
-Any thickness of the countertop can be ulized, however, the thickness will determine if the supports are built into the
walls of the cut-out, placed below the cut-out, or be built out from the boom of the cut-out.

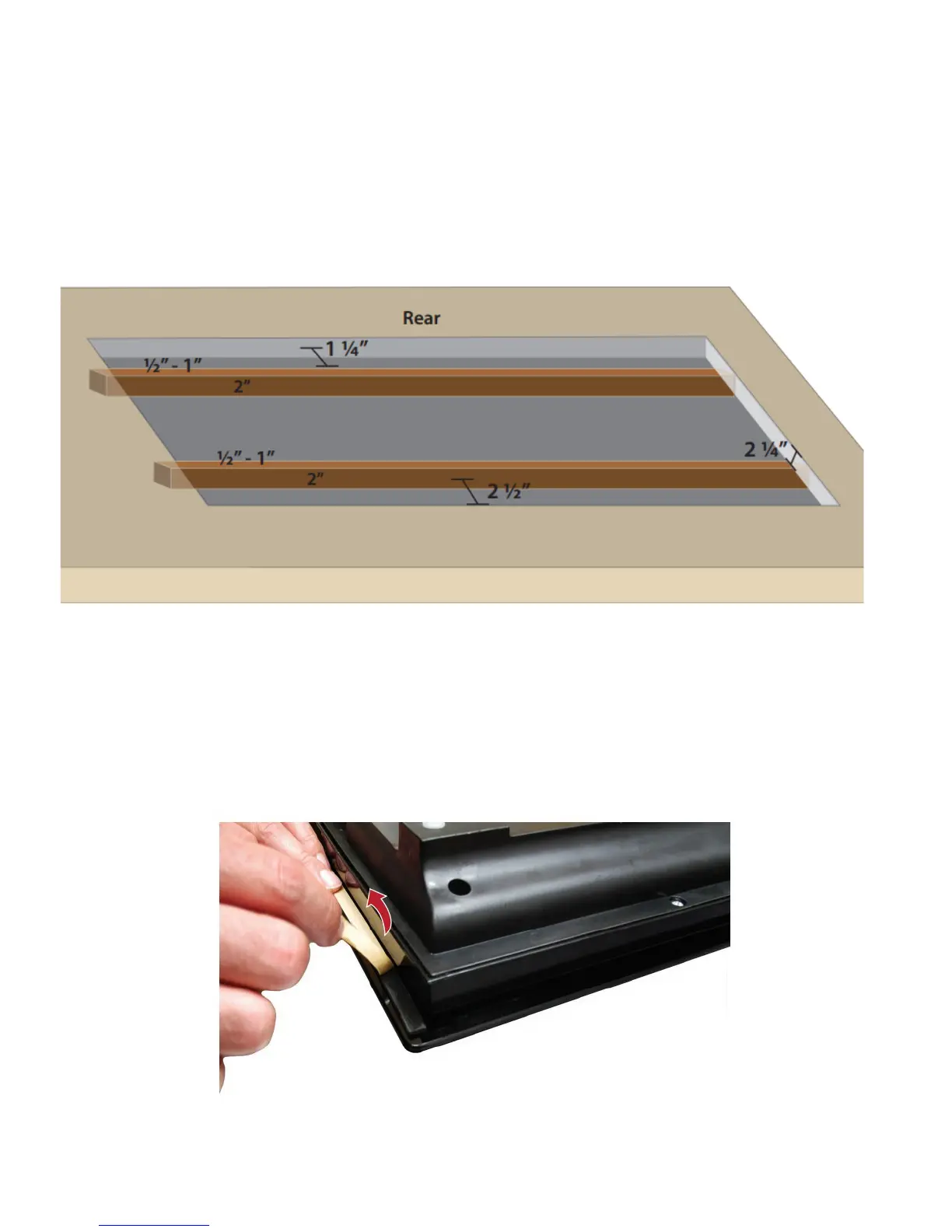

-Two support beams between ½” and 1” in width and 2” in depth should be placed lengthwise (spanning 23 11⁄16”) 2 ¼”
below the surface of the cut-out. In order to achieve this depth it may be necessary to add a build out to the 14 ¼” sides
of the boom of the countertop.
-The supports should be spaced center line in from the rear 1 1/4” and the centerline in from the front 2½”.
Installing Cooktop:
-First feed the power wire through the hole and to the locaon of the power receptacle underneath the cabinet.
-The ½” overhang on the inducon cooker comes with pre-installed foam gasket. Peel o the adhesive protector on the
boom of the gasket and set the inducon cooker into the cut-out. Gently press down on the inducon cook top to se-
cure the adhesive gasket to the countertop. The cook top should be sing on the supports previously installed.
2
