4
I. Cooktop Installation Continued...
Building of supports for cooktop below the counter
Any thickness of the countertop can be utilized, however, the thickness will determine if sup-
ports are built into the walls of the cut-out, placed below the cut-out, or be built out from the
bottom of the cut-out.

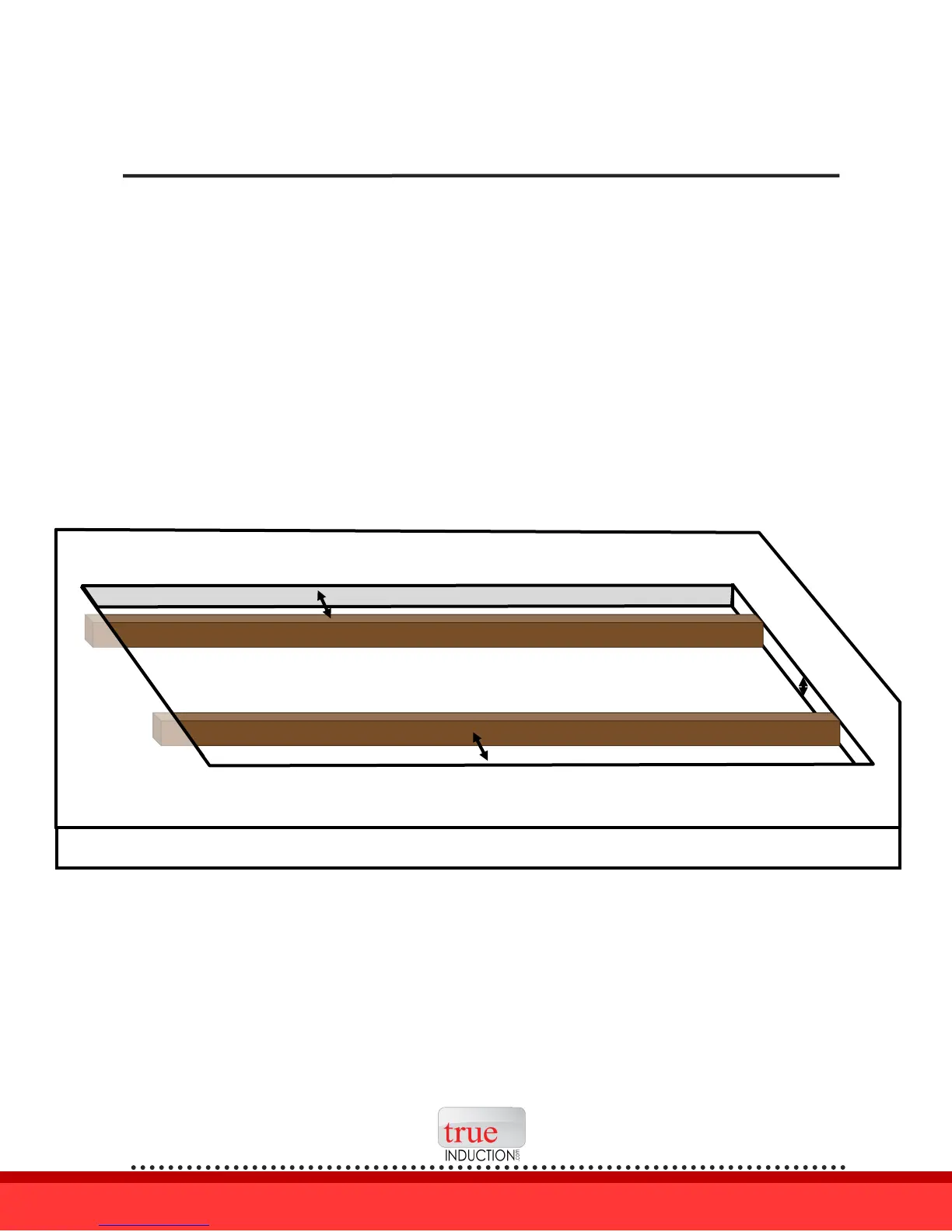

Two support beams between½'' and l" in width and 2" in depth should be placed lengthwise
(spanning 23 11/16") 2 ¼" below the surface of the cut-out. In order to achieve this depth it
may be necessary to add a build out to the 14 ¼" sides of the bottom of the countertop.
The supports should be spaced center line in from the rear 1 ¼" and the centerline in from
the front 2 ½''.
Back of surface
2’’
2’’
1/2 - 1’’
1/2 - 1’’
1 1/4’’
2 1/2’’
2 1/4’’
DOUBLE BURNER TI-2B COUNTER INSETINDUCTION COOKTOP MANUAL P.2
