3
2 1/2’’ min
2 1/2’’min
*Outside Radius .4''
23 3/4''
14 1/4''

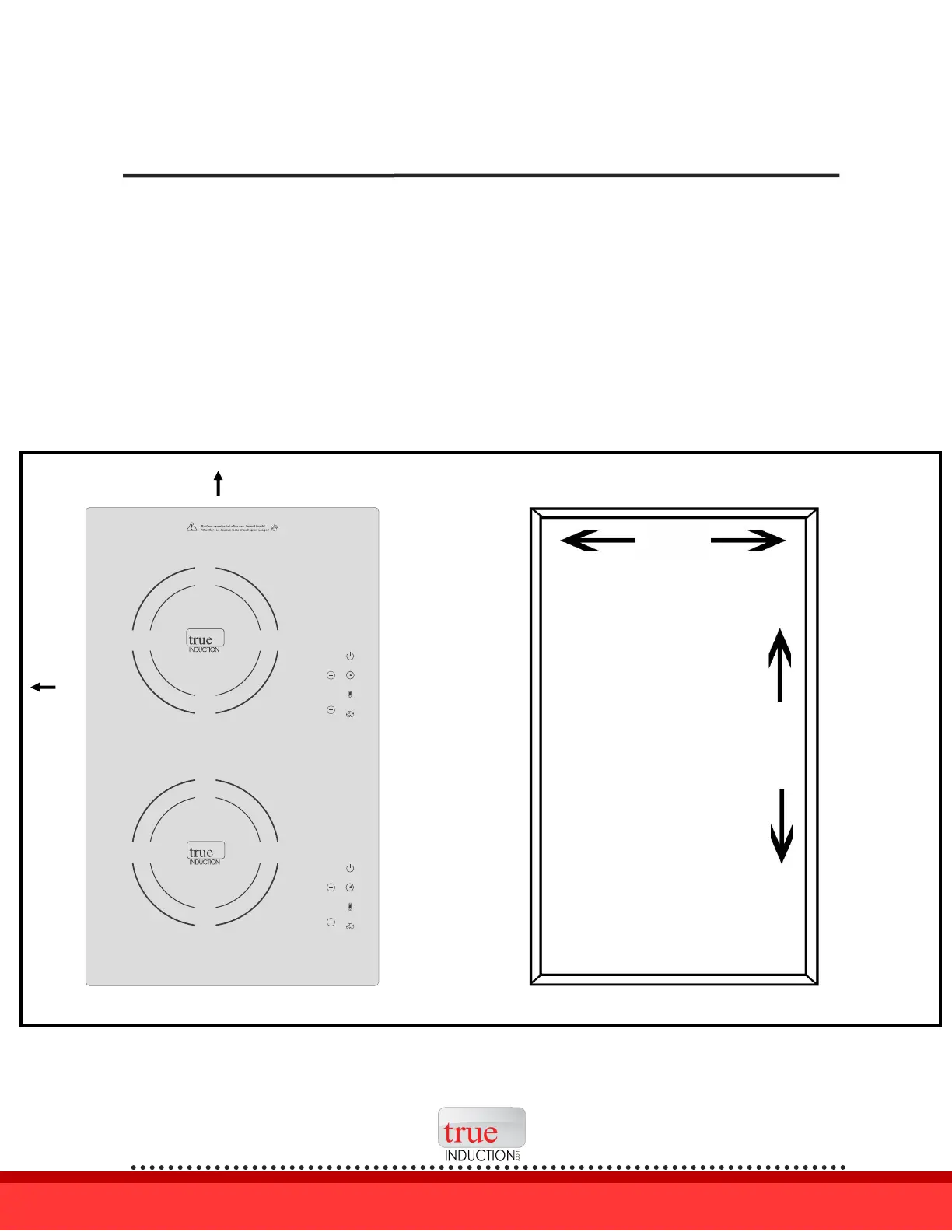

I. Cooktop Installation
Dimensions and Placement for Cut-out in Countertop
• Cut a rectangle hole in the countertop where the cook top is to be placed. The dimensions
for the cut-out are 14 1/4'' x 23 3/4''
• The cut-out must be placed at least 2 1/2" from any side of the countertop.
• To achieve flush mounting installation, use a router tool to round the corners of the hole cut
into the countertop.
DOUBLE BURNER TI-2BN COUNTER INSETINDUCTION COOKTOP MANUAL P.1
