SHELVING INSTALLATION / OPERATION &
LIGHT SWITCH LOCATION
INST
INST
ALLA
ALLA
TION / OPERA
TION / OPERA
TION INSTRUCTIONS
TION INSTRUCTIONS
SHELF & ORGANIZER INSTALLATION:
Step 1

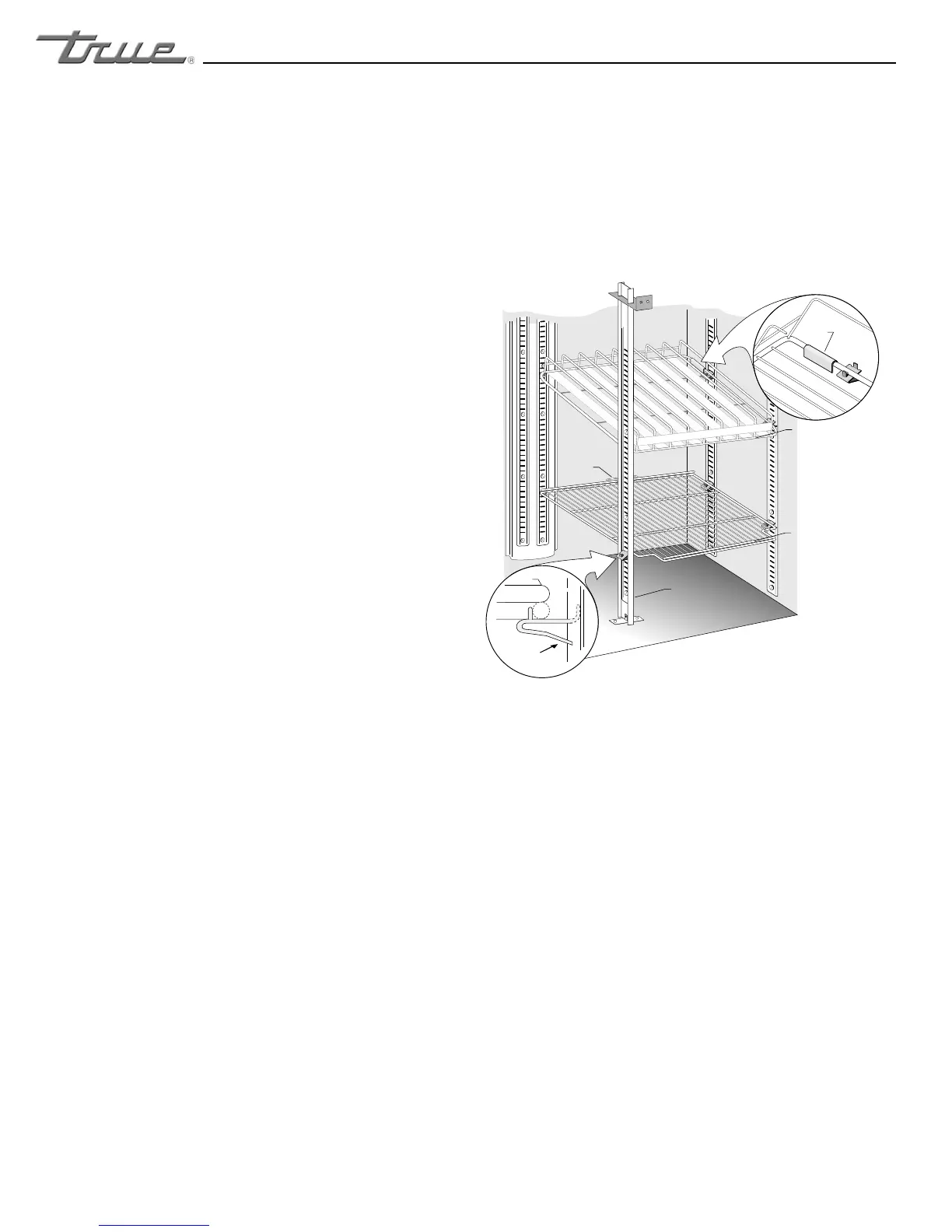

A. Hook shelf clips onto shelf standards.
(see illustration).
B. Position all four shelf clips equal in distance
from the floor for flat shelves.
C. Lower front of gravity feed TrueTrac organizers
to enable proper feed.
WIRE SHELVES:
Wire shelves are oriented so that cross support bars
are facing down.
˚
NOTE:
GDM-5 models include an airflow guard on the
rear of shelves to maintain an air space at the
rear of the cabinet. (see illustration).
TrueTrac ORGANIZERS:
TrueTrac organizers for Glass Door Merchandisers
come with a package of shelf retainer clips. Install
clip on the side to the rear of organizer (see
illustration) to end of organizer that rests against
left or right outside wall.
With correct installation, the retainer clip should
separate the rear of the organizer from the rear
interior wall of the cabinet.
NOTE:
No retainer clips needed on center
organizers of a GDM-69.
Step 2
Place shelves or organizers on shelf clips making
sure all corners are seated properly.
LIGHT SWITCH LOCATION:
Light switch location depends upon the GDM model.
Most GDM models will have the light switch located on
the right side of the ceiling inside the unit. Most
instances the switch is located next to the temperature
control. GDM-49’s and 72’s have the switch located on
the right side of the evaporator housing along the
interior ceiling. GDM-9’s, 5’s, and GDM-5PT’s have the
switch located on the left side of the ceiling. Some
convenience store GDM’s have the switch located
behind the sliding doors above the light bulb for
example the GDM-33SSL-54 and the GDM-33CPT-54.
G4SM-23 models have an additional switch for the
rotating display shelves. The switch for the rotating
shelves in the G4SM-23 models is located under the
sign frame.
