CHAPTER 2: ASSEMBLY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 9
ASSEMBLY STEPS:
CAUTION:
• Use caution when assembling bike. It is recommended that at least two people unpack and assemble bike.
• Remove all bike components from packaging.

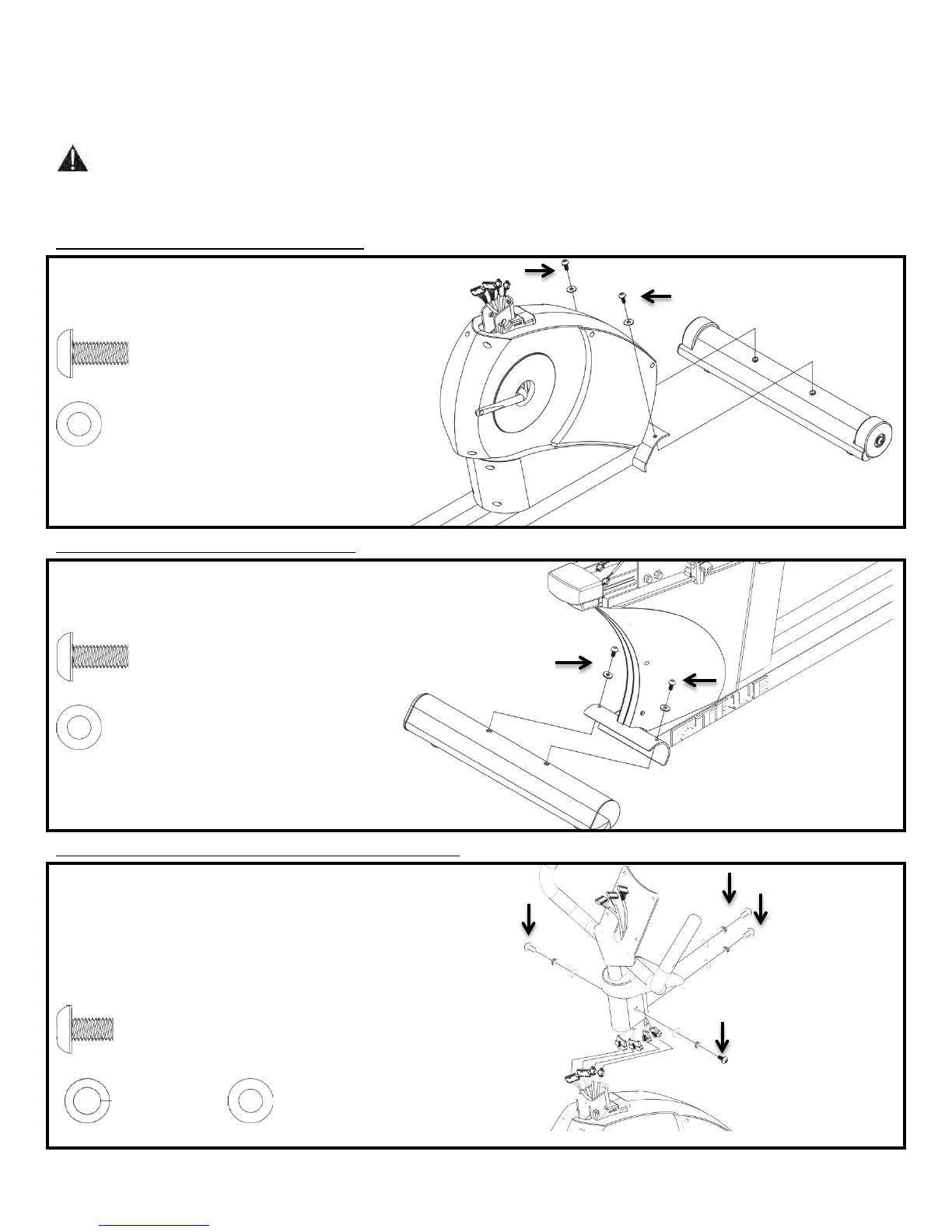

STEP 1 Attach Front Stabilizer Bar:
a) Using 2 screws and 2 flat washers attach the
front stabilizer bar to the bike frame.
Hardware Required:
#24 - Screw M8x20mm Sock Hd w/Nylock
#21 - Flat Washer M8x1.2mm
STEP 2 Attach Rear Stabilizer Bar:
a) Using 2 screws and 2 flat washers attach the
rear stabilizer bar to the bike frame.
Hardware Required:
#24 - Screw M8x20mm Sock Hd w/Nylock
#21- Flat Washer M8x1.2mm
STEP 3 Attach Console Mast and Balance Bar:
a) Connect the 4 wires from the bottom of the
console mast to the corresponding wires in the
bike frame.
b) Mount the mast to the frame using 4 screws,
4 lock washers and 4 flat washers.
Hardware Required:
#16 - Screw M8x15mm
To Next Page
