CHAPTER 2: ASSEMBLY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 10
ASSEMBLY STEPS (continued):

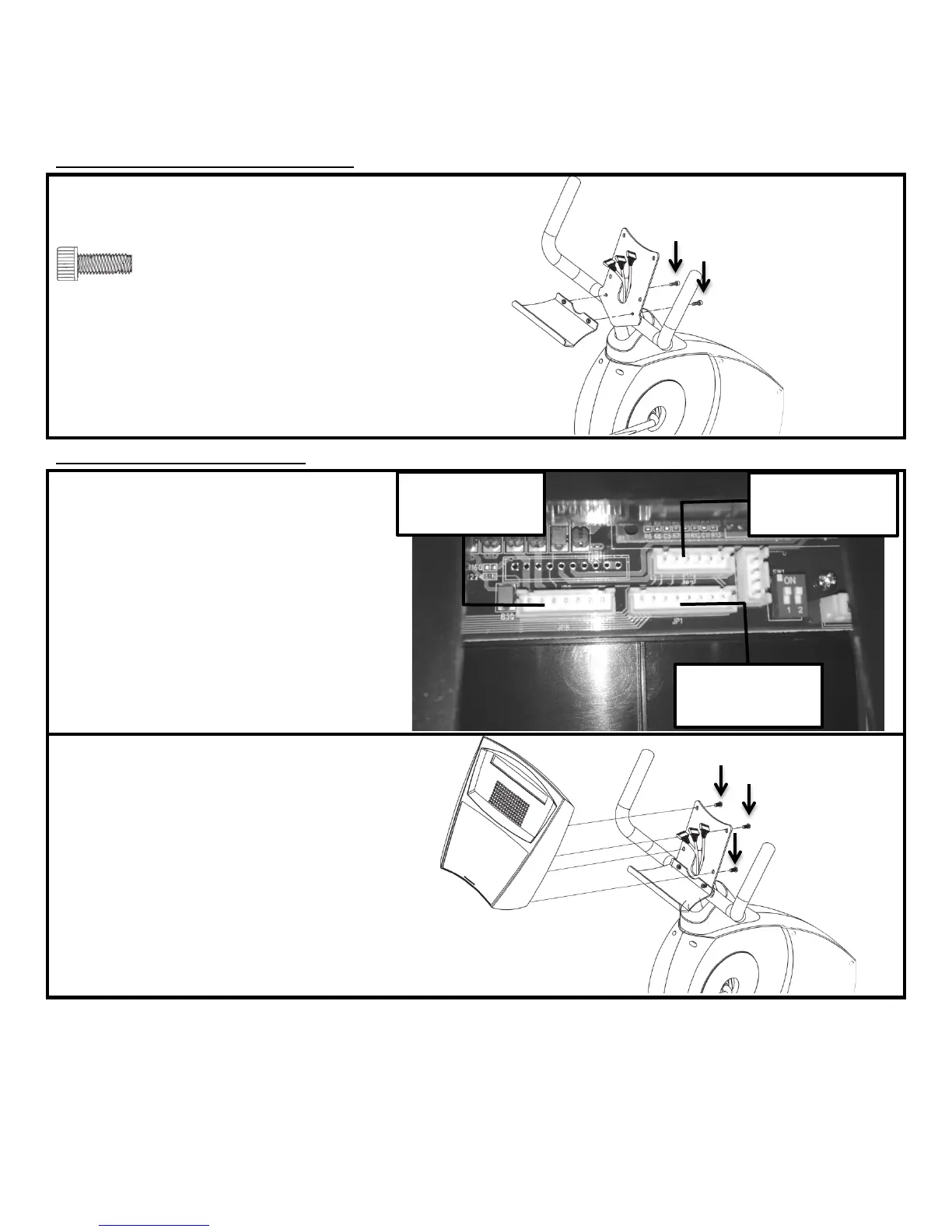

STEP 4 Reading Rack Installation:
a) Attach the reading rack to the front of the
console mast using 2 screws.
Hardware Required:
#147 - Screw M6x16mm
STEP 4 Console Installation:
) Connect the cables from the console mast to
the console as shown.
b) Mount the Console to the console mast
using the four screws that are included the
console.
Hardware Required:
Included with console.
Attach 6 Pin
Cable Here
Cable Here
Attach 8 Pin
To Next Page
