CHAPTER 2: ASSEMBLY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 12
ASSEMBLY STEPS (continued):

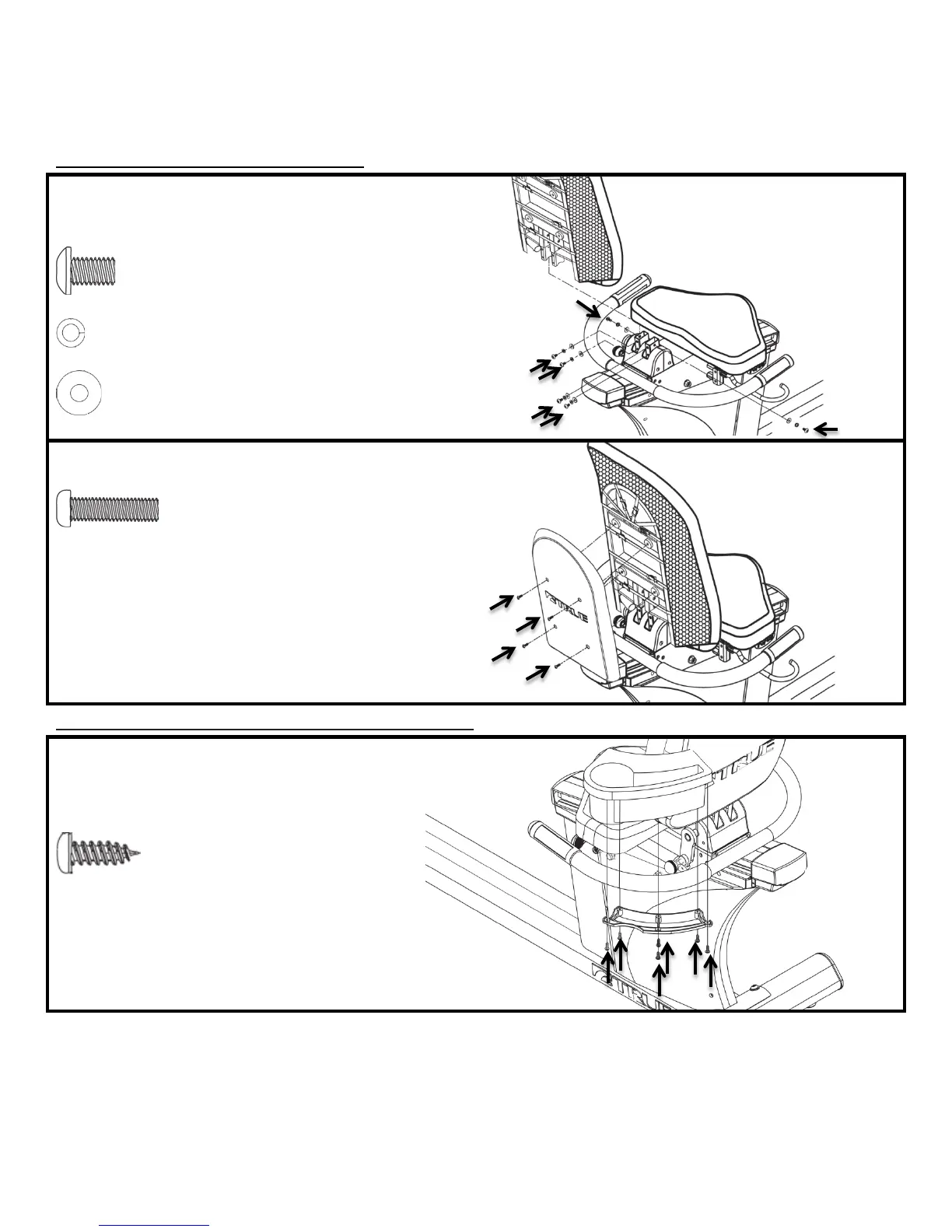

STEP 6 Seat Assembly (continued):
b) Mount the seat back frame using 6 screws, 6
lock washers and 6 flat washers.
Hardware Required:
#209 – Screw M6x10L
#132 - Lock Washer M6
#133 - Flat Washer M6x16x1.12mm
c) Attach the seat back cover using 4 screws.
Hardware Required:
#210 - Screw M5X20L
STEP 7 CD & Water Bottle Holder Attachment:
) Assemble the 2 pieces of the cd & water
bottle holder around the handlebar.
b) Use 6 screws to secure the pieces together.
Hardware Required:
#122 - Screw M4x12L
To Next Page
