LEVELING
A. Set unit in its final location. Be sure there is adequate ventilation
in your room. Under extreme heat conditions, (100 F+, 38 C+),
you may want to install and exhaust fan.
WARNING
Warranty is void if ventilation is insufficient.

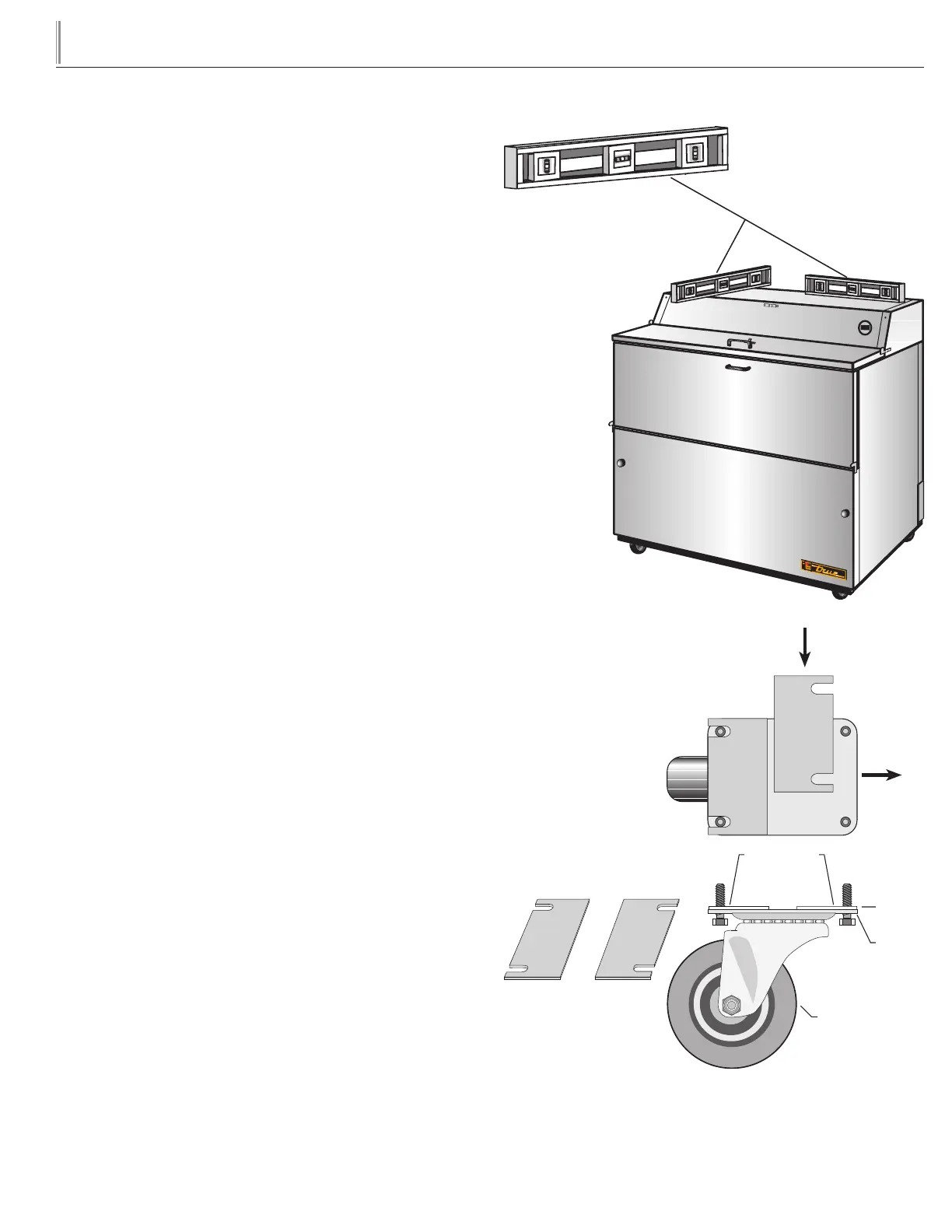

B. Proper leveling of your TRUE cooler is critical to operating
success. Effective condensate removal and door operation will
be effected by leveling. (See image 2)
C. When the cooler is in its final position adjust the castors as
needed to level the unit. The unit should be leveled front to
back and side to side with a level. To insure proper ventilation
for the compressor, keep the cabinet 1” (2.54 cm) from rear
wall. 1” (2.54 cm) rubber bumpers are attached to the back of
some cabinets.
NOTE: If the cabinet has a center leveling screw, castor, or leg,
make sure it is adjusted properly so it makes full contact with the
floor after the cabinet has been leveled.
LEVELING CASTORS
Four sets of shims have been provided in warranty packet for leveling
castored units positioned on uneven floors. Shims must be positioned
between cabinet and castor mounting plate. (See image 3)
Loosen castor bolts with an adjustable wrench enough to slide shims
between the castor mounting plate and cabinet bottom.
Install the desired number of shims (in pairs as shown in image 3),
making sure the slots in the shim are in contact with the castor
mounting bolts.
Tighten and secure the shims and castor(s).
Repeat process until cabinet is level.
D. Ensure that the drain hose or hoses are positioned in the pan.
Leveling Shims
Castor
Snug Fit
Here
Leveling Shims
Side View
Top View
Left Shim
In Position
Castor
Plate
