EQUIPMENT DETAILS
81
Turn to the left (-)
• Menu is paged from right to left.
• Reduce values.

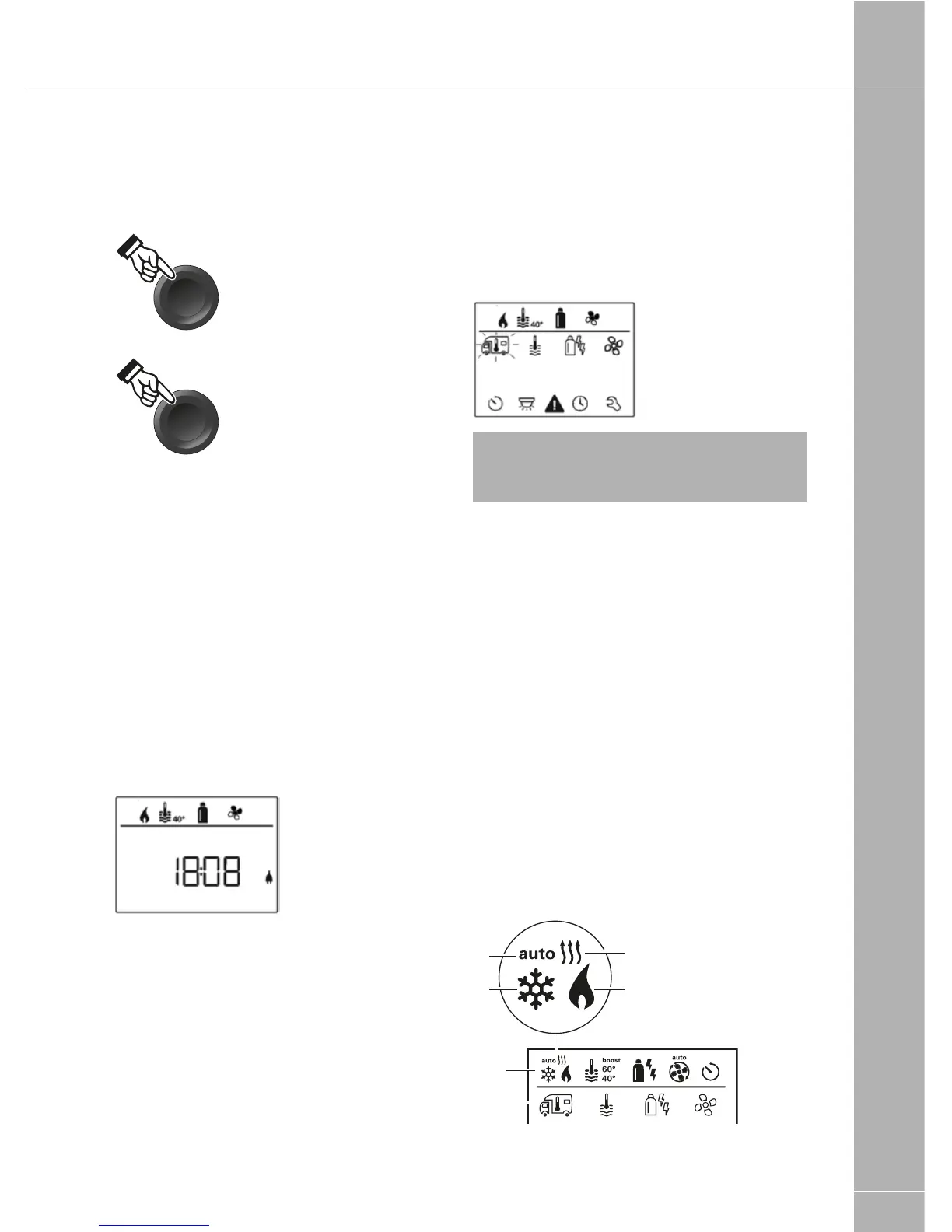

Clicking
• Accept (save) a selected
value.
• Select a menu item, change
to the setting level.
3 sec
Press (3 seconds)
• Main switch function
ON / OFF
Back button
Pressing the Back button (9) takes the user
back out of the menu again and discards the
settings. This means that the previous values
are retained.
Functions
The functions in the menu lines (3, 4) of the
control panel can be selected in any sequence.
The operating parameters are shown in the
status line (2) or the displays (5, 6).
Start / stand-by screen
After connecting the control panel to the
power supply, a start screen is shown after a
few seconds.
If no entry is made within a few minutes, the
standby screen is automatically shown again.
The display shows the time and current room
temperature alternately.
Switch on / return to setting level
• Press the control knob / push button for
longer than 3 seconds or the
• Back button.
The display shows the setting level. The first
symbol flashes.
Note: Previously set values / operating
parameters become active again after the
system is switched on.
Switch off
• Press the control knob / push button for
longer than 3 seconds.
Change the room temperature
• Use the control knob / push button to select
the symbol in menu line (3).
• Click to change to the setting level.
• Depending on the connected device, use the
control knob / push button to select between
the heater or air conditioning unit.
• Use the control knob / push button to select
the required temperature.
• Click the control knob / push button to
confirm the value.
2
3
a
d
