Truma UltraRapid User Manual

14
Gas
Valve
Gas
Valve
Control Panel
70 60
560
0
1.5k
1 2 3 4 5 6 7 8 9
10 11 12
HC
PC
HC
PC
Test Connector for Truma Production
RD
YE
12 V
+
-
WH OG
YE BU OG
BU
RD
BK
Control Panel Cable
Internal Fuse
(1.6 AT)
1 2 3 4 5
J2 J3 J1
BK = black BN = brown BU = blue GN = green GY = green/yellow OG = orange RD = red WH = white YE = yellow
WH BN GN YE GY

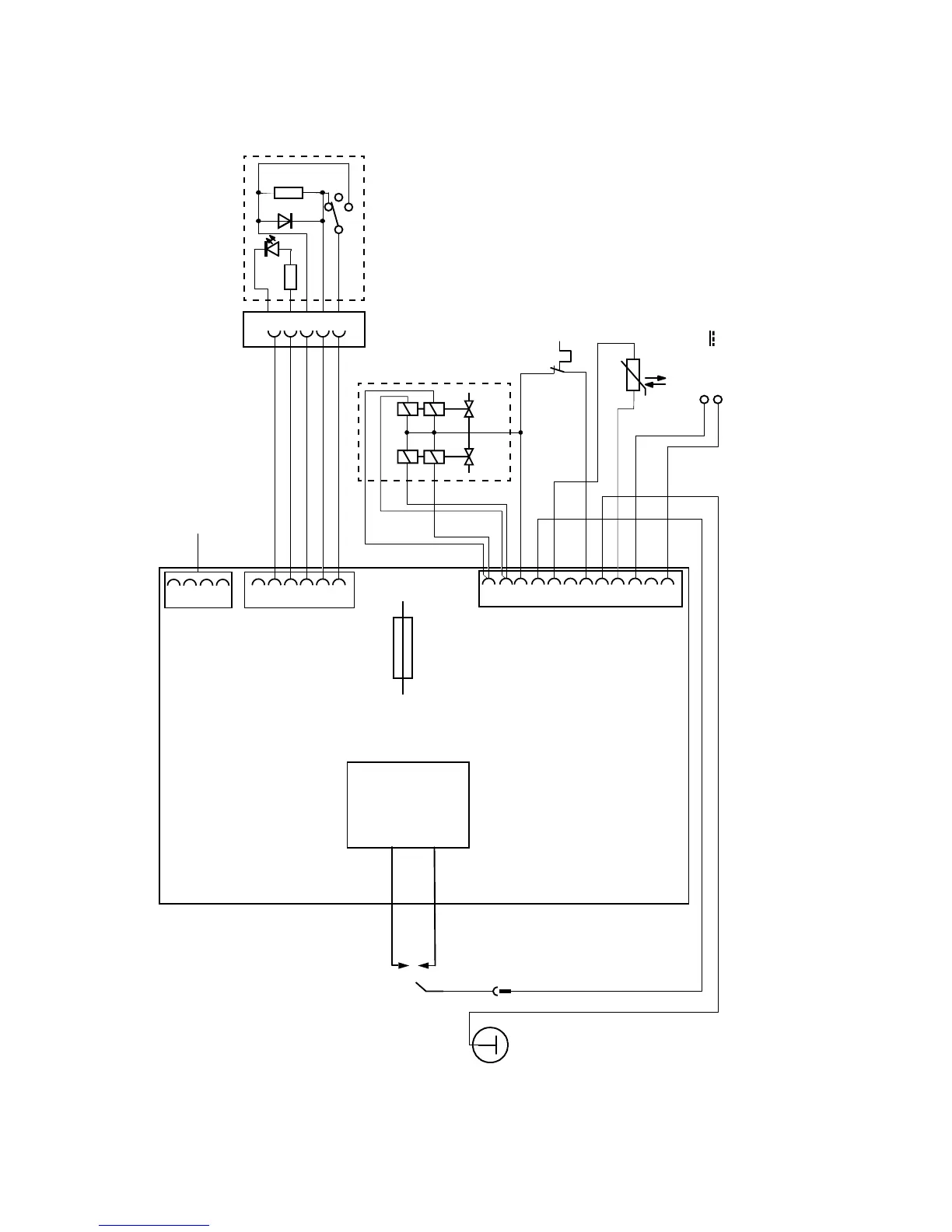

Electrical Connection Diagram
„Truma UltraRapid Hot Water System“
Safety Valve PC = Push Coil HC = Holding Coil
RD
GN GN
1 2 3 4 5 6
1 2 3 4
Water Over Temperature Switch
Flame Ignition Electrode
Ignition Coil
Flame Rectification Electrode Ground
WH WH
WH
Water Outlet Temperatur Sensor
ࢡ
The right to make technical modifications is reserved!
Wiring Diagram
