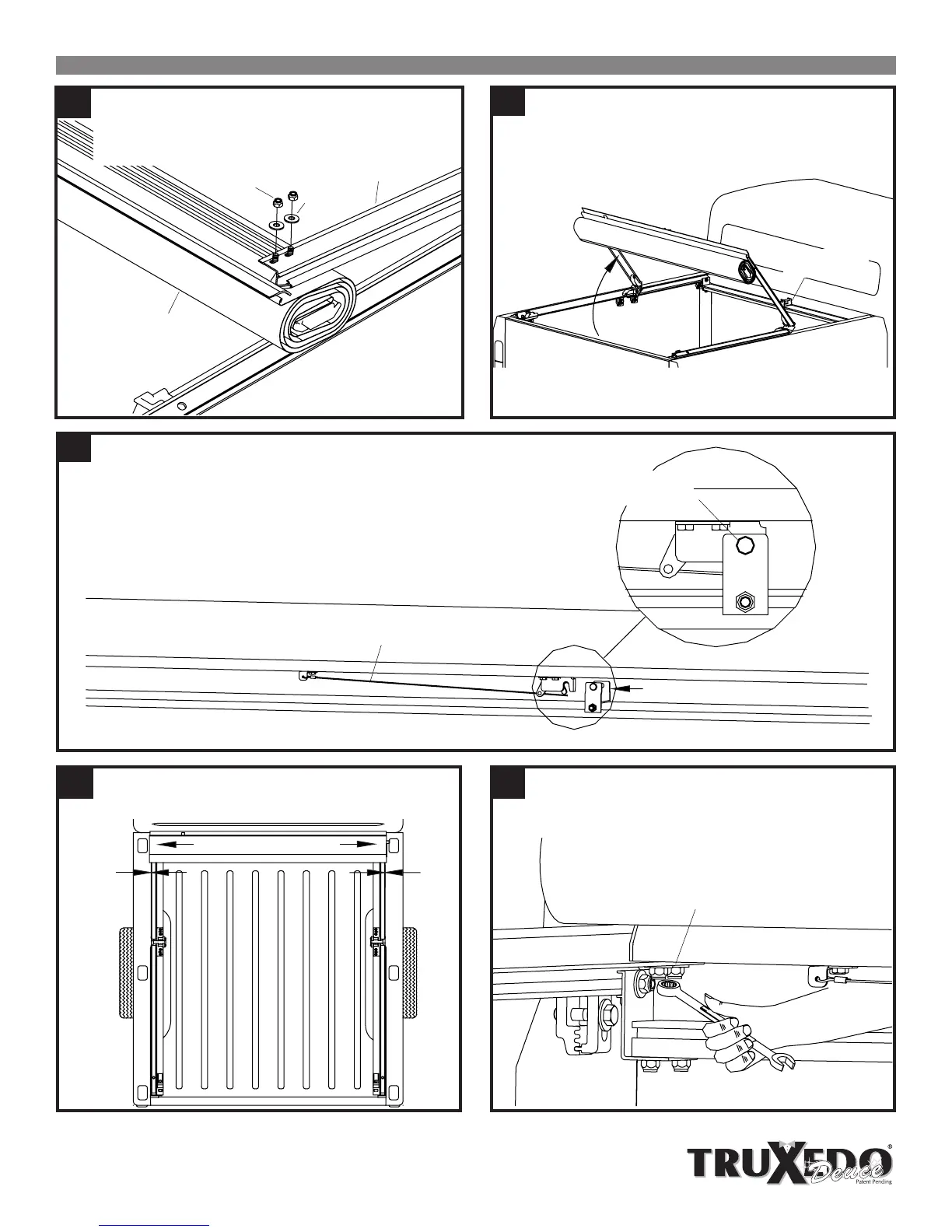

Align front rails on cover assembly and insert bolts
through slotted holes in front rail. Install washer and
hex nut. Ratchet nuts in place but do not tighten.
Square Up Cover Assembly: Position rails to
maintain even spacing with pickup.
Tighten All Fasteners Securely: Tighten fasteners
shown below using box end of wrench.
12
13
10
Standing inside pickup bed, carefully lift
and rotate front rails and cover assembly
closed.
a l i g n c o v e r w i t h p i c k u p b e d
e q u a l
s p a c e
e q u a l
s p a c e
5/16”
n u t
c o v e r a s s e m b l y
5/16”
w a s h e r
f r o n t r a i l
11
Align striker pin on crossmember with rotary
lock latch on cover. Lift cover assembly slightly
and slide striker bracket to align striker pin with
rotary lock latch.
SIDE RAIL AND COVER INSTALLATION (continued)
s t r i k e r p i n o n
c r o s s m e m b e r
p u l l c a b l e t o
r e l e a s e l a t c h
s t r i k e r p i n a l i g n e d
w i t h r o t a r y l o c k l a t c h
p u l l c o v e r t o w a r d r e a r
o f p i c k u p b e f o r e t i g h t e n -
i n g t h e s e f a s t e n e r s
9
