14

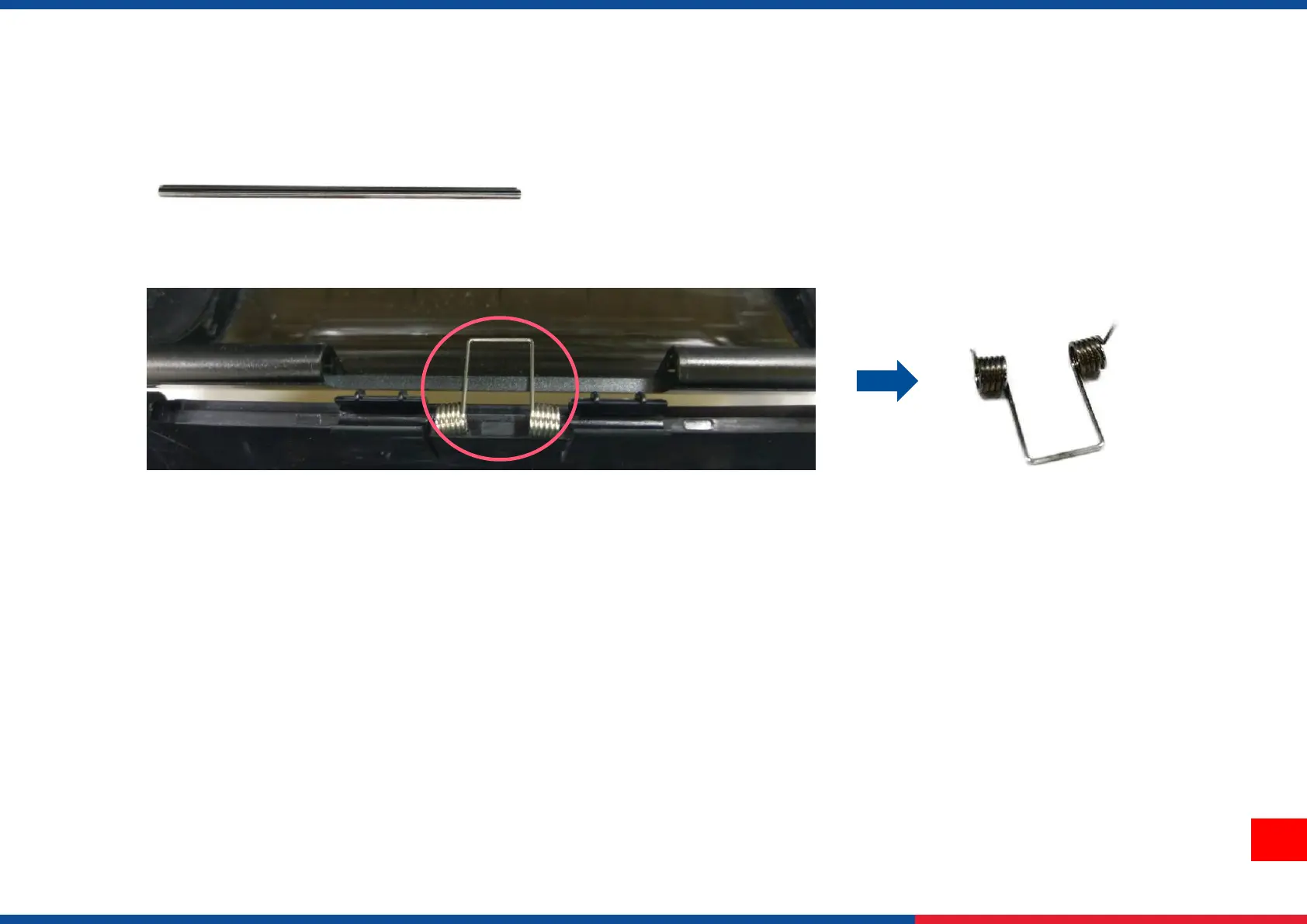

3.4 Replacing the Torsion Spring
1. Refer to 3.3 to remove the shaft
2. Take out the spring from the hole as shown
3. Reassemble the parts in reverse procedure.
