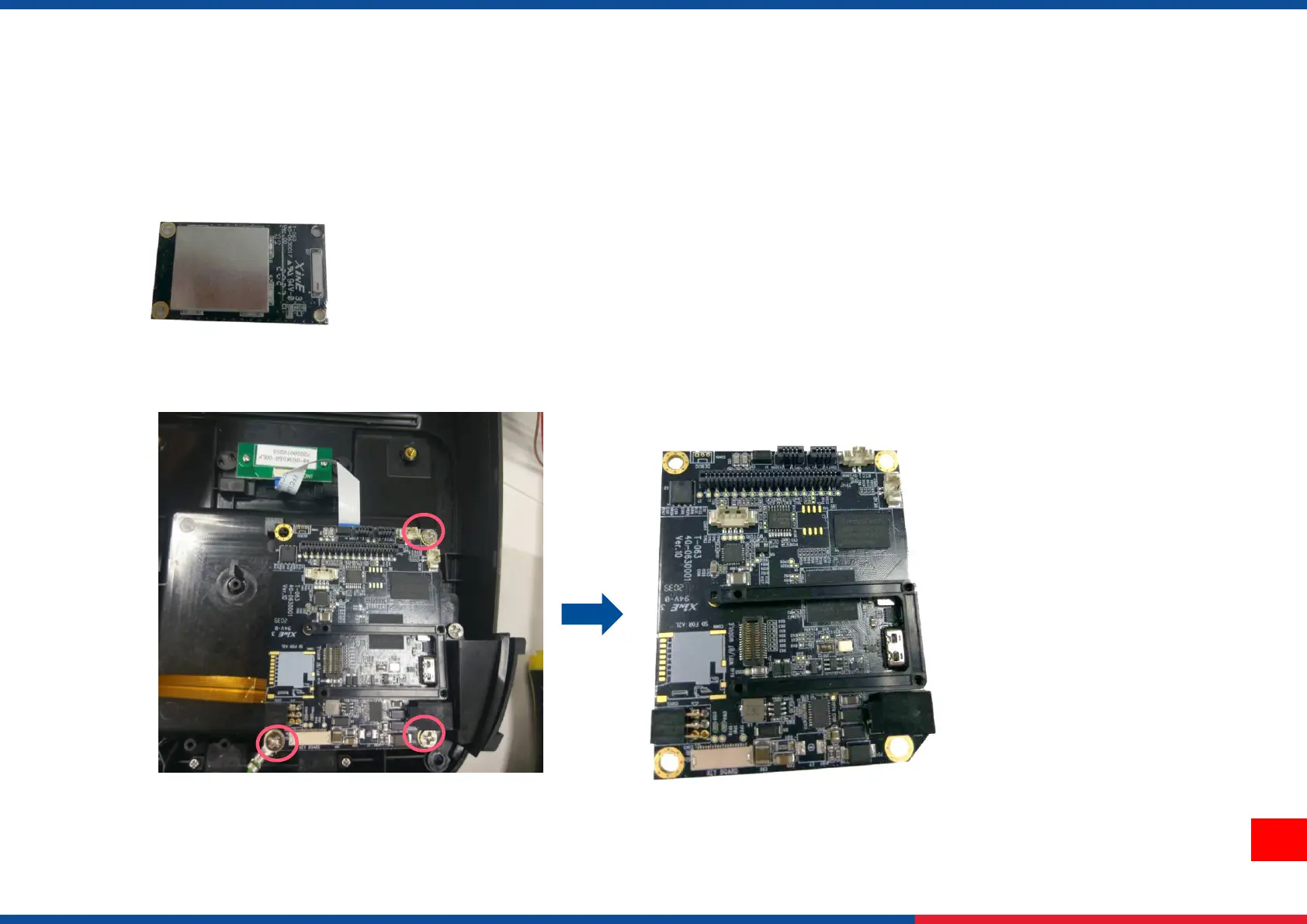

3.15 Replacing the Main Board Assembly

1. Refer 3.1 to re move the top cover

2. Refer 3.3 to lift the media holder and print module.

3. Refer 3.14 to remove the BT module

4. Disconnect the remaining cables and unscrew 3 marked screws.

5. Reassemble the parts in reverse procedures.
