3.16 Replacing MicroSD FPCB and MicroSD Holder

1. Refer to 3.1 to remove the top cover

2. Refer 3.3 to lift the media holder and print module.

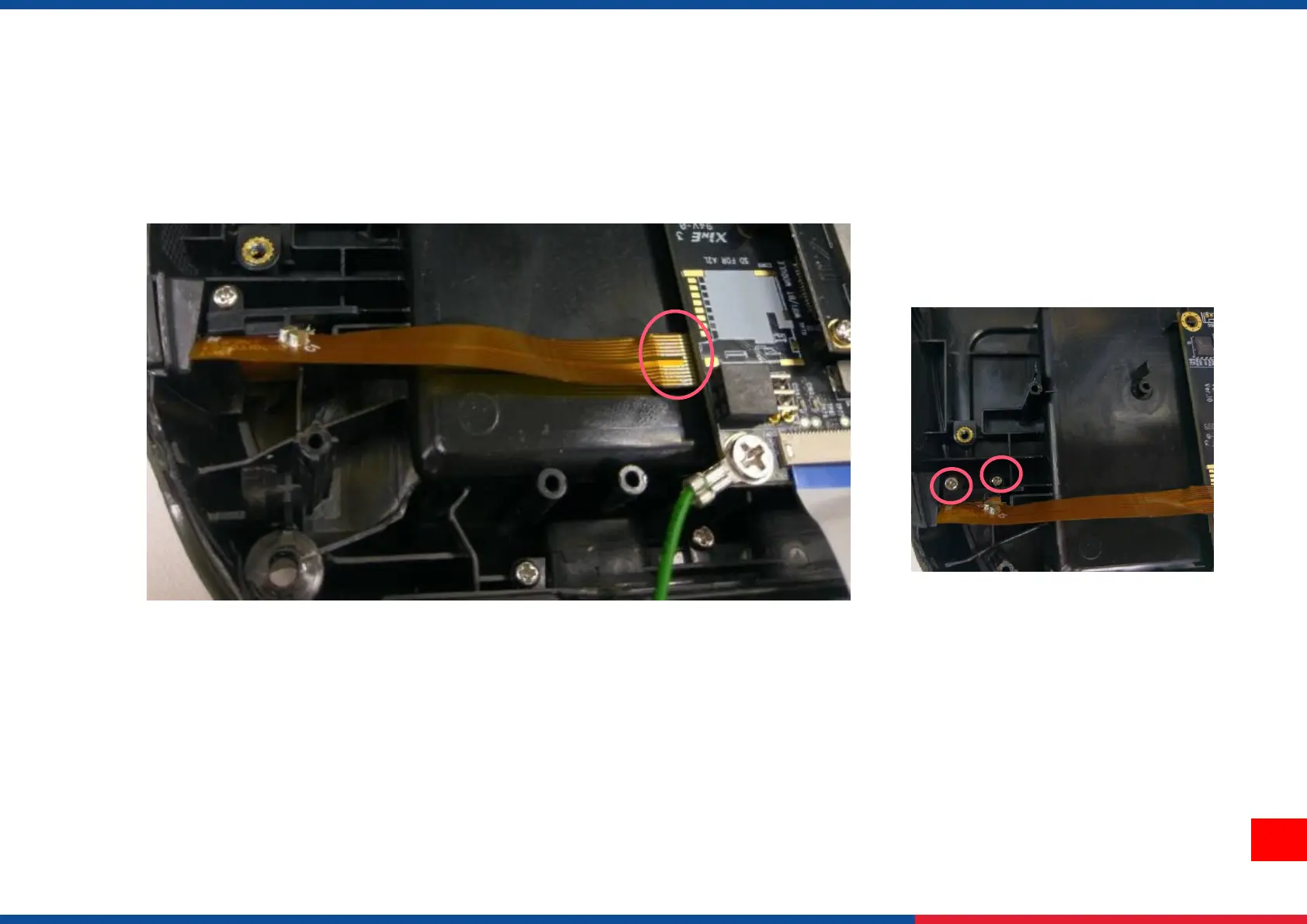

3. Disconnect the cable and unscrew 2 marked screw as shown

4. Reassemble the parts in reverse procedures
