3.17 Replacing Cradle Charge Adapter Board

1. Refer 3.1 to remove the top cover

2. Refer 3.3 to lift the media holder and print module.

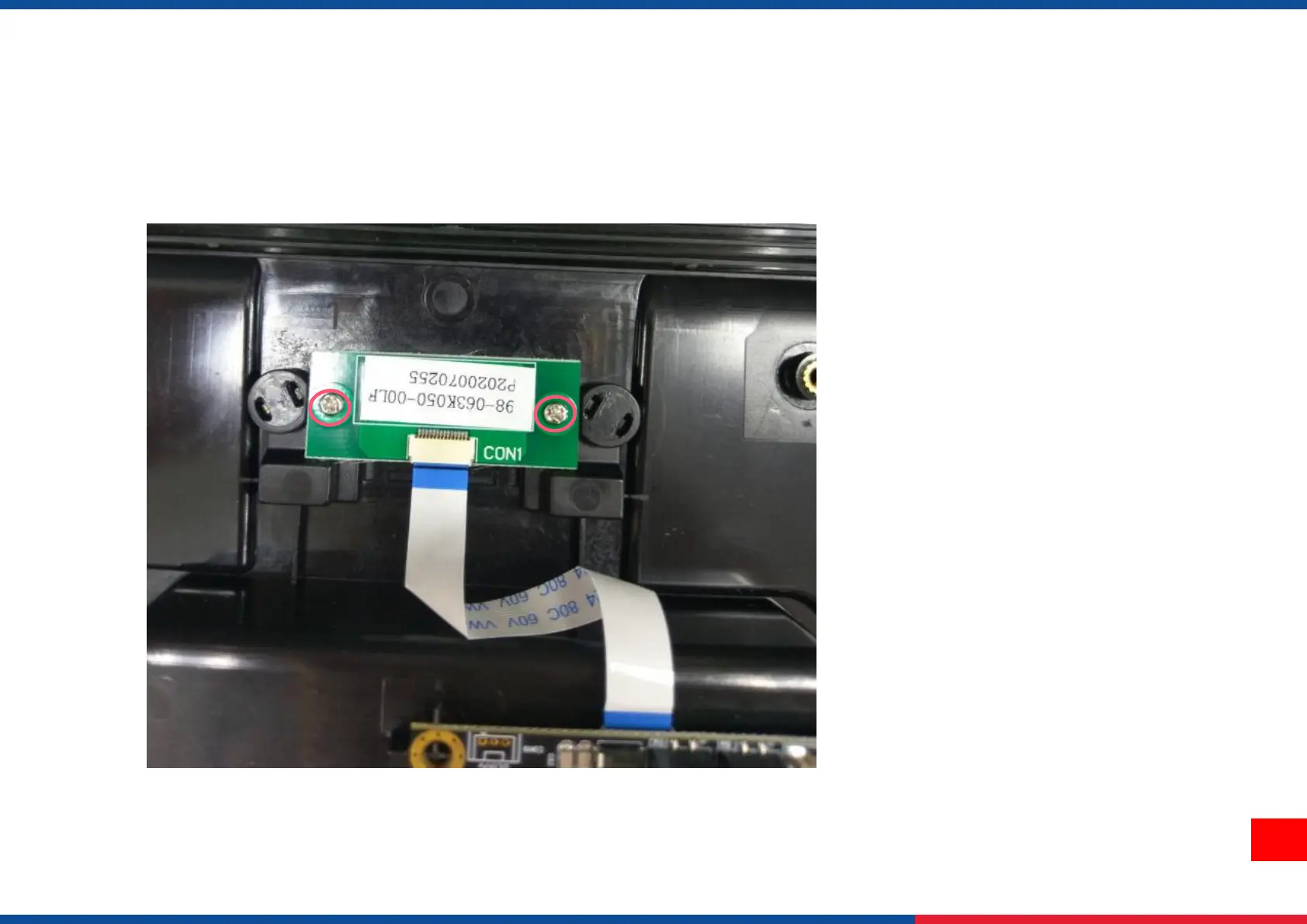

3. Disconnect the cable and unscrew 2 marked screws as shown.

4. Reassemble the parts in the reverse procedures.
