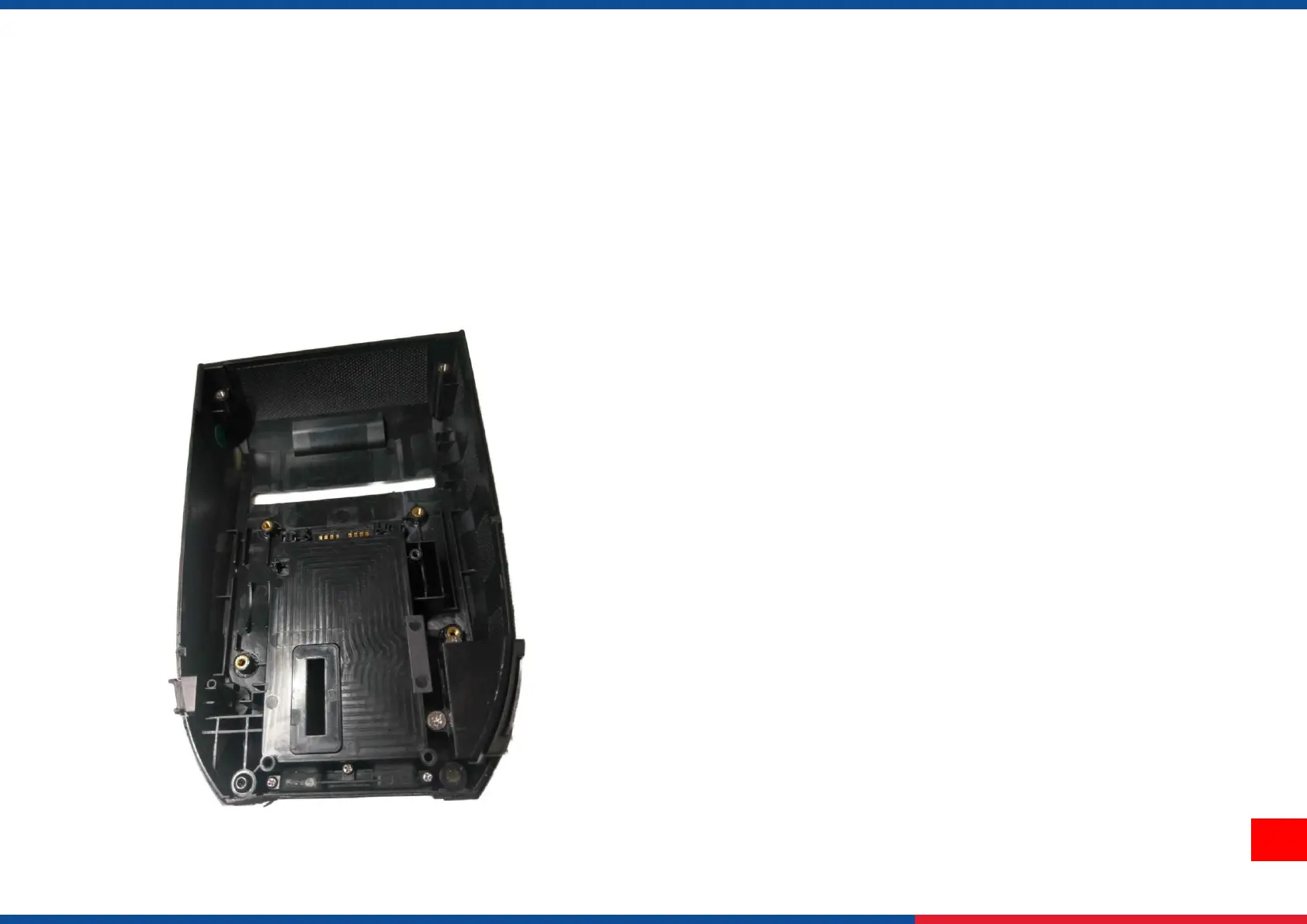

3.18 Replacing Lower Cover

1. Refer 3.1 to remove the top cover.

2. Refer 3.6 to remove the lift the media holder and print module.

3. Refer 3.15 to remove the main board.

4. Refer 3.16 to remove MicroSD FPCB and holder.

5. Refer 3.17 to remove cradle charge adapter board.

6. Reassemble the parts in reverse procedure.
