17

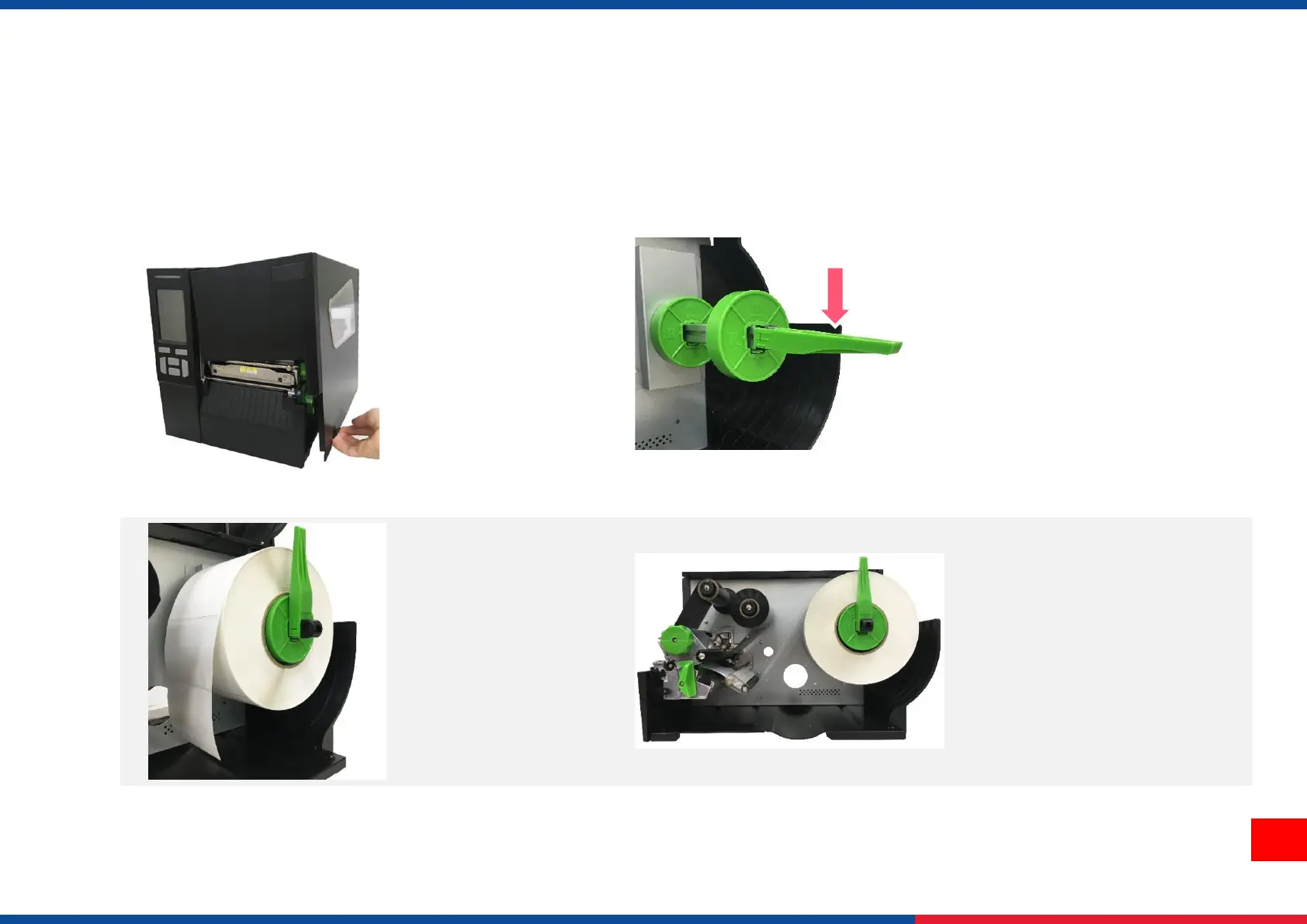

3.3 Loading the Media
1. Open the media
cover.
2. Move the label roll guard to
the end of the spindle then
flip it down.
3. Place the label
and use label roll
guard to be
stabilized
4. Release lever and thread the
label through the damper,
media sensor, and label
guide
