Unpacking and Setting Up 2-11

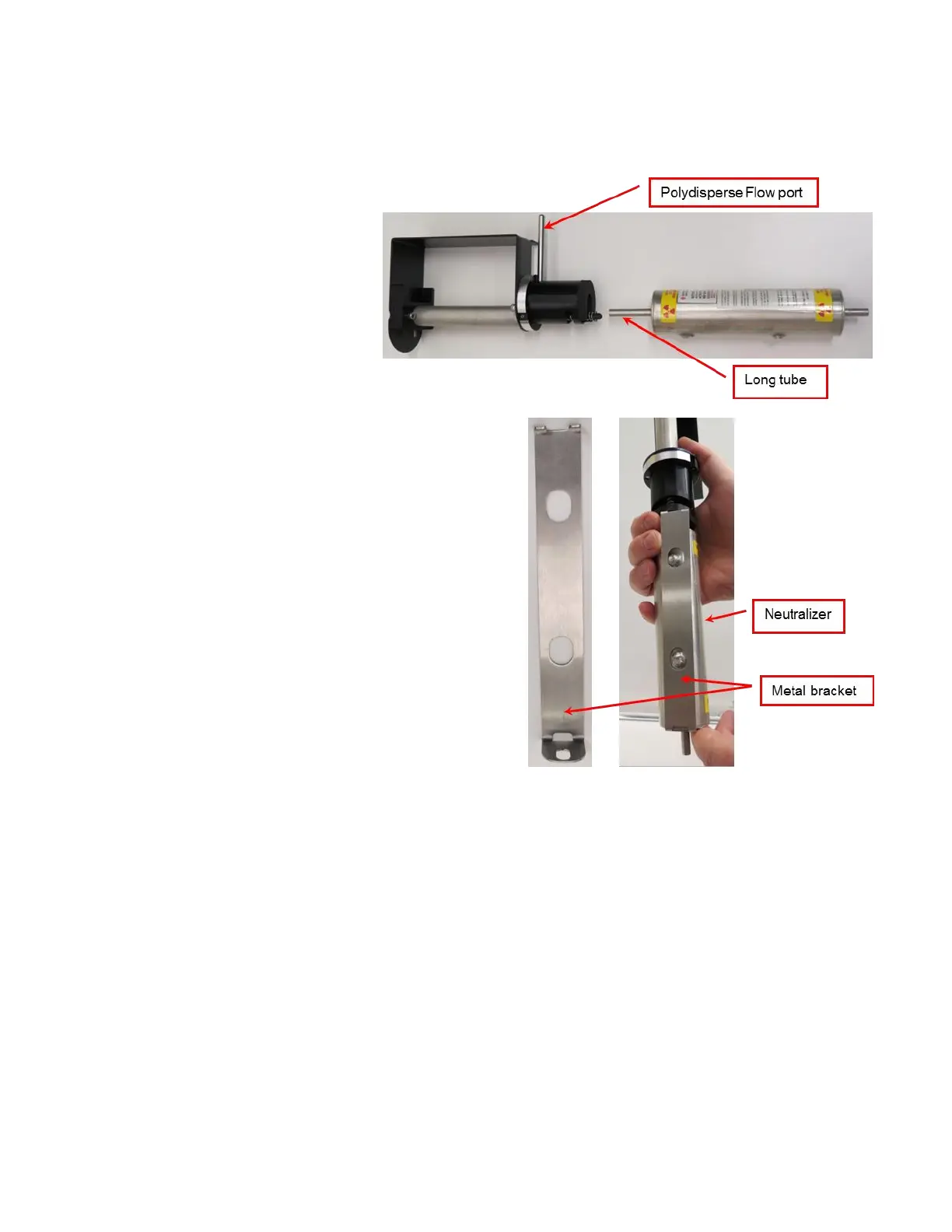

3. Fit the longer neutralizer tube into the hole at the bottom of the flag
assembly. The head of the screws along the side of the neutralizer
should face away from the Polydisperse Flow outlet tube.
4. Push the
neutralizer and
the flag
assembly
together. Slide
the metal
bracket over the
bottom
neutralizer tube.
Make sure the
clearance holes
on the bracket
aligns with the
screw heads on
the neutralizer
as shown.
5. Compress the foam spacer bracket in order to spring the bracket into
place. The neutralizer and flag assembly are now ready to install.
