Instrument Description 4-3
Back Pa n e l
The main components of the Electrostatic Classifier back panel are shown
in the figure below. Components include power and data connections and
the cooling fan.

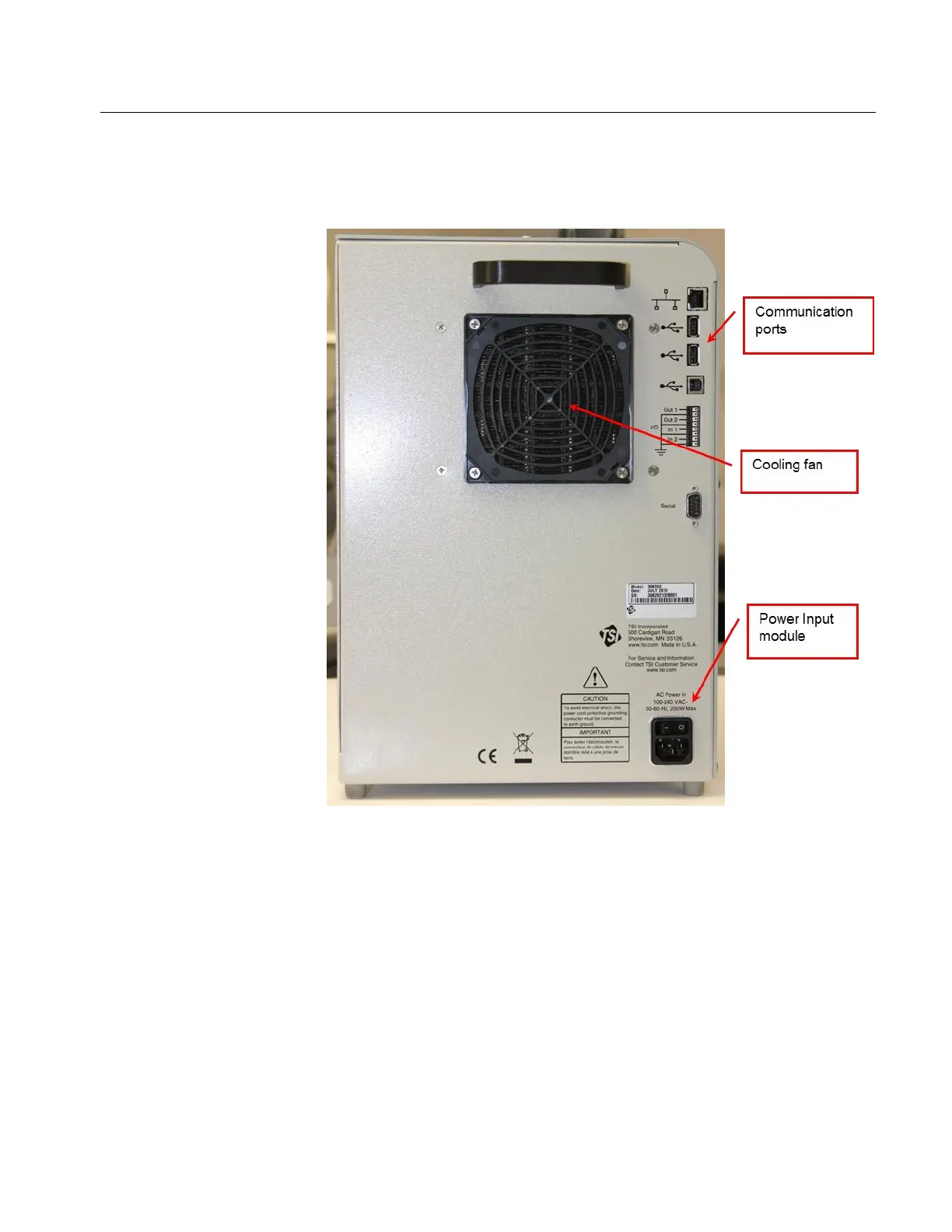

Figure 4-2
Electrostatic Classifier Back Panel
