Unpacking and Setting Up 2-21

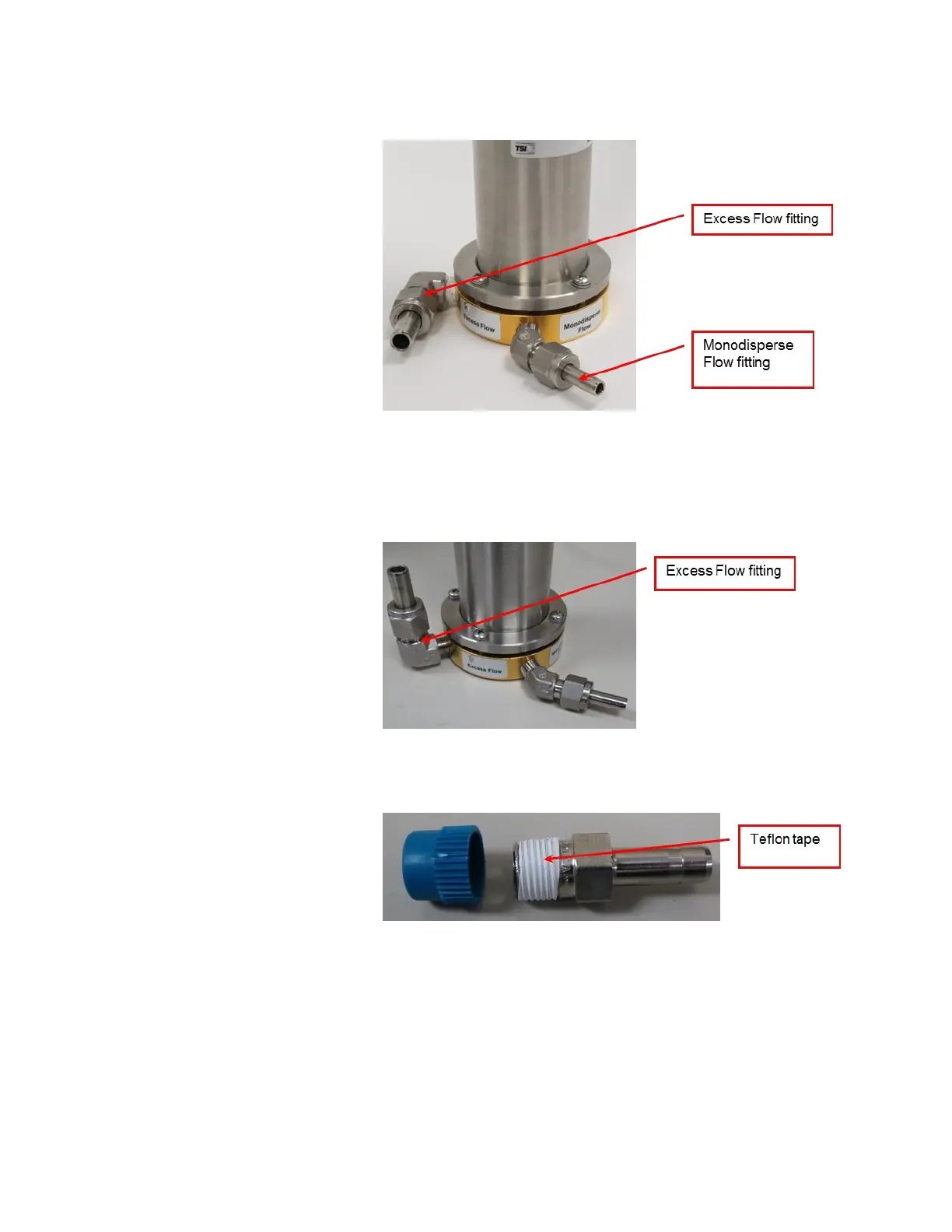

3. Using a wrench, remove the Excess Flow (Sheath Flow –) fitting.
4. Remove any existing Teflon tape from the Excess Flow fitting. Apply
new Teflon tape to the fitting.
5. Replace the Excess Flow fitting on the Long DMA in a vertical
position.
Note: The fitting should be at a 90° turn from its original orientation.
6. Using a wrench, remove the Monodisperse Flow fitting.
7. Remove the protective cap from the new Monodisperse Flow fitting
and apply Teflon tape to the fitting.
