TSI Instruments AIRFLOW Instruments ProHood PH720 User Manual

Chapter 5: Changing Flow Hoods 33

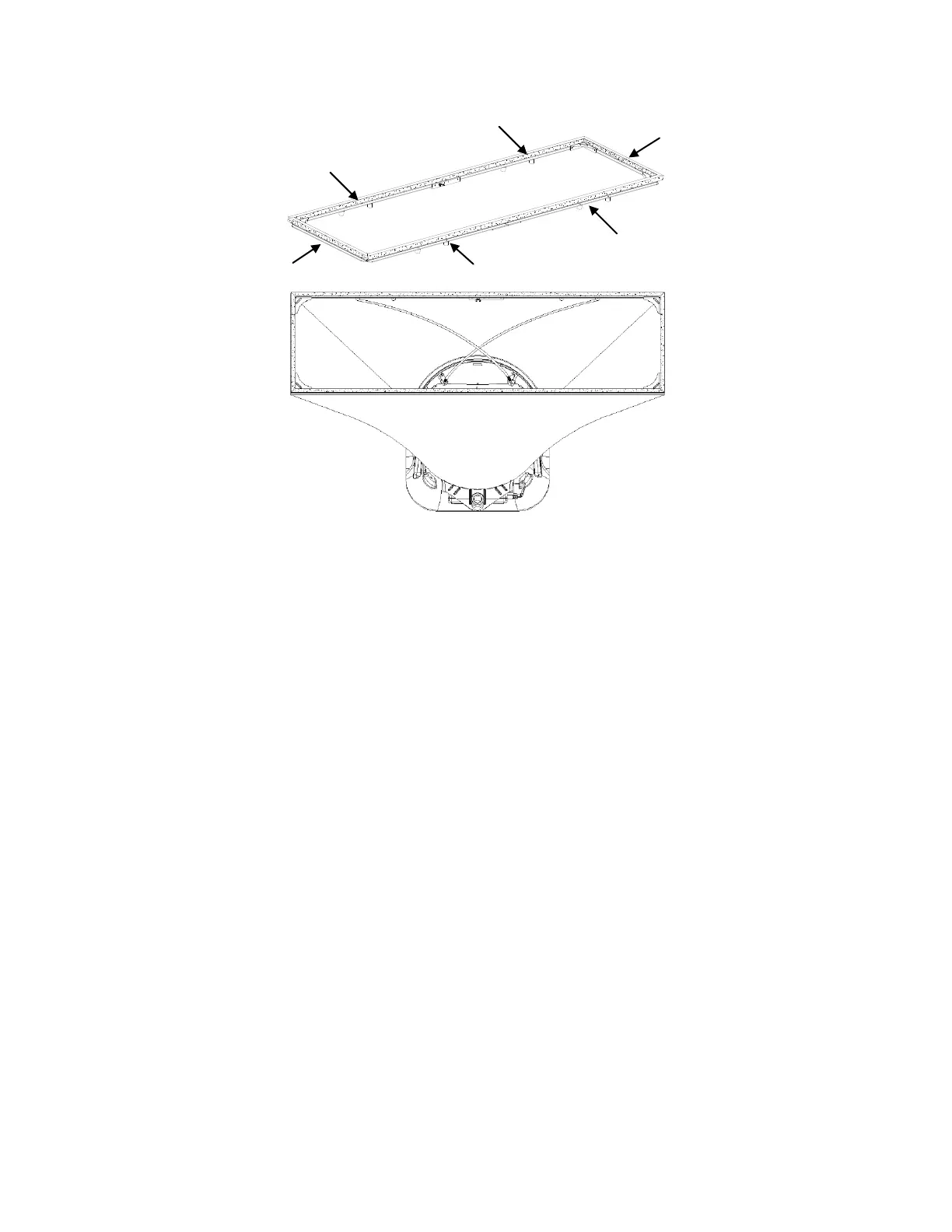

Figure 15: 1 ft × 4 ft (305 mm × 1220 mm) hood and frame. The support poles always cross as
pairs at the front and back of the fabric hood. For the 1 ft
× 4 ft (305 mm × 1220 mm), the support
poles are inserted into the outside ferrule locations.
2
1
3
1
2
3
