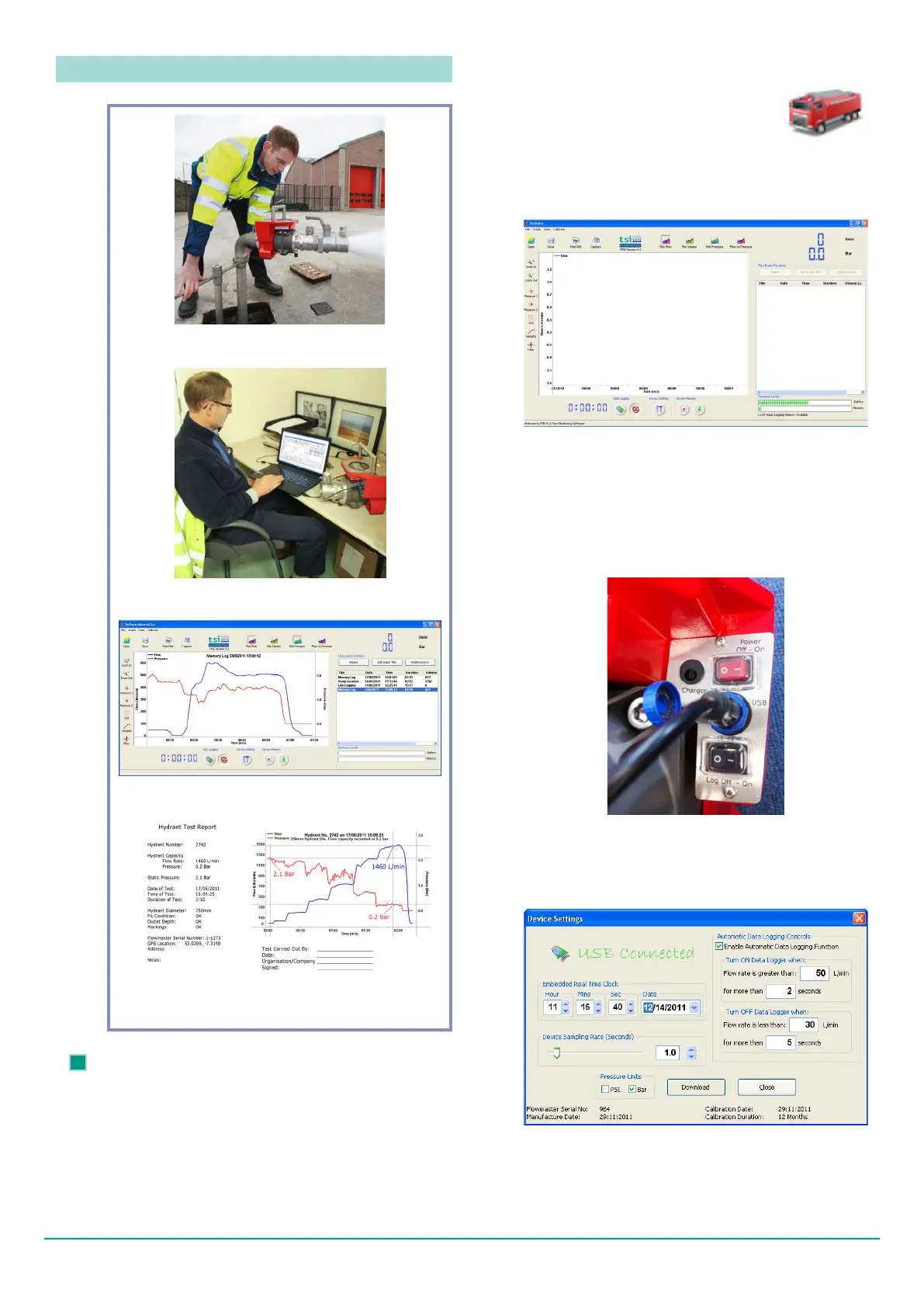

4.5 USING THE DATA LOGGER
Note
This section of the manual is written with the
assumption that the user is familiar with using a PC and
Microsoft Windows software.
For detailed information on using the software,
please refer to the software manual TSI_FMS_
Manualv1_3.pdf.
ESTABLISHING THE LOGGING PARAMETERS4.5.1
Fig. 4.7 Opening window of PC software when the
Flowmaster is connected
Connect the mini-USB end of the cable to the socket
on the Flowmaster control panel.
Connect the other end of the cable to a USB socket
on your PC.
The window shown will appear when the Device
Settings button is clicked.
Fig. 4.9 Flowmaster control panel
1) Measure and record pressure and ow rate.
2) Upload results to PC.
3) Label data for reports.
4) Sample report format.
Connect your Flowmaster to your PC
using the USB cable provided. Start up
the Flow Monitoring software and the
window shown in Fig. 4.7 will appear.
Click on the Device Settings button at the bottom
of the window to access the menu where data logging
parameters can be established.
Device settings cannot be made when the Flowmaster
is not connected. The window shown in Fig. 4.11 will
appear in these circumstances.
Fig. 4.10 Device Settings - USB connected
Version 2.0 (February 2012) TSI Flowmeters Ltd.12
