TSL AMU2-2MA - Audio Output Connector - D25 Plug; Control Connector - D9 Socket

AMU2-2MA MKIII 15 ISSUE 1

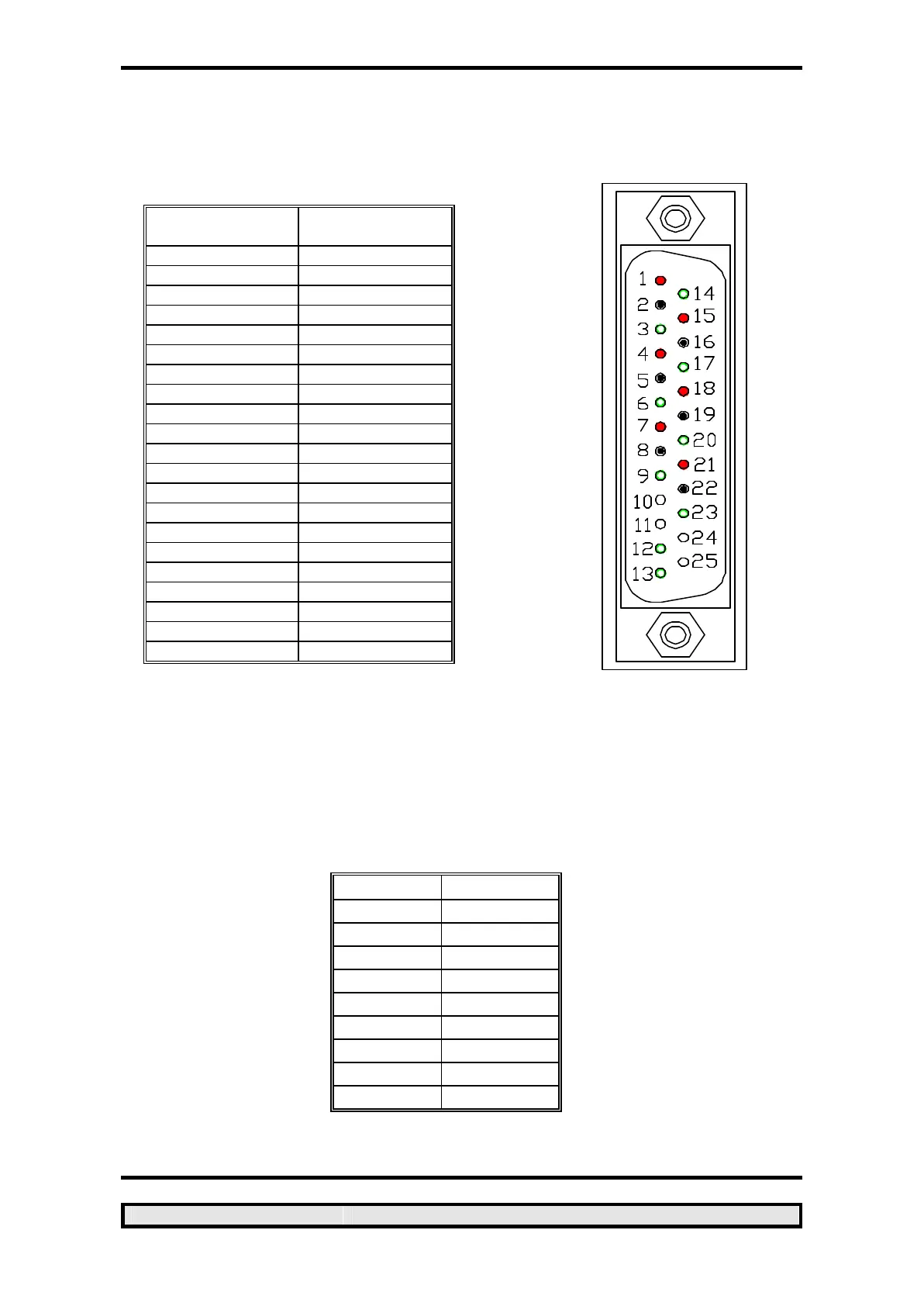

4.4 Audio Output Connector - D25 Plug
D 25 PLUG
ON AMU
AUDIO OUTPUTS
PIN NO FUNCTION
1 A1+ Fixed
14 SCREEN
2 A1- Fixed
15 A2+ FIXED
3 SCREEN
16 A2- FIXED
4 A3+ FIXED
17 SCREEN
5 A3- FIXED
18 A4+ FIXED
6 SCREEN
19 A4- FIXED
7 A1+ VARIABLE
20 SCREEN
8 A1- VARIABLE
21 A2+ VARIABLE
9 SCREEN
22 A2- VARIABLE
23,12,13 SCREEN
4.5 Control Connector - D9 Socket
This is wired for RS422.
D9 CONTROL
1 0V
6 0V
2 TX-
7 TX+
3 RX+
8 RX-
4 0V
9 0V
5 N/C
