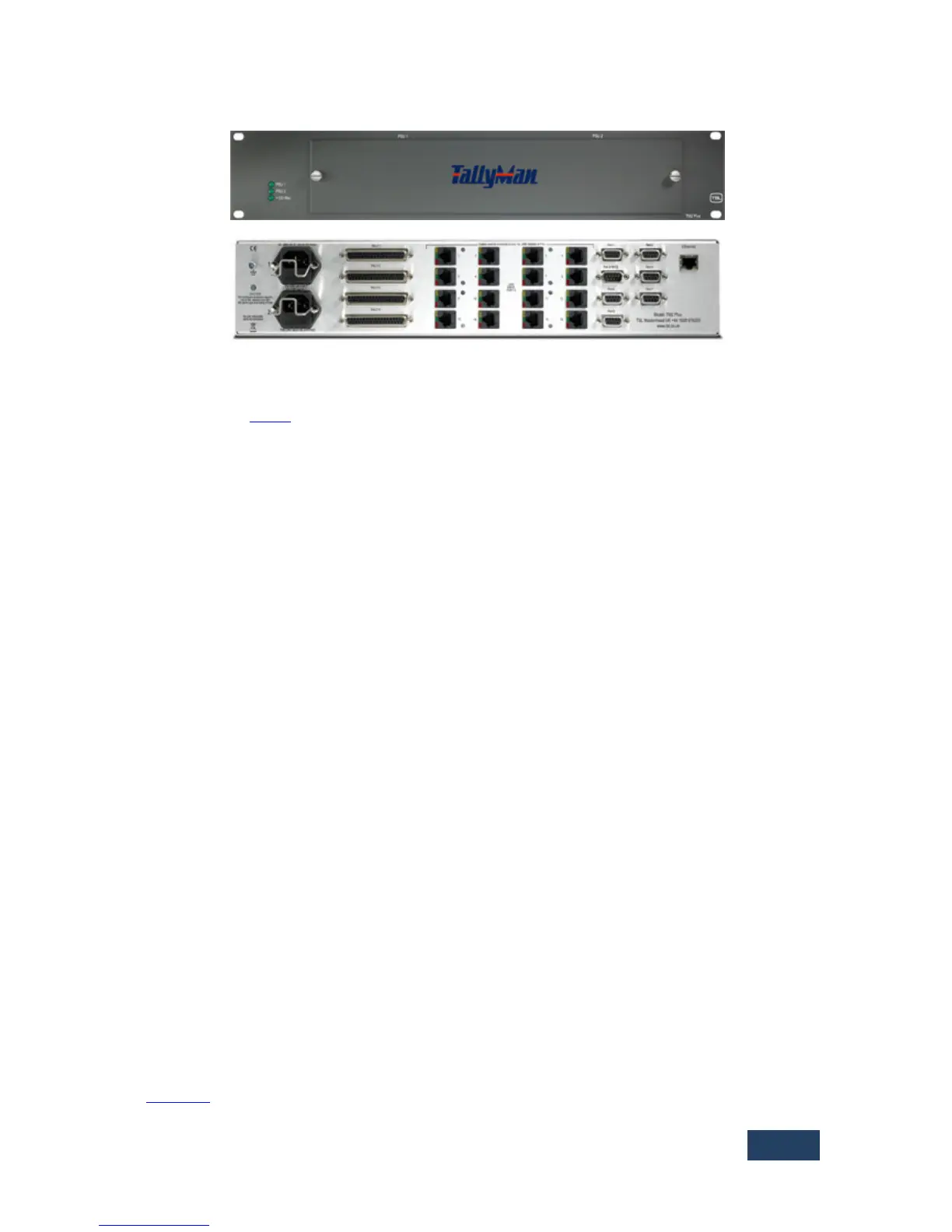

TM2+
The TallyMan controller should be installed in a standard 19” rack with good ventilation, no other
special precautions need be taken, further information regarding earthing, mounting, power etc may
be found in the Safety section.
Connections
Tally 1 This is for the parallel input tallies. 1 – 32
Tally 2 This is for the (isolated relay) parallel output tallies 1-16
Tally 3 This is for the (isolated relay) parallel output tallies 17-32
Tally 4 This is for the (isolated relay) parallel output tallies 33-48
Control 1 RS422 – User Assignable. Used for Mixer/Router/Multiviewer connection
Control 2 RS422 – User Assignable. Used for Mixer/Router/Multiviewer connection
Control 3 RS232 – User Assignable. Used for Serial configuration of Controller Network settings
and available for Mixer/Router/Multiviewer connection
Control 4 RJ45 UMD Display Ports - Power and RS422 serial data is available from these ports.
Control 5 RS422 – User Assignable. Used for Mixer/Router/Multiviewer connection
Control 6 RS422 – User Assignable. Used for Mixer/Router/Multiviewer connection
Control 7 RS422 – User Assignable. Used for Mixer/Router/Multiviewer connection
Control 8 RS422 – User Assignable. Used for Mixer/Router/Multiviewer connection
Ethernet This is for configuration via the configuration PC and network comms with IP capable
devices.
Power The unit is powered via an IEC 60320 C14 coupler. The inlet is auto ranging 100-
240V. No cable is supplied with this device.
