TallyMan V1.81 on
|
Installation
28
Default IP
The default IP parameters
of TSL Tally
man controllers are:
IP Address:
192.168.205.121
Subnet Mask:
255.255.255.0
Connection for configurati
on purposes is via a
PC running TallyMan, availabl
e for download from the
TSL website
www.TSL.co.u
k
Initial setup
Connect a PC running a t
erminal program (H
yper terminal/Putty/Tera
Term Pro for exa
mple) to the
Maintenance Port,
Port 3 on the TallyMan controll
er.

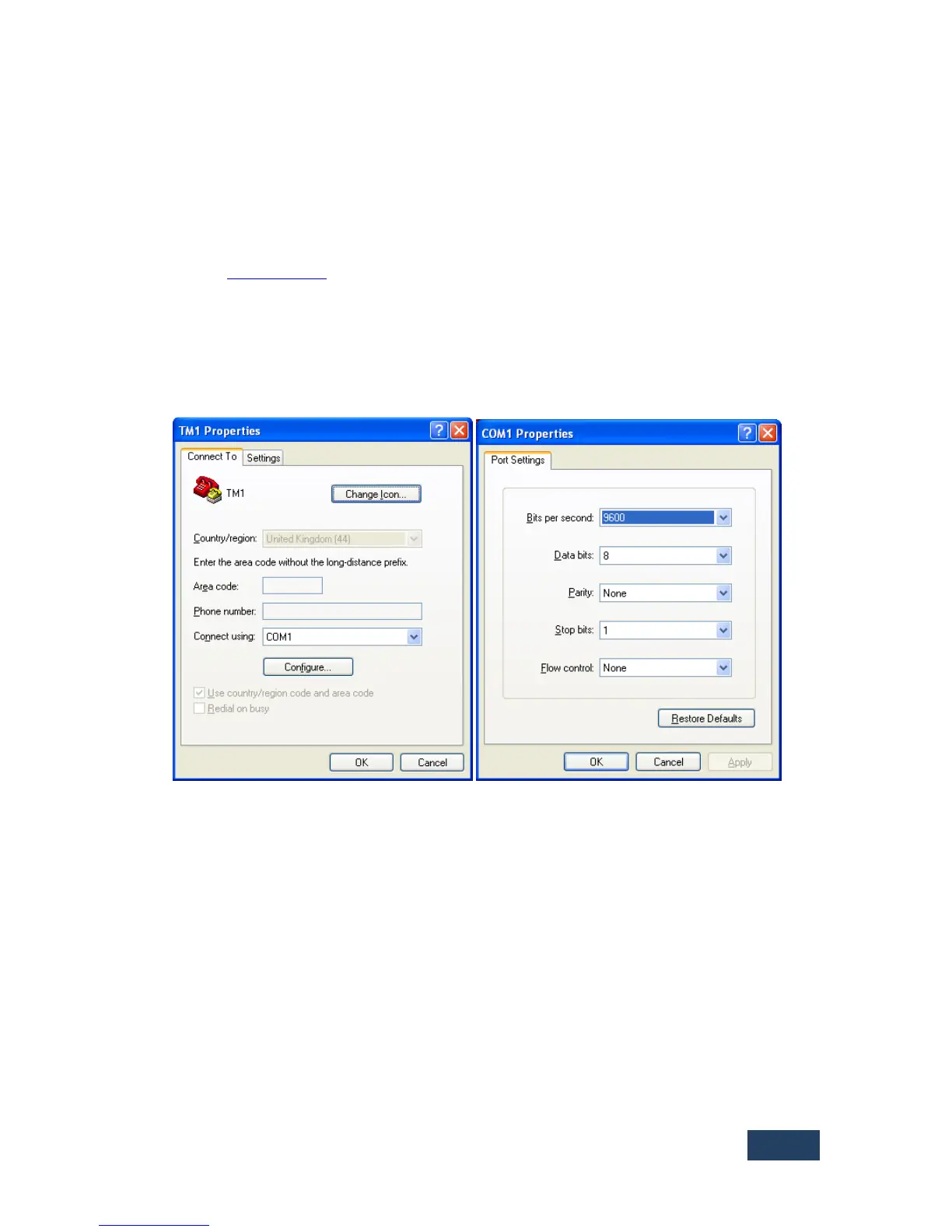

HyperTerminal Settings
27
29
Table of Contents
Table of Contents
2
Introduction
4
Installation
5
Tm1
5
Connections
5
Pin out Details
6
Default IP
10
Initial Setup
10
Tm2
13
Connections
13
Pin out Details
14
Default IP
18
Initial Setup
18
Tm2
21
Connections
21
Pin out Details
22
Default IP
28
Initial Setup
28
Tmc-1
31
Connections
31
Pin out Details
32
Default IP
34
Initial Setup
34
Specification
35
Tm1
35
Internal Power Supply Specification
35
Tm2
36
Internal Power Supply Specification
36
Tm2
38
Internal Power Supply Specification
38
Tmc-1
39
Internal Power Supply Specification
39
Motherboard
40
Cpu
40
Memory
40
Disk Drive (Solid State)
40
Safety
41
Installation
41
Earthing/Grounding
41
Mounting
41
Power
41
Ventilation
41
EC Declaration of Conformity
42
Warranty, Maintenance and Repair
43
Failure During Warranty
43
Technical Support Information
43
TSL Returns Procedure
43
Fault Report Details Required
43
