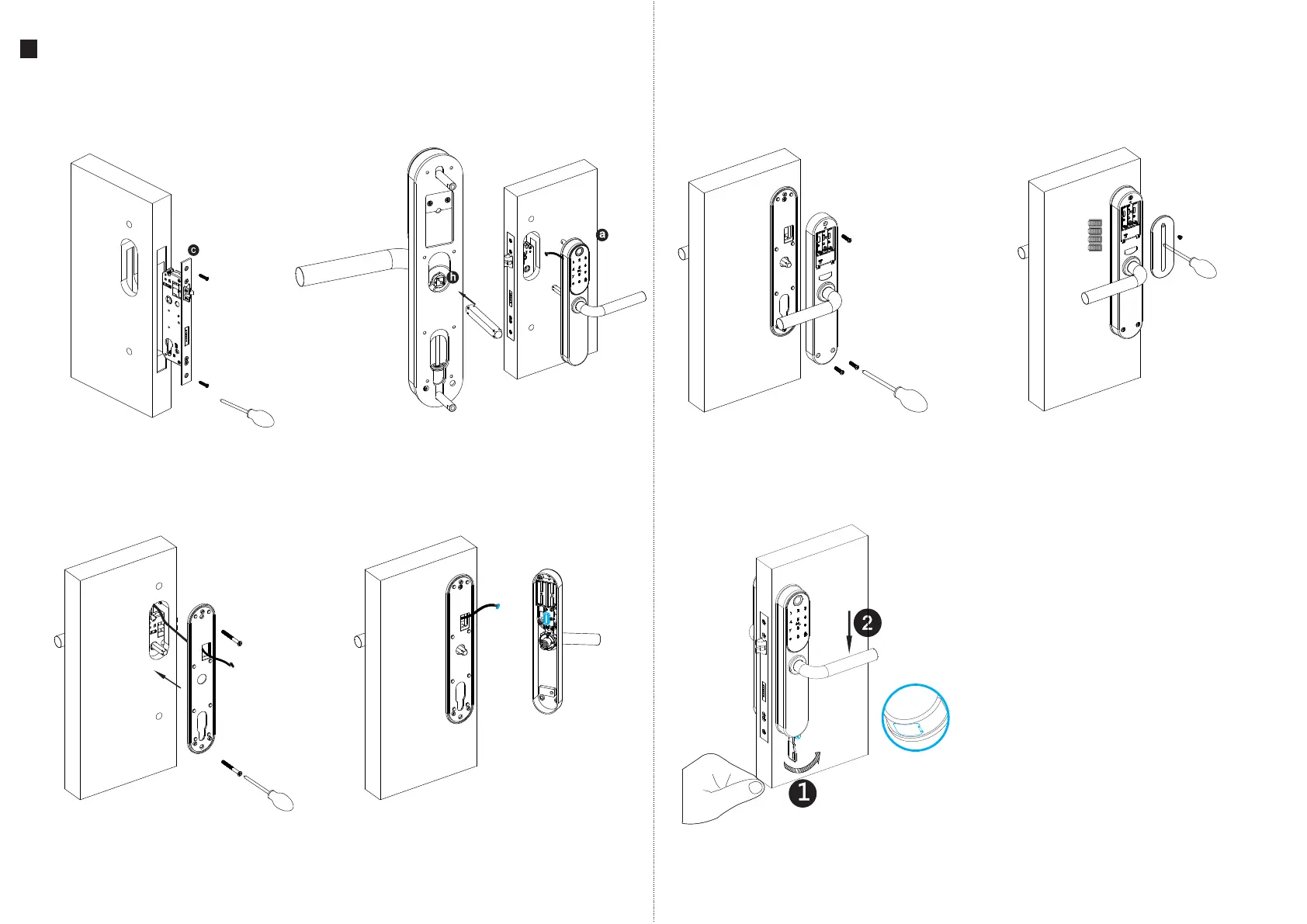

6.1 Assemble the Mortise

INSTALLLATION STEPS

Assemble the mortise( ) into the slot which c

is drilled according to the template.

6.2 Assemble the Front Panel

1. Press hard the spindle (h) into the handle hole.

2. Fix the front panel(a) on the door and cross the

cable through the hole.

6.3 Fix the Back Cover Plate

Tighten the screw for the back cover plate

with the front panel solenoid.

6.4 Connect the Cable

Connect the cable with the board on

the rear panel.

6.5 Fix the Lock Panel

6.6 Assemble the Battery Box

6.7 Unlock the Lock with Manual Key

1.Pull the silicone on the front panel B-B

2.Insert the manual key and turn 90 degree

then press down the handle to unlock the door.

Tight the back panel with front panel with the

three long screws.

Insert 4 pcs AAA alkaline batteries and fix the cover

with screws as shown in the picture

B-B
