TUFFA TANKS 30000VBFS - Product Dimensions; 4.3 Product Dimensions (Models 1350 SLBFS & 2500 HBFS)

6 7

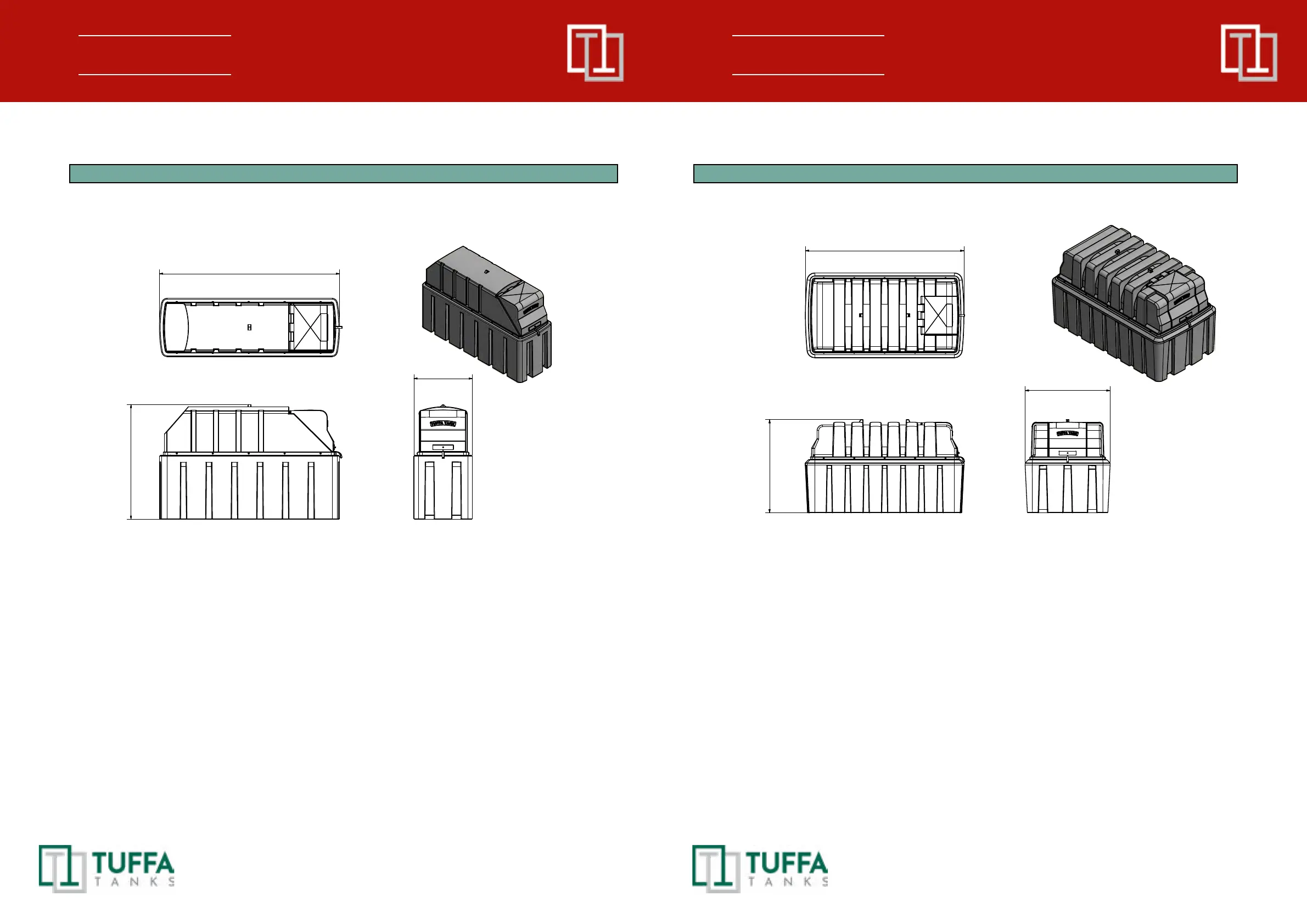

4.3 Product dimensions
1350SLBFS
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
1350 BUNDED
DESIGNED BY CHECKED BY APPROVED BY
DATE DATE
Rob Smith J Shenton J Shenton
11/06/2020 10/06/2020
ISSUE SHEET
D
1 / 1
MATERIAL
LLDPE
1665 mm
870 mm
2680 mm
4. PRODUCT DESCRIPTION
2500HBFS
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
2500 BUNDED
DESIGNED BY CHECKED BY APPROVED BY
DATE DATE
Rob Smith J Shenton J Shenton
11/06/2020 10/06/2020
ISSUE SHEET
D
1 / 1
MATERIAL
LLDPE
2840 mm
1630 mm
1520 mm
4. PRODUCT DESCRIPTION
