10
CFM-550 Compact Frontal Machine

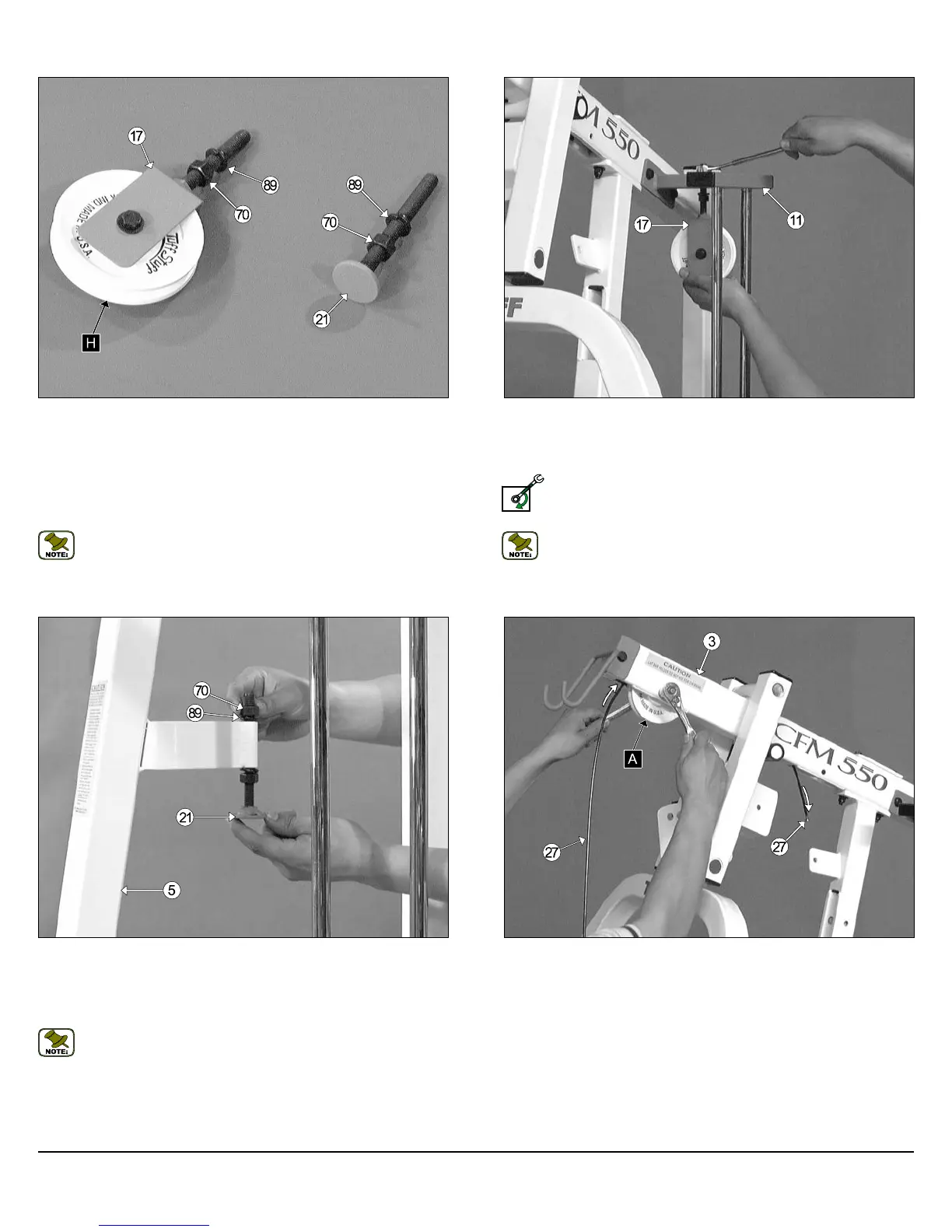

Fig. 32 Assemble the Adjustable Pulley Bracket (#17) using one
Nylon Pulley 4-1/2 Rd. (#45-Labeled H), one Hex Head Cap Screw 3/8-16
X 1-3/4 (#73), two Flat Washers SAE 3/8” (#60), and one Nylon Insert
Jam Lock Nut 3/8-16 (#68). Next, thread a Regular Hex Nut 1/2-13 (#70),
and insert one Split Washer B.O. 1/2” (#89) onto the welded Hex Tap Bolt.
Next, locate the Adjustable Stopper (#21) then thread a Regular Hex Nut
1/2-13 (#70), and insert one Split Washer B.O. 1/2” (#89) onto the welded
Hex Tap Bolt.
Note: The black boxed letters pointing to the pulleys are used
throughout this manual as reference to the Cable Mapping Diagram
on page 20. These black boxed letters will be primarily used for
locating certain pulleys during the cable routing process beginning
with Fig. 32.
FIG. 33 Insert the welded bolt of the Adjustable Pulley Bracket (#17)
through the hole located on the Guide Rod Retainer Housing (#11) and
secure it into place at the top using one Flat Washer SAE 1/2” (#61), and
one Nylon Insert Jam Lock Nut 1/2-13 (#71).
Loosely Fasten: Do not completely fasten this hardware assem-
bly at this time, as it will be completely fastened later in the as-
sembly process.
Note: Refer to Fig. 65 on page 19 for further clarification of this
assembly.
LOOSELY FASTEN
FIG. 35 Insert one Nylon Pulley 4-1/2 Rd. (#45-Labeled A) into the Top
Pulley Housing (#3), in the position as shown above, and secure it into
place using one Hex Head Cap Screw 3/8-16 X 2-1/2 (#74), two Flat
Washers SAE 3/8” (#60), and one Nylon Insert Jam Lock Nut 3/8-16
(#68). Next, begin routing the Lat Cable (#27) over the Nylon Pulley 4 1/2
Rd. (#45-Labeled A) and into the tube of the Top Pulley Housing (#3), as
shown above.
FIG. 34 Insert (from bottom to top) the Adjustable Stopper (#21) into
the receptacle of the Front Upright (#5) and secure it into place using
one Split Washer B.O. 1/2” (#89), and one Regular Hex Nut 1/2-13 (#70),
as shown above. Loosely fasten the Regular Hex Nuts 1/2-13 (#84) to
allow adjustment of cable’s tension later in the assembly process.
Note: Refer to Fig. 66 on page 19 for further clarification of this
assembly.
Owner’s Manual: Assembly Instructions
