TuffStuff CFM-550 - Press Bar Mechanism Assembly; Leg Extension Axle and Press Bar Housing; Pivot Axle and Housing Caps for Press Bar

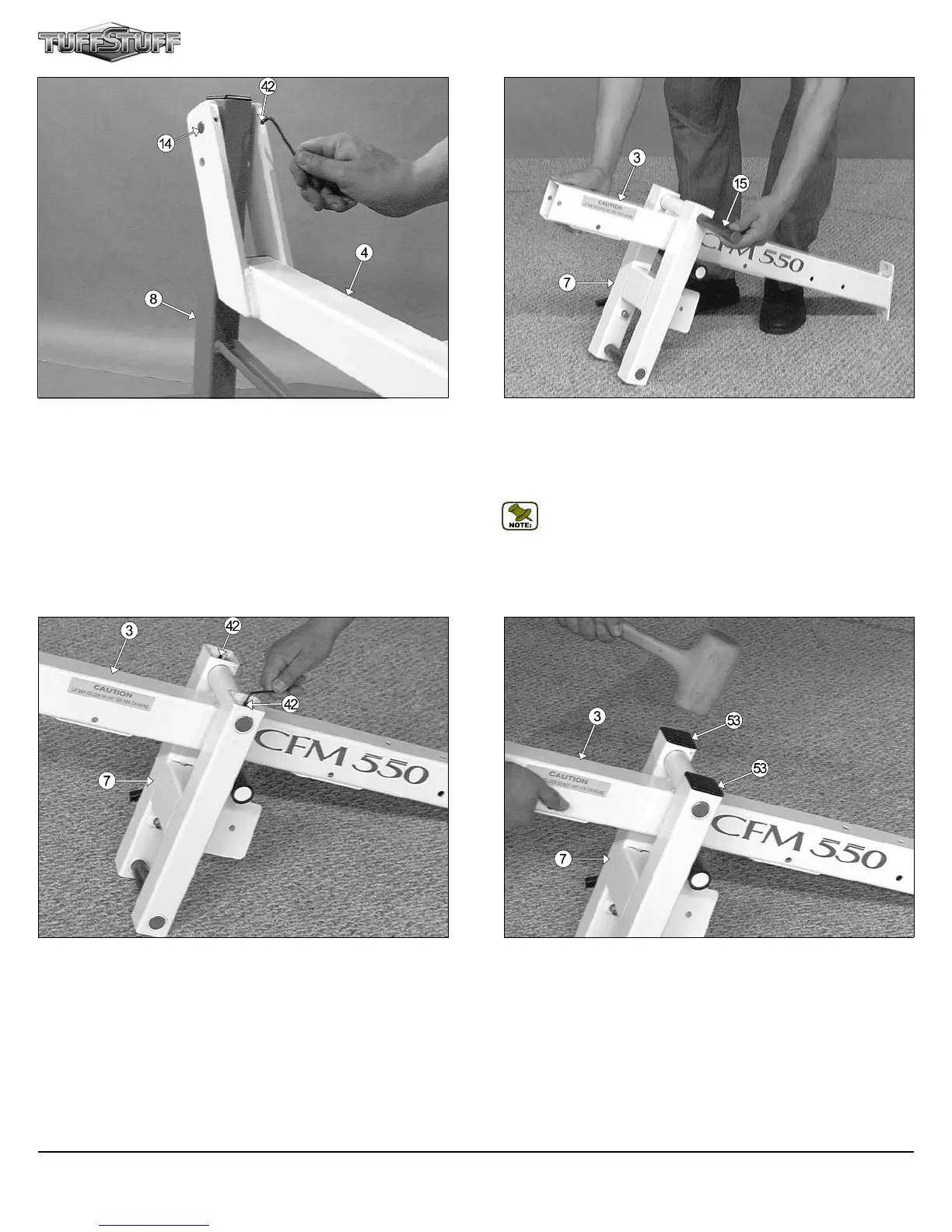

FIG. 15 Using a rubber mallet, insert two Plastic Insert Caps 2” Sq.
(#53) into the tube-ends of the Press Bar Selector Housing (#7), as
shown above.
FIG. 12 Next, secure the Leg Extension Axle 1/2 X 2-3/4 (#14) to the
Leg Extension Bench Frame (#4) using two Set Screws 1/4-20 X 3/8
(#42), as shown above. Use the supplied Hex Key 1/8” (#86) for fastening
these Set Screws.
FIG. 13 Insert the Press Bar Selector Housing (#7), in the position as
shown above, to the Top Pulley Housing (#3) and secure it into place by
inserting a Pivot Axle 1 X 8-1/8 (#15) through the receptacle of the Press
Bar Selector Housing (#2) and the Top Pulley Housing (#5) until the
axle becomes flush with both sides of the Press Bar Selector Housing
(#7)
Note: It is recommended to grease the Pivot Axle 1 X 8-1/8 (#15)
with multi-purpose grease prior to assembling.
FIG. 14 Next, secure the Pivot Axle 1 x 8-1/8 (#15) to the Press Bar
Selector Housing (#7) using two Set Screws 1/4-20 X 3/8 (#42), as
shown above. Use the supplied Hex Key 1/8” (#86) for fastening these
Set Screws.
CFM-550 Compact Frontal Machine
5
