TuffStuff CFM-550 - Weight Stack Completion and Housing Installation; Completing Weight Stack Assembly; Guide Rods and Retainer Housing Connection

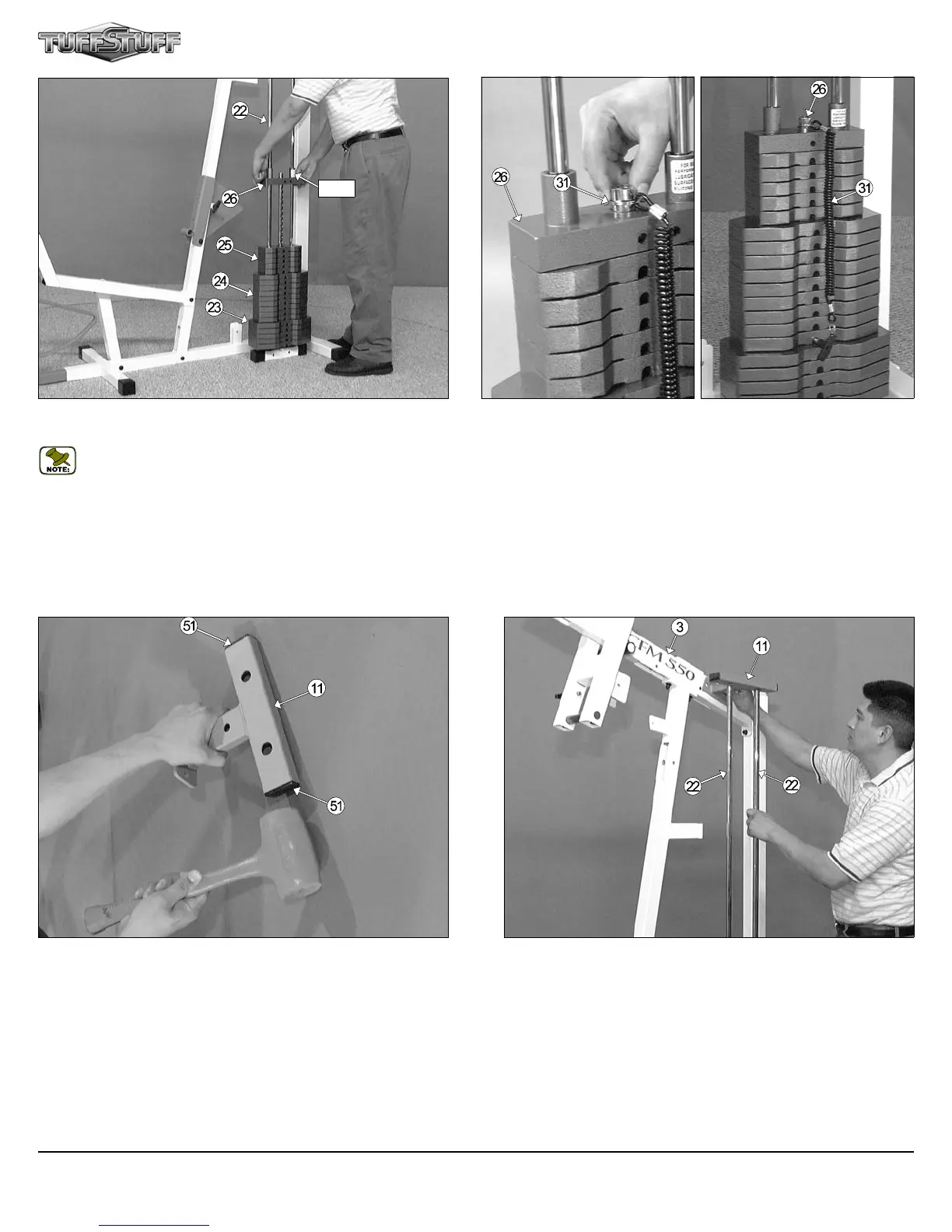

FIG. 20 Now slide the Top Plate/Selector Bar (#26) over the Guide
Rods (#22) allowing it to come to rest on the completed weight stack.
Note: Be sure the Label located on the Top Plate/Selector Bar
(#26) is facing toward you before you slide the Top Plate/Selector
Bar (#26) over the Guide Rods 3/4 X 72 (#22).
FIG. 22 Locate the Guide Rod Retainer Housing (#11) and, using a
rubber mallet, insert two Plastic Insert Caps 1 X 2 ( #51) into the tube-
ends, as shown above.
FIG. 21 Next, locate the Selector Pin w/Coil (#31) and slide its ring
over the Selector Bar (#26) as shown above.
CFM-550 Compact Frontal Machine
7
Label
FIG. 23 Maneuver each one of the Guide Rods (#22) into the holes lo-
cated on the bottom side of the Guide Rod Retainer Housing (#11), as
shown above.
