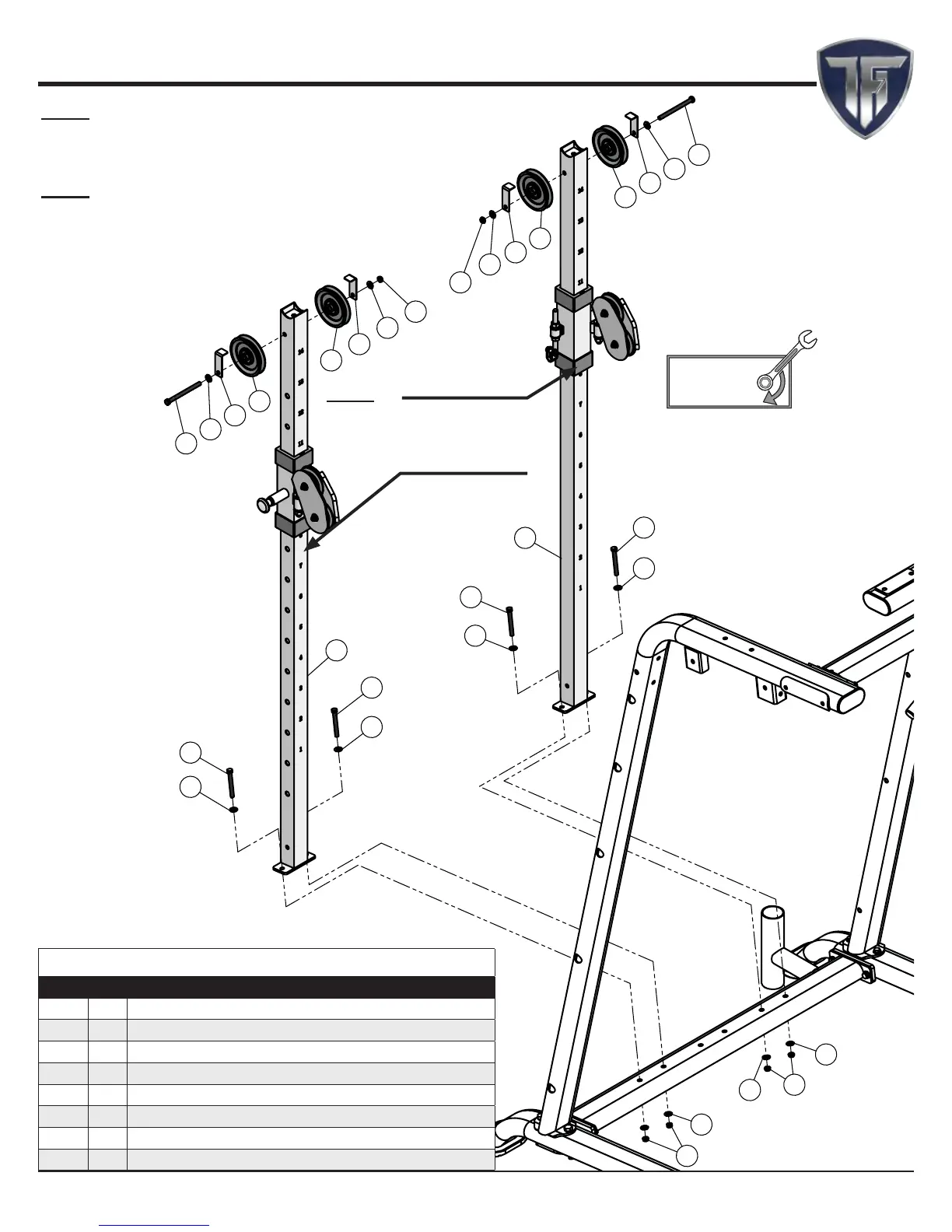

Step 3 Assembly List
Item Qty. Description
4 1 SELECTOR POST LT
5 1 SELECTOR POST RT
22 4 NYLON PULLEY 3/8 X 1 X 4 1/2 BLACK
28 4 CABLE RETAINER BRACKET
36 4 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 3
39 2 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 4 3/4
42 12 FLAT WASHER SAE Z/P 3/8"
46 6 NYLON INSERT THIN PATTERN LOCK NUT Z/P 3/8-16
Note:
It is strongly recommended that two
people participate in this assembly step.
Step 3
Note:
Position reference numbers
facing toward the front of
the unit.
Note:
Some parts have been removed for Clarity.
Loosely Tighten
70%
Loosely Tighten
70%
Loosely tighten all hardware in this step.
DO NOT Fully Tighten. Some component(s)
may need pre-assembly and or alignment
during the assembly process.
13CHL-610WS High/Low Pulley w/200 Lbs Weight Stack for CSM-600
www.tuffstuffi tness.com
To Next Page
