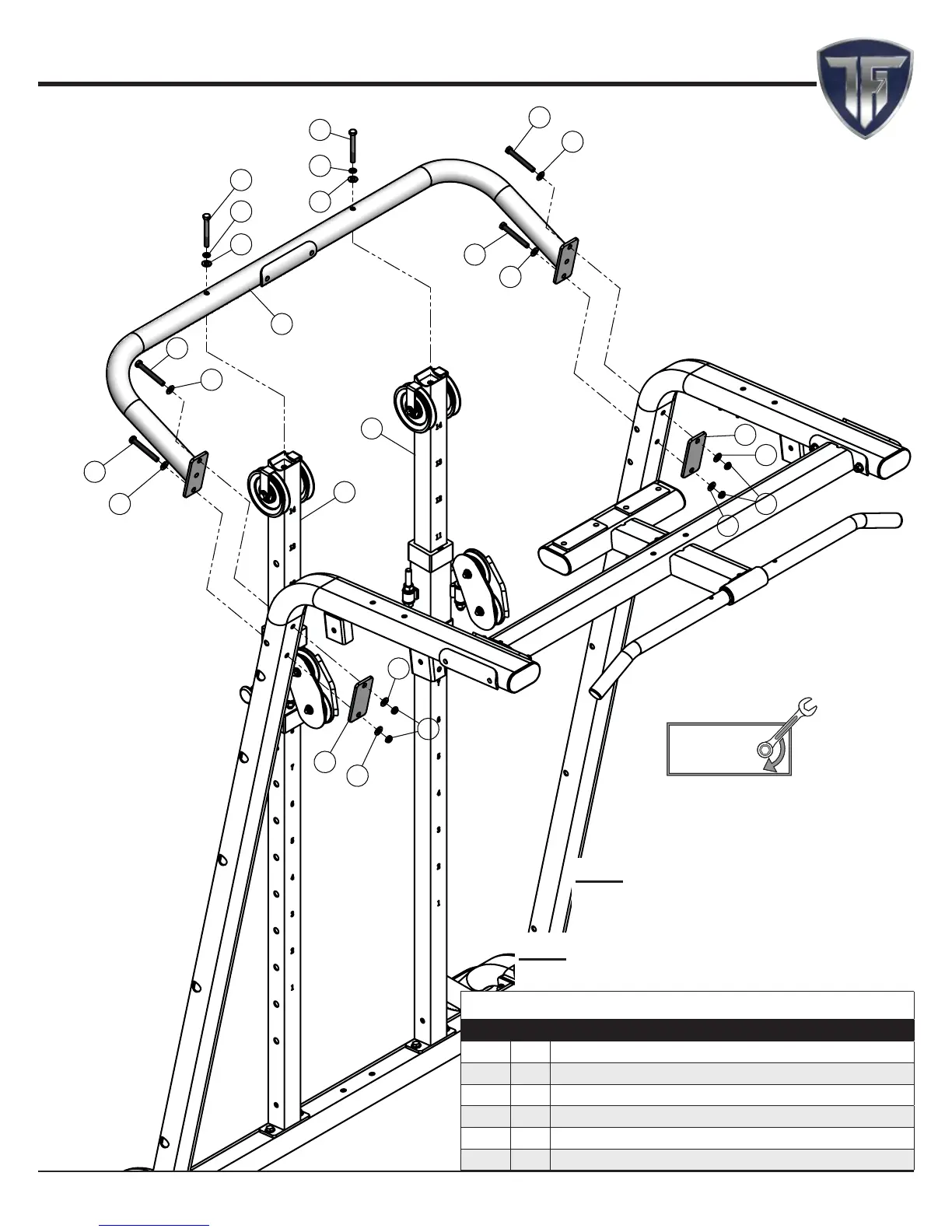

Step 4 Assembly List
Item Qty. Description
3 1 TOP HIGH/LOW CROSS BRACE
17 2 REIFORCEMENT PLATE 1/4 X 2 X 4 1/2
36 6 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 3
42 10 FLAT WASHER SAE Z/P 3/8"
43 2 SPLIT LOCK WASHER Z/P 3/8"
46 4 NYLON INSERT THIN PATTERN LOCK NUT Z/P 3/8-16
Step 4
Note:
It is strongly recommended that two
people participate in this assembly step.
Note:
Some parts have been removed for Clarity.
Loosely Tighten
70%
Loosely Tighten
70%
Loosely tighten all hardware in this step.
DO NOT Fully Tighten. Some component(s)
may need pre-assembly and or alignment
during the assembly process.
14 CHL-610WS High/Low Pulley w/200 Lbs Weight Stack for CSM-600
www.tuffstuffi tness.com
