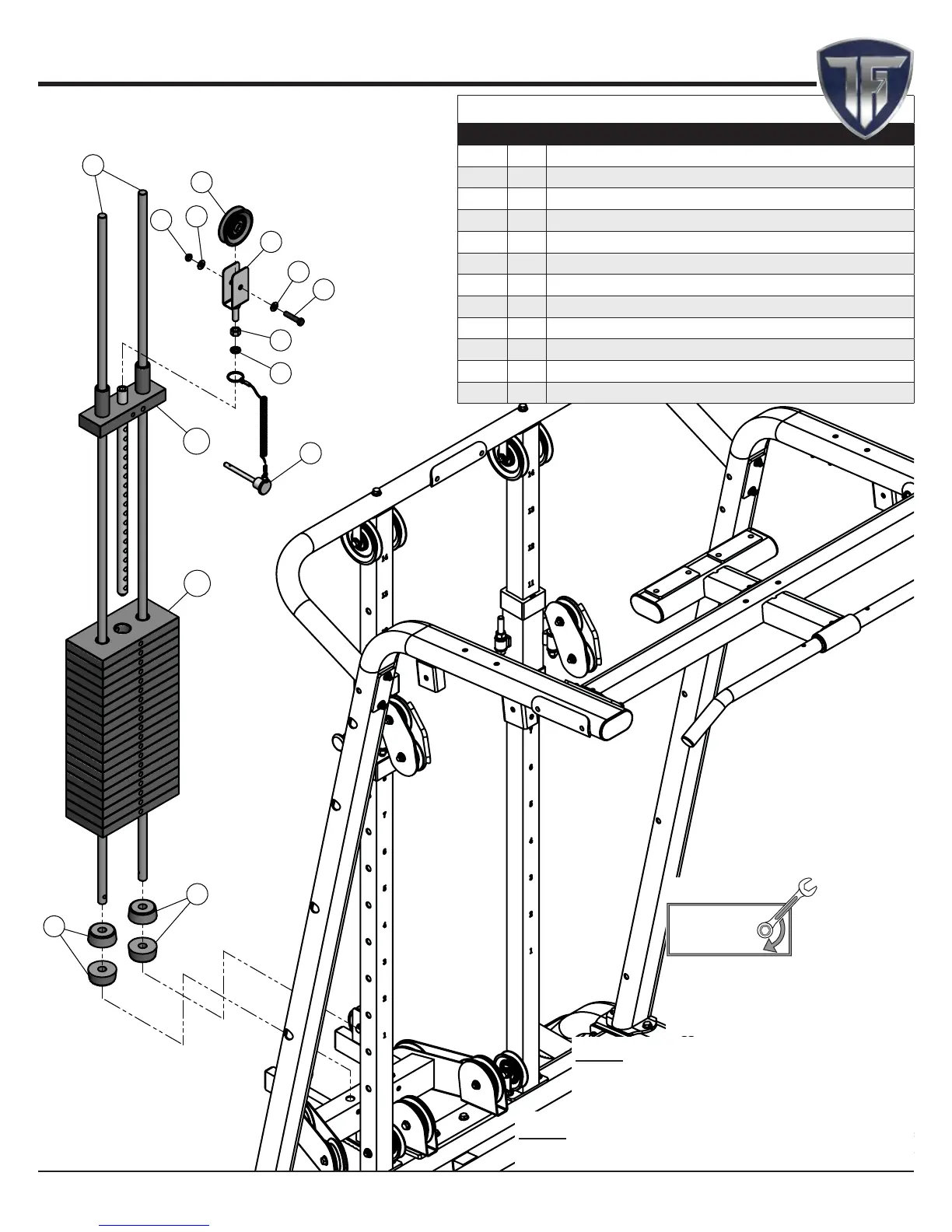

Step 7 Assembly List
Item Qty. Description
16 2 GUIDE ROD 3/4 X 73 5/8
30 4 RUBBER DONUT 3/4 X 2 1/2
48 1 SELECTOR PIN W/COIL 3/8 X 4 GOLD KNOB
44 1 SPLIT LOCK WASHER Z/P 1/2"
47 1 FINISHED HEX NUT Z/P 1/2-13
12 1 ADJUSTABLE PULLEY BRACKET
21 1 BLACK NYLON PULLEY 3/8 X 1 X 3 1/2
32 1 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 1 3/4
42 2 FLAT WASHER SAE Z/P 3/8"
46 1 NYLON INSERT THIN PATTERN LOCK NUT Z/P 3/8-16
*20 1 10 LB TOP PLATE W/22" SLTR BAR 19 BLK WTS ASSY
*57 19 10 LB STEEL WEIGHT PLATE BLK 4 9/16 X 9 7/16 ASM
Note:
Some parts have been removed for Clarity.
Note:
It is strongly recommended that two
people participate in this assembly step.
Loosely Tighten
70%
Loosely Tighten
70%
Loosely tighten all hardware in this step.
DO NOT Fully Tighten. Some component(s)
may need pre-assembly and or alignment
during the assembly process.
Step 7
17CHL-610WS High/Low Pulley w/200 Lbs Weight Stack for CSM-600
www.tuffstuffi tness.com
To Next Page
