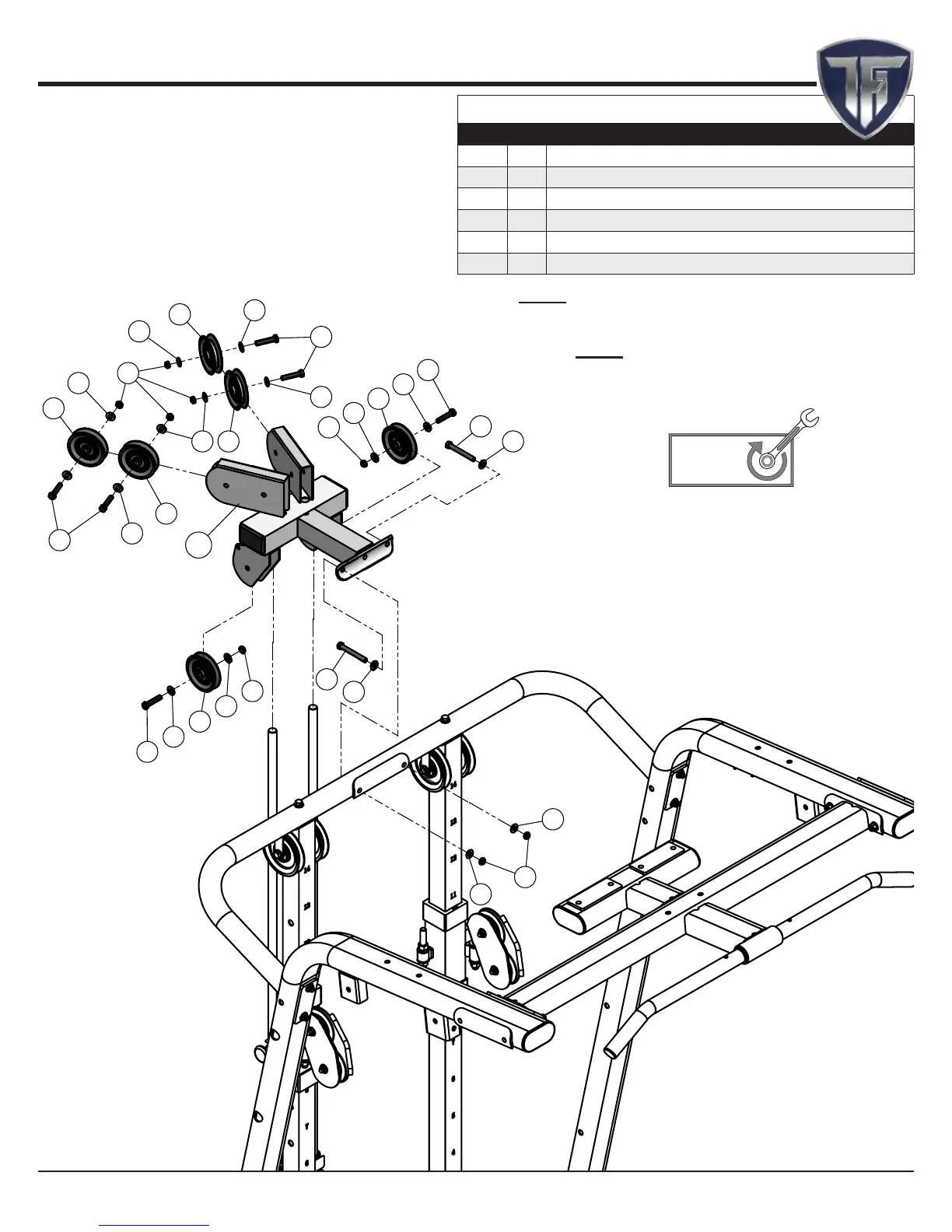

Step 8 Assembly List
Item Qty. Description
21 6 BLACK NYLON PULLEY 3/8 X 1 X 3 1/2
32 6 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 1 3/4
42 16 FLAT WASHER SAE Z/P 3/8"
46 8 NYLON INSERT THIN PATTERN LOCK NUT Z/P 3/8-16
36 2 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 3
*2 1 TOP GUIDE ROD RETAINER ASSEMBLY
Note:
Some parts have been removed for Clarity.
Note:
It is strongly recommended that two
people participate in this assembly step.
100%
Fully Tighten
Wrench tighten all hardware in this step.
Step 8
18 CHL-610WS High/Low Pulley w/200 Lbs Weight Stack for CSM-600
www.tuffstuffi tness.com
To Next Page
