32
42
22
42
46
32
42
22
42
46
35
42
42
*7
*6
36
42
42
36
*6
42
42
46
42
42
42
46
42
46
36

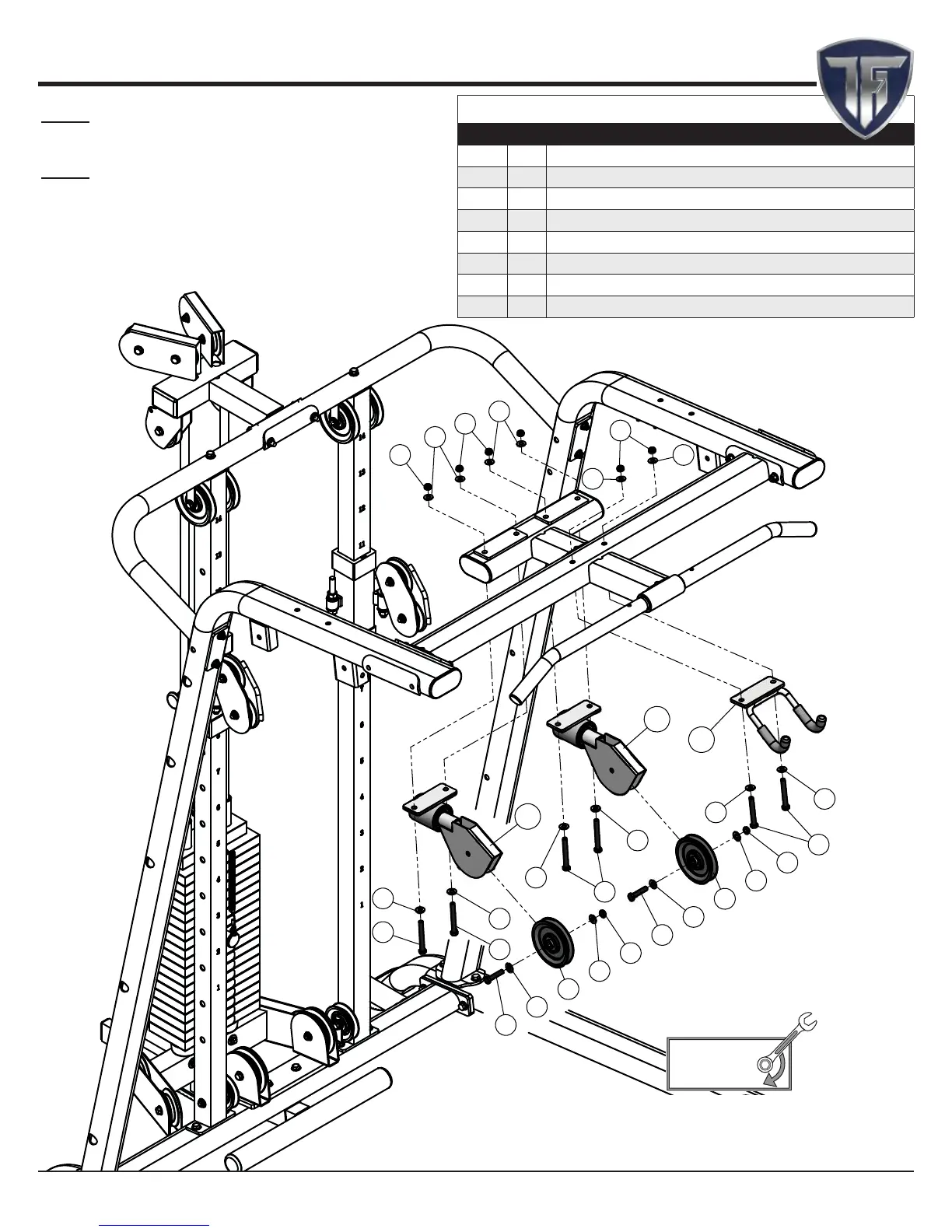

Step 11 Assembly List
Item Qty. Description
36 4 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 3
35 2 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 2 3/4
22 2 NYLON PULLEY 3/8 X 1 X 4 1/2 BLACK
32 2 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 1 3/4
42 16 FLAT WASHER SAE Z/P 3/8"
46 8 NYLON INSERT THIN PATTERN LOCK NUT Z/P 3/8-16
*6 2 TOP SWIVEL PULLEY BRACKET ASSEMBLY
*7 1 LAT HOLDER ASSEMBLY
Note:
Some parts have been removed for Clarity.
Note:
It is strongly recommended that two
people participate in this assembly step.
Loosely Tighten
70%
Loosely Tighten
70%
Loosely tighten all hardware in this step.
DO NOT Fully Tighten. Some component(s)
may need pre-assembly and or alignment
during the assembly process.
Step 11
21CHL-610WS High/Low Pulley w/200 Lbs Weight Stack for CSM-600
www.tuffstuffi tness.com
To Next Page
