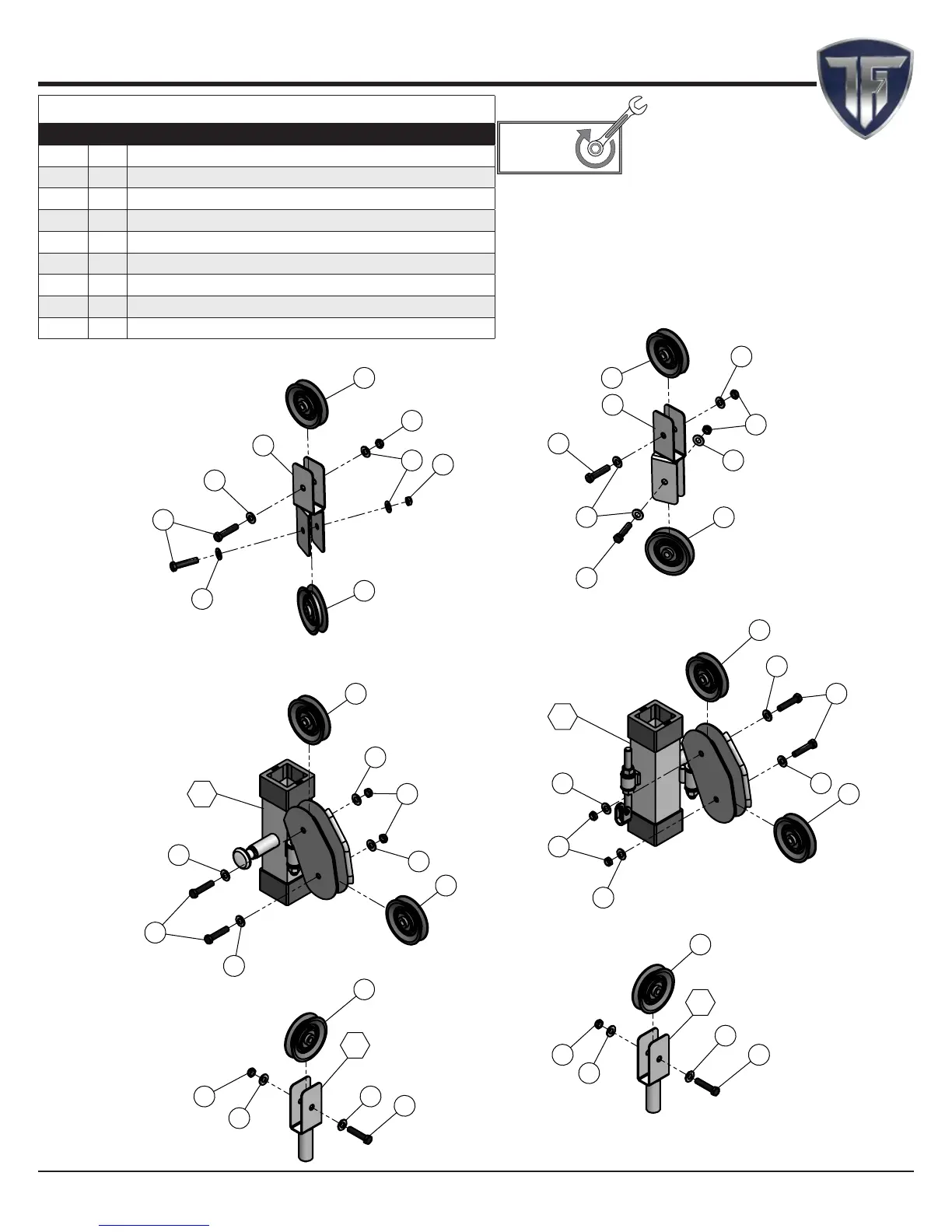

Step 12 Assembly List
Item Qty. Description
14 1 FLOATING DOUBLE PULLEY BRACKET LT
15 1 FLOATING DOUBLE PULLEY BRACKET RT
21 10 BLACK NYLON PULLEY 3/8 X 1 X 3 1/2
32 10 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 1 3/4
42 20 FLAT WASHER SAE Z/P 3/8"
46 10 NYLON INSERT THIN PATTERN LOCK NUT Z/P 3/8-16
*10 1 CARRIAGE LT ASSEMBLY
*11 1 CARRIAGE RT ASSEMBLY
*13 2 FLOATING ADJUSTABLE PULLEY BRACKET ASM
100%
Fully Tighten
Wrench tighten all hardware in this step.
Step 12
22 CHL-610WS High/Low Pulley w/200 Lbs Weight Stack for CSM-600
