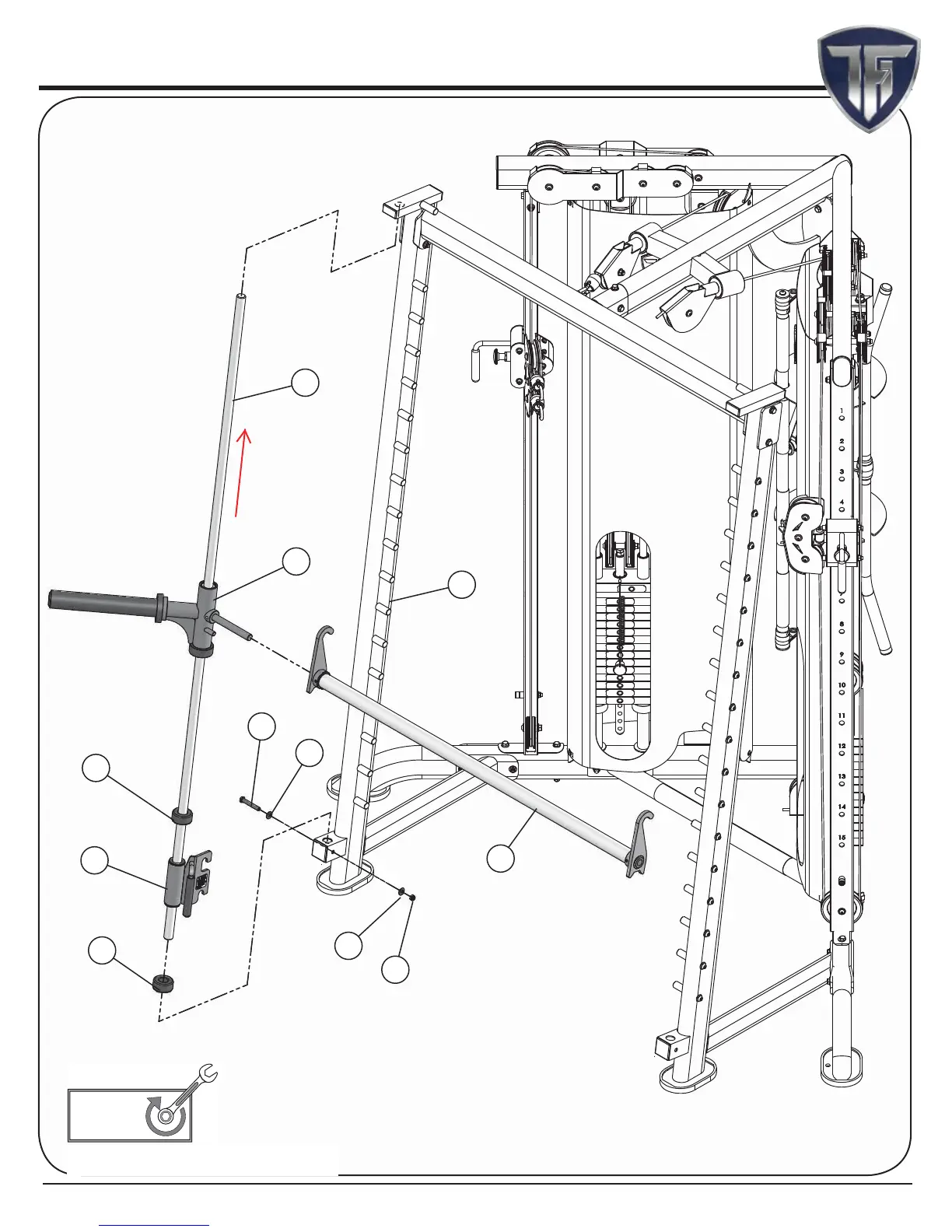

TuffStuff CXT-225 - Assembly Instructions: Step 2; Linear Shaft & Lift Bar Assembly

CXT-225 Smith Press Attachment
www.tu stu tness.com
Step 2
16
1
8
23
33
23
27
12
39
3
39
5
100%
Fully Tighten
Fully Tighten
Wrench tighten all hardware in this step.
Note:
1. Once linear shaft (#1) is in place, raise it to assemble
hardware shown below.
