TuffStuff MFT-2700 - Assembly Step 1: Main Frame Components; Assembly List for Step 1

MFT-2700 Multi-Funtional Trainer
23
74
45
74
45
23
45
34
45
34
88
30
44
30
44
88
17
14
10
23
74
45
74
45
23
45
34
45
34
88
30
44
30
44
88
17
14
10

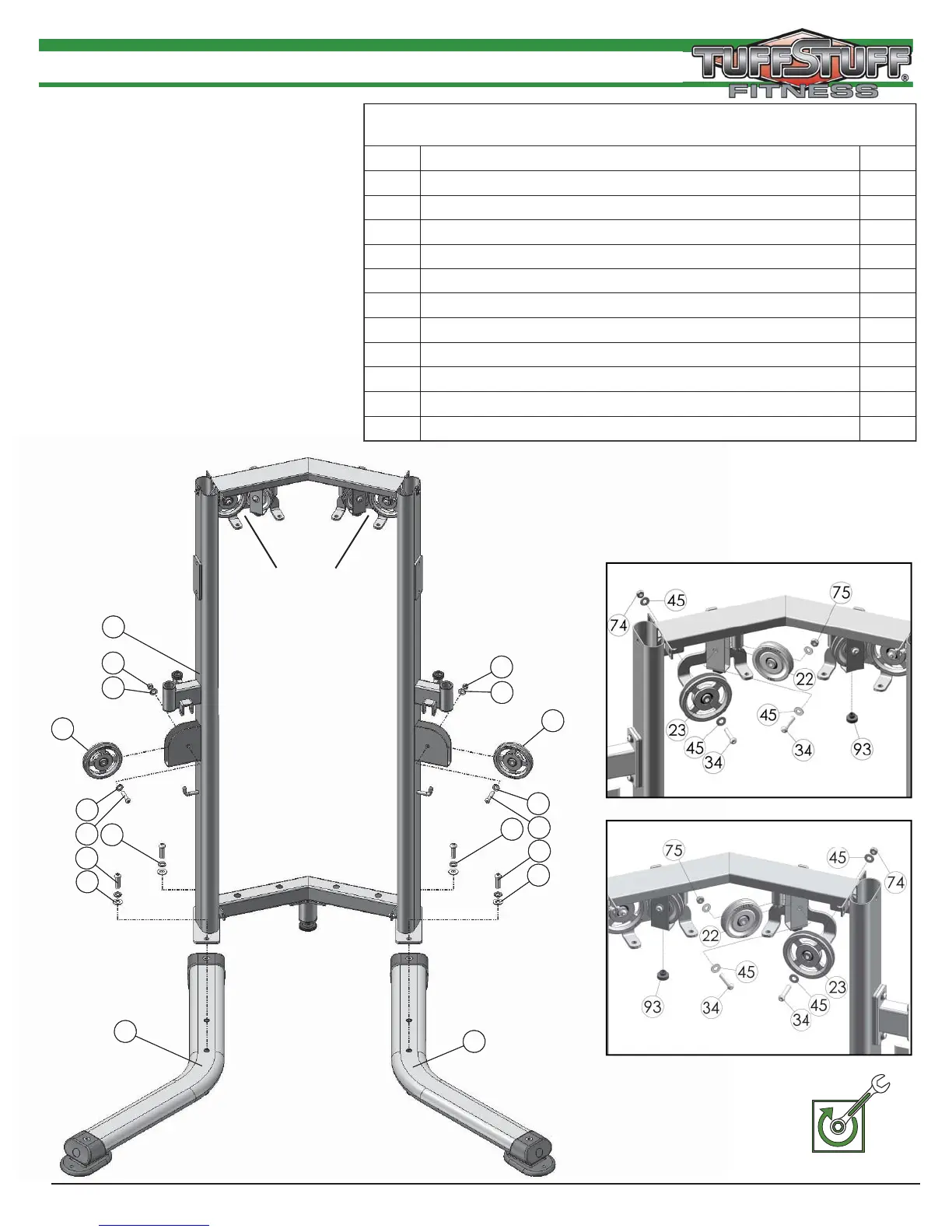

Step 1
11
WARNING
IT IS RECOMENDED TO HAVE ANOTHER PERSON ASSIST
YOU WITH THE INSTALLATION OF THIS UNIT.
Assembly List
Item # Description Qty.
10 LEFT STABILIZER 1
14 RIGHT STABILIZER 1
17 WEIGHT STACK FRAME 1
22 ALUMINUM PULLEY 3/8 X 1 X 3 1/2 2
23 ALUMINUM PULLEY 3/8 X 1 X 4 1/2 4
30 BUTTON HEAD SOCKET CAP SCREW GR-8 Z/P 1/2-13 X 1 1/2 4
34 BUTTON HEAD SOCKET CAP SCREW GR-8 Z/P 3/8-16 X 1 3/4 6
44 FLAT WASHER SAE Z/P 1/2” 4
45 FLAT WASHER SAE Z/P 3/8” 12
74 NYLON INSERT JAM LOCK NUT GR-8 Z/P 3/8-16 6
88 SPLIT LOCK WASHER Z/P 1/2” 4
)
FULLY FASTEN
FIG A
FIG B
SEE FIG A AND B
