MFT-2700 Multi-Funtional Trainer
11

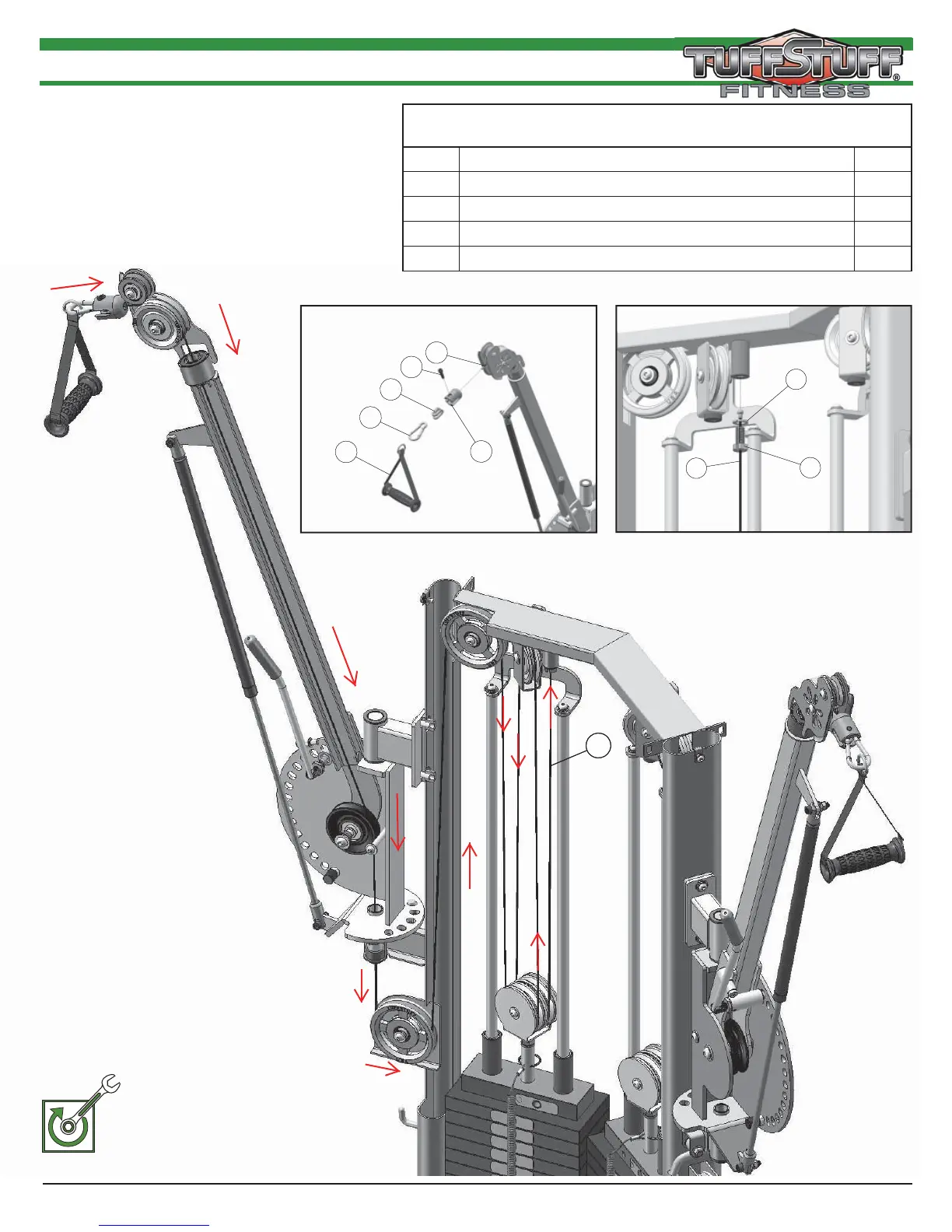

Step 4 Cable Routing
BEGINNING POINT
38
85
90
47
83
1
38
85
90
47
83
1
FIG. A
88
87
1
88
87
1
FIG. B
)
FULLY FASTEN
Assembly List
Item # Description Qty.
1 MAIN CABLE 1/8” 2
38 CONTOUR ERGO HANDLE LONG STRAP 2
47 HARD PVC CABLE STOPPER 1 1/2 RD X 2 2
83 SHOULDER BOLT Z/P 3/8 X 3/4 2
NOTE:
1. USE WIRE TO CONDUCT THE CABLE.
2. MAKE SURE THE CABLE RUNS BETWEEN THE
PULLEYS.
3. SOME PARTS CUT/NOT SHOWN FOR
CLARITY.
